Chapter 6 — Menu Information
Keypad Operation
The menu is navigated by using the left and right arrow buttons. If a reference level is
available for setting, the up and down arrow buttons adjust the value. To exit the Operate
Menu to access the other menus, depress the ENTER button for 2 seconds. While in the other
menus, if there is no keypad activity, the display will return to the Operate Menu after one
minute. Figure 6-2 illustrates the Operate Menu button function.
LIT-1201828

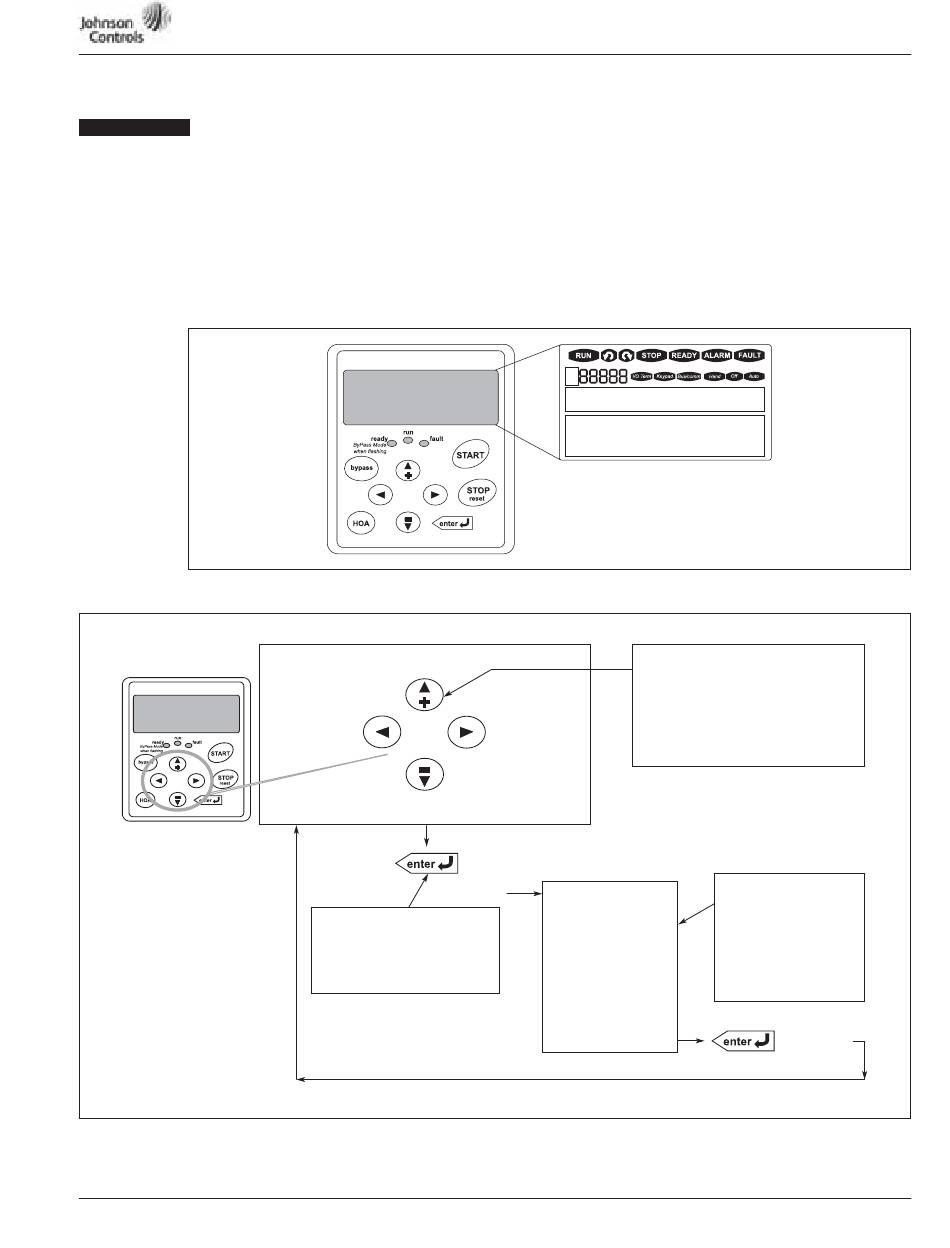

Figure 6-1: Keypad and Display

One Touch Operate Menu Navigation
Freq Ref Up
Monitor Display
Navigation Left
Freq Ref Down
Password ?
Exit Operate Menu by navigating
to Programming display and
pressing ENTER button or simply
press ENTER button 1 second.
Acknowledgement password
value if defined.

Figure 6-2: Operate Menu Navigation

For more information visit: www.johnsoncontrols.com
Note!
HOA OFF-MODE OR HAND-MODE
• Up and down arrows are used to
adjust speed setpoint
HOA AUTO-MODE
Monitor Display
• Up and down arrows are used to
Navigation Right
adjust PI-Setpoint
Programming Menu *
M1 Parameters
M2 Keypad Control
M3 Active Faults
M4 Fault History
M5 System Menu
M6 Expander Boards
M7 Monitor
Return to Operate
* See User Manual (LIT-1201828) for complete parameter list.
VSD Series Drives User Manual
Note!
While in Programming
Menu the display will
automatically return to
default Operate Menu
display after 1 minute
of inactivity. (Time can
be adjusted with
Parameter P5.6.3).
or time delay
6-1
