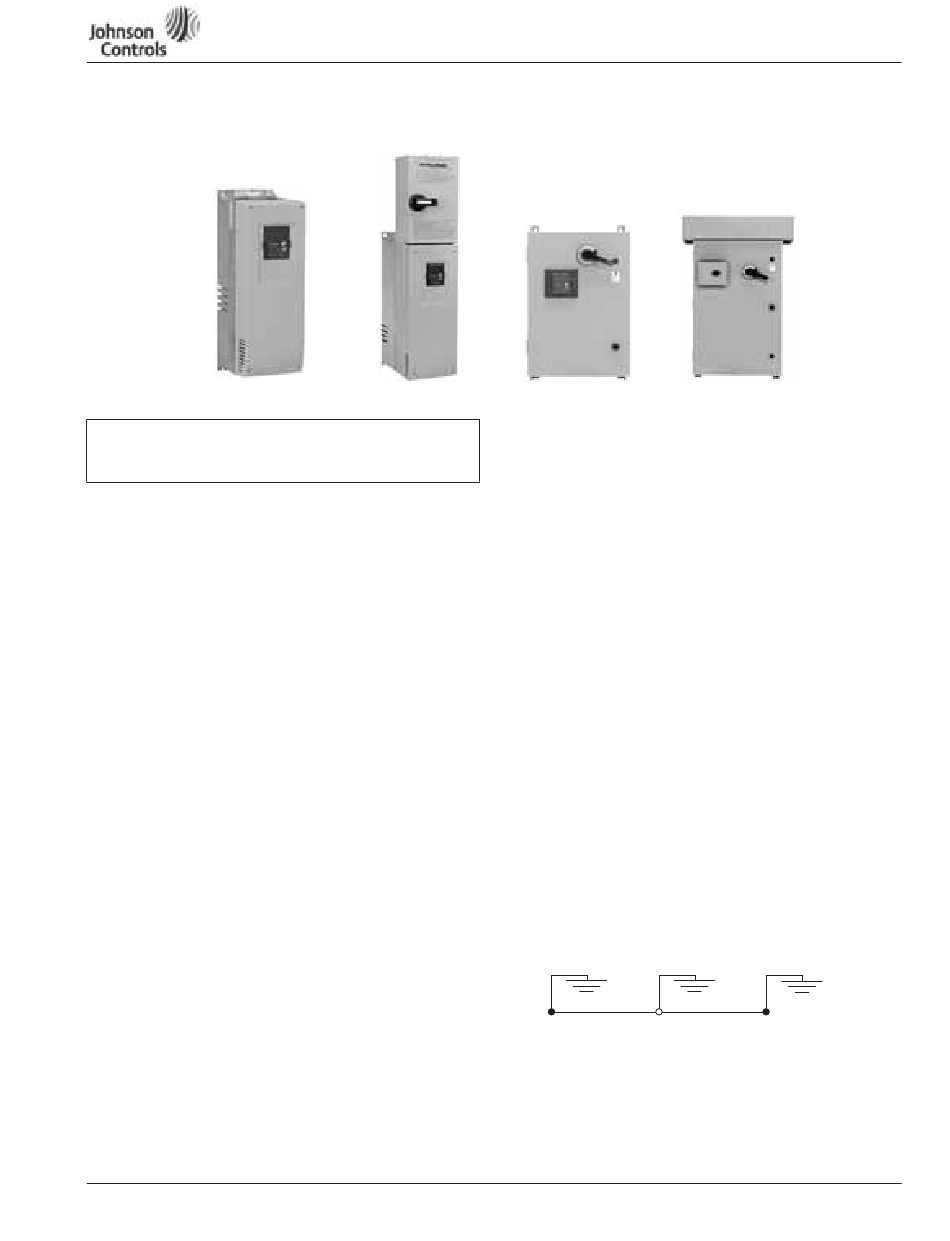

November 2009
Open Drive
IMPORTANT: This guide is intended to provide a quick reference to
the VSD Series drive's Application Software features for start-up,
programming and service. It does not replace the need to thoroughly
read and understand the User Manual.

Table of Contents

Description
NEMA Type 1/12 Open Drives (1 - 250 HP) . . . . . . . . . . . . . .
Enclosed NEMA Type 12/3R . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix A - Main Control Board Wiring . . . . . . . . . . . . .
Using 4 - 20 mA Control Signal . . . . . . . . . . . . . . . . . . .
Using PID Duct Static Control Signal . . . . . . . . . . . . . . .
Appendix D - Bypass Wiring Diagram . . . . . . . . . . . . . . . .
Appendix E - Keypad Navigation . . . . . . . . . . . . . . . . . . . .
Appendix F - Main Menu Navigation . . . . . . . . . . . . . . . . .
Appendix G - Start-Up Wizard . . . . . . . . . . . . . . . . . . . . . . .
Appendix H - Static Checking . . . . . . . . . . . . . . . . . . . . . . .
Appendix I - Fault and Warning Codes . . . . . . . . . . . . . . . .
Technical Support Phone Numbers
Branch: 800-281-3792 (Option 1)
Third Party (ABCS/DIST): 800-445-4757 (Option 1)
LIT-1201858
Eaton's Technology
VSD Series Quick Start Guide
Bypass Drive
Page
10
15
16
17
18
19
20
21
25
27
For more information visit: www.johnsoncontrols.com
NEMA Type 12
General
Upon receipt of the unit, verify that the catalog number and unit
options stated on the shipping container match those stated on
the order/purchase form.
Inspect the equipment upon delivery. Report any carton damage
to the carrier prior to accepting the delivery. Have this
information noted on the freight bill. Johnson Controls is not
responsible for damage incurred in shipping.
2
Unpacking
5
Remove all packing material from the unit. Be sure to remove all
packing material from lug location. Also, make sure no packing
material is left behind that would block the airflow to the fan.
Check the unit for any signs of shipping damage. If damage to
the product is found after unpacking, report it to the freight
company. Retain the packing materials for the carrier to review.
Storage
It is recommended that the unit be stored in its original shipping
box/crate until it is to be installed.
The unit should be stored in a location where:
•
The ambient temperature is between -40°F and 158°F
(-40°C and 70°C)
•
The relative humidity is between 0% and 95%,
non-condensing
•
The environment is dry, clean, and non-corrosive
•
The unit will not be subjected to high shock or vibration
conditions
Mandatory Ground Wiring (See Appendix D on Page 18)
Be sure to pull low impendance ground wiring from customer
power to drive and ground wire from drive to motor.
Utility
Drive
VSD Series Quick Start Guide
NEMA Type 3R
Motor Ground
(Inside Motor Conduit Box)
1
