5
Keypad and Display
The keypad and display are used for the following:
•
Displaying the operating status of the drive
•
Displaying a fault or trip code
•
Reading and changing parameter values
•
Stopping, starting and resetting the drive

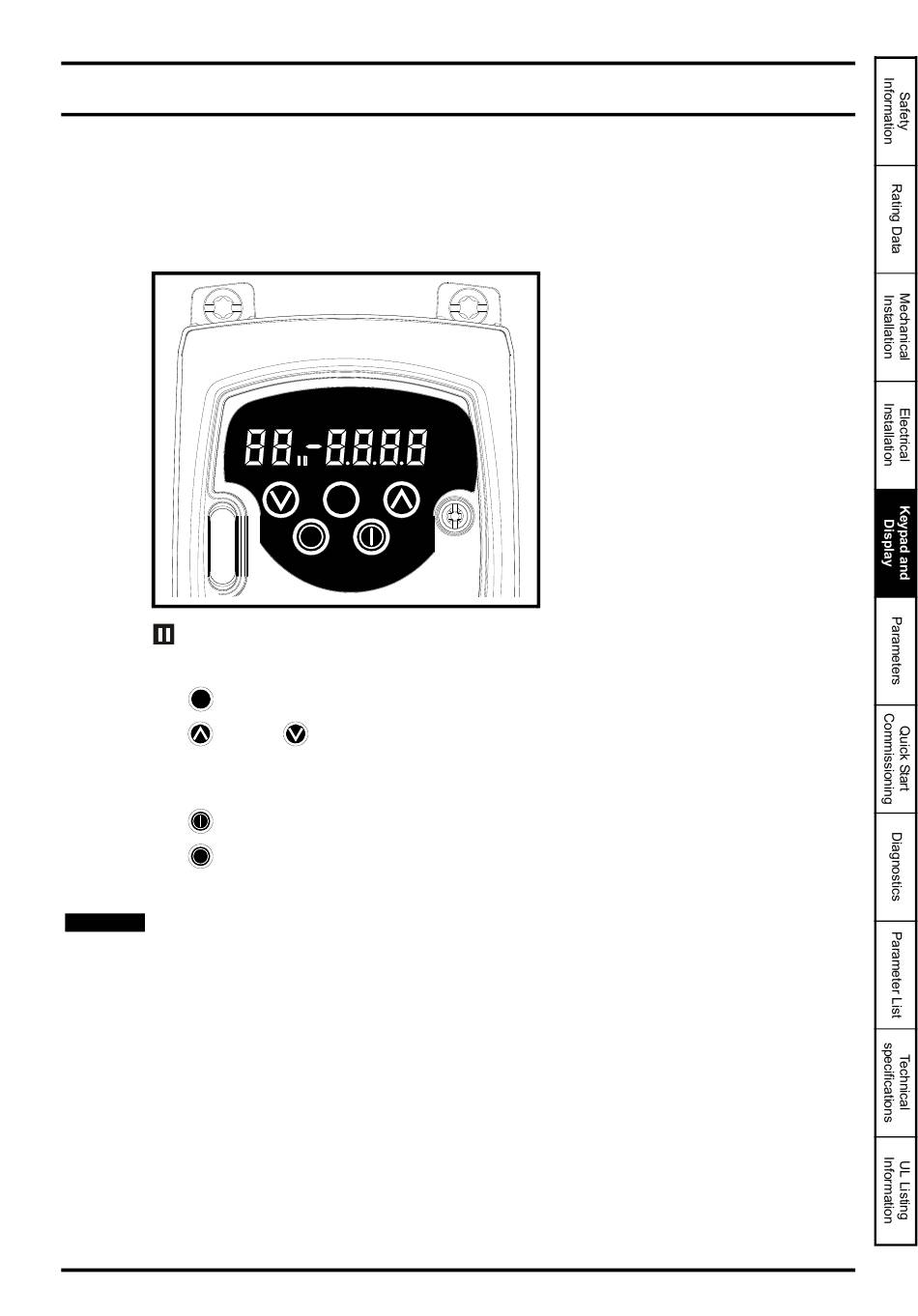

Figure 5-1 Keypad and display
on the display indicates if motor map 1 or 2 is selected.
5.1
Programming keys
The
MODE key is used to change the mode of operation of the drive.
M
The
UP and
keypad mode, they are used to increase and decrease the speed of the motor.
5.2
Control keys
The
START key is used to start the drive in keypad mode.
The
STOP/RESET key is used to stop and reset the drive in keypad mode. It can
also be used to reset the drive in terminal mode.
It is possible to change parameter values more quickly.
NOTE
VFD67 Size A to D Getting Started Guide
Issue Number: 1
M
DOWN keys are used to select parameters and edit their values. In
www.johnsoncontrols.com
19
