214 Setpoint Scale Minimum
Setpoint scaling minimum
215 Setpoint Scale Maximum
Setpoint scaling maximum
Setting value limits 0 ≤ ID214 ≤ ID215 ≤ ID102. If ID215 = 0, scaling is set OFF.
216 Intlk Stop Mode
Coasting:
0
Ramp:
1
15-6
Output
Frequency
Max. Freq = 100%
ID102
ID215
ID214
0V
0 (4) mA

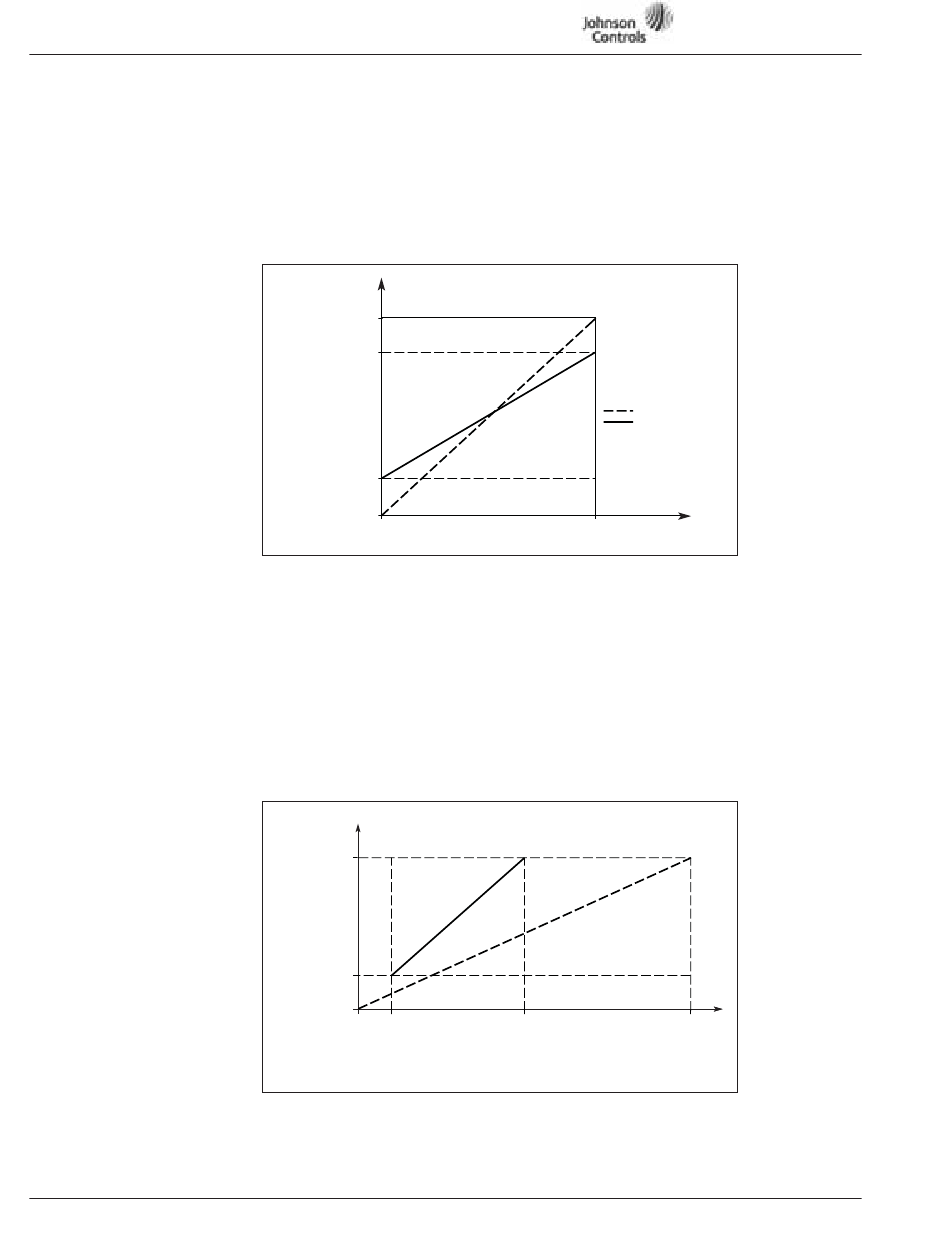

Figure 15-5: Setpoint Scaling

The motor coasts to a halt without any control from the drive, after the
Stop command.
After the Stop command, the speed of the motor is decelerated
according to the set deceleration parameters. If the regenerated energy is
high it may be necessary to use an external braking resistor for faster
deceleration.
Max.
Sensor Max.
ID1108
Sensor
Scaled
Range
Sensor Min.
ID1107
0
0% 10% (1V)
ID217
(0V or 0 mA)
AI-1 Min.

Figure 15-6: Sensor Scaling
