Menu Navigation:
Menu application dependent.
For navigation of Operate Menu (M8), see Figure 6-2 on Page 6-1.
LIT-1201828
Up Arrow - The up arrow
advances to the next
menu item.
For example, pressing the
up arrow once will
advance from M1 to M2.
Down Arrow - The down
arrow backs up to the
previous menu item.
For example, pressing the
down arrow once will back
up from M2 to M1.
Right Arrow - The right
arrow will advance to the
next level in the menu.
For example, pressing the
right arrow once will
advance from M2 to R2.1.
Left Arrow - The left
arrow will back up one
level in the menu
structure.
For example, pressing the
left arrow once will back
up from R2.1 to M2.

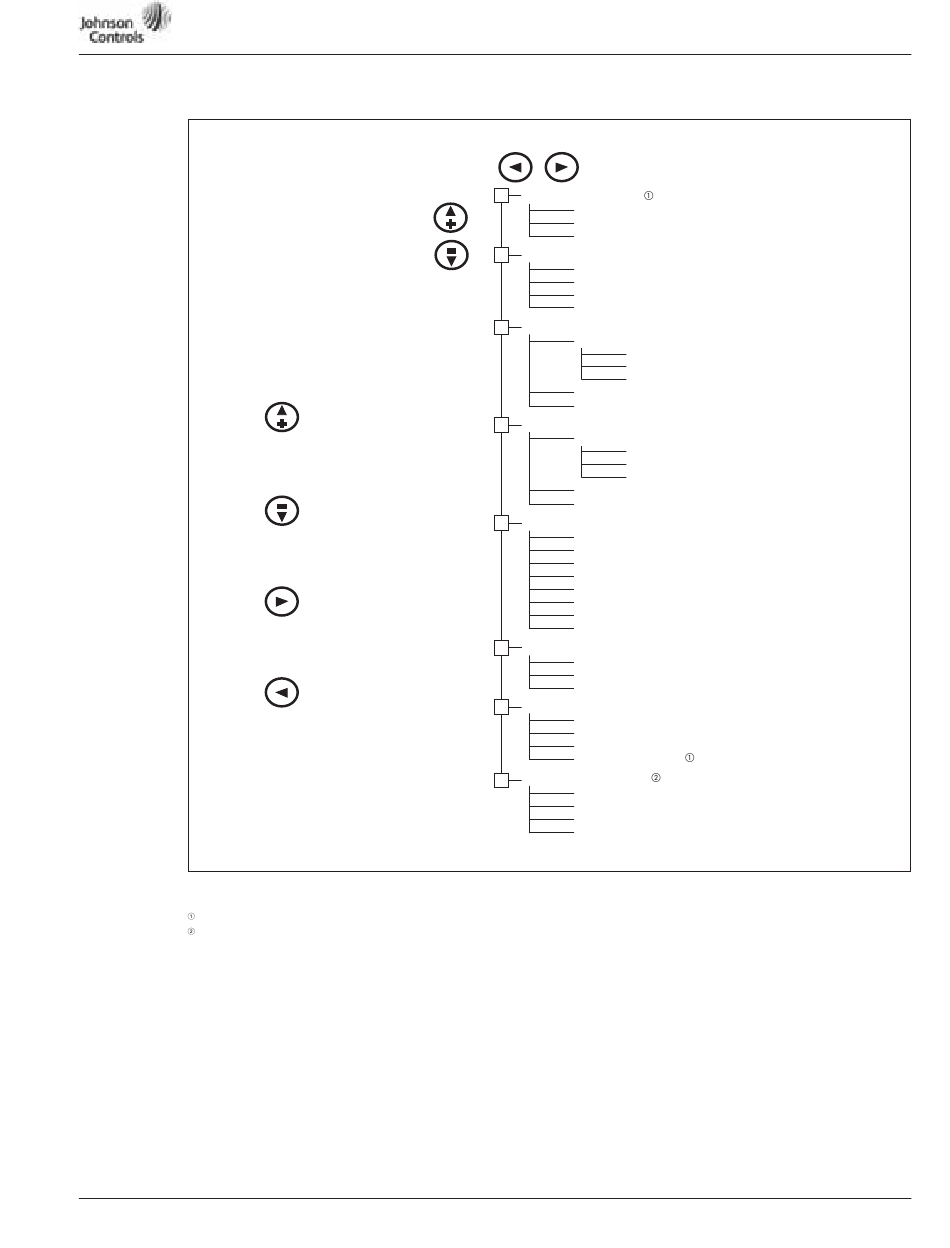

Figure 6-3: Main Menu Navigation

For more information visit: www.johnsoncontrols.com
+
M1 Programming
G1.1 Quick Setup
. . .
G1.x Field Bus
+
M2 Keypad Control
R2.1 Speed Setpoint
P2.2 Keypad Direction
. . .
P2.5 PI-StPt Default
+
M3 Active Faults
A3.1 Active Fault 1
T3.1.1 Operation Days
. . .
T3.1.13 Zero Speed
. . .
A3.x Active Fault x
+
M4 Fault History
H4.1 Most Recent Fault
T4.1.1 Operation Days
. . .
T4.1.13 Zero Speed
. . .
H4.1.x Oldest Saved Fault
+
M5 System Menu
S5.1 Language
S5.2 Application
S5.3 Copy Parameters
S5.4 Compare Parameters
S5.5 Security
S5.6 Keypad Settings
S5.7 Hardware Settings
S5.8 System Information
+
M6 Expander Boards
G6.1 Slot A Board
. . .
G6.5 Slot E Board
+
M7 Monitor
V7.1 Output Frequency
V7.2 Actual Speed
. . .
G7.26 Multimonitor
+
M8 Operate Mode
O1 Output Frequency
O2 Actual Speed
. . .
Ox . . .
VSD Series Drives User Manual
P5.6.1
Default Page
1
2
3
4
5
6
7
8
6-5
