VSD Series Drives User Manual
Catalog Numbering System

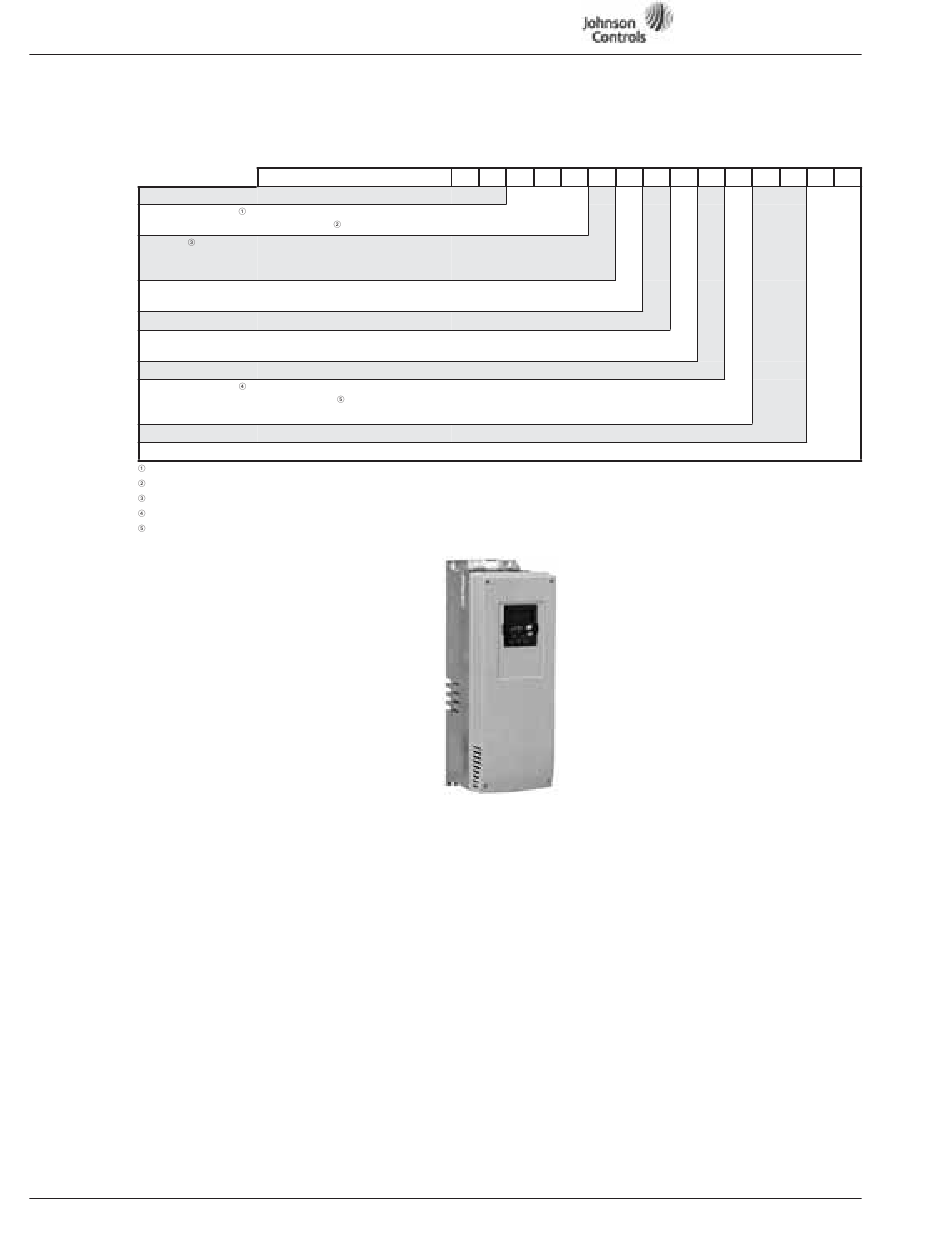

Table 1-1: VSD Series Open Drives Selection Chart

Base Product
Horsepower (VT)
Voltage
Enclosure Rating
Enclosure Style
Revision #
Separator (–)
Communications
Option 1
Option 2
All horsepower ratings are Variable Torque (VT).
3 to 200 @ 575V; 1-1/2 to 250 hp @ 480V; 1 to 100 hp @ 230V.
Voltage Ratings: 230V = 208 – 240V; 480V = 380 – 500V; 575V = 525 – 690V.
N2/XT Communications selectable on drive keypad.
SA = Sensor Actuator Bus for FEC Interface.
1-2
Code Number
VS = Variable Speed Drive Prefix
001 = 1.0 hp to
250 = 250 hp
2 = 230V (or 208V)
4 = 480V
5 = 575V
1 = TYPE 1
2 = TYPE 12
0 = None (Open Drive)
A = Rev 1 (Americas)
C = Rev 1 (Canada)
0 = None
N = N2/XT/SA Bus Comm (N2 by default)
®
L = L W Network
ON ORKS
00 = None
00 = None
Johnson Controls Open Drive
TYPE 1 & TYPE 12, 208 – 240V, 380 – 500V, 525 – 690V
For more information visit: www.johnsoncontrols.com
V S
Eaton Technology
Powered by
November 2009
0 A - N 0 0 0
LIT-1201828
