Optional NEMA Type 3R Hood
(Hood not present on
NEMA Type 12 drive)
Keypad Cable
50 hp NEMA Type 3R
480V AC Variable
Frequency Drive
(behind drive cover)
Optional 3rd Contactor S1 Switch
(provided for drive isolation)
Note: You will need to consult the electrical schematic supplied with the drive and the appropriate wiring diagram in Appendix D.
Table 5-7: VSD Series NEMA Type 12 Enclosed IntelliPass Drive
Dimensions
Drive Frame
Horsepower (VT) Size
208V, 1 – 15 hp FR4 – FR6
230V, 1 – 15 hp
FR4 – FR6
480V, 1 – 30 hp
FR4 – FR6
575V, 3 – 30 hp
FR6
208V, 20 – 30 hp FR6 – FR7
230V, 20 – 30 hp
480V, 40 – 75 hp
575V, 40 – 50 hp
208V, 40 – 60 hp FR8
230V, 40 – 60 hp
480V, 100 – 150 hp
Floor Stands available on Box C only and can be purchased and shipped separately
as kit.
NEMA Type 12
LIT-1201828
Enclosed NEMA Type 12/3R
Circuit Breaker
Handle

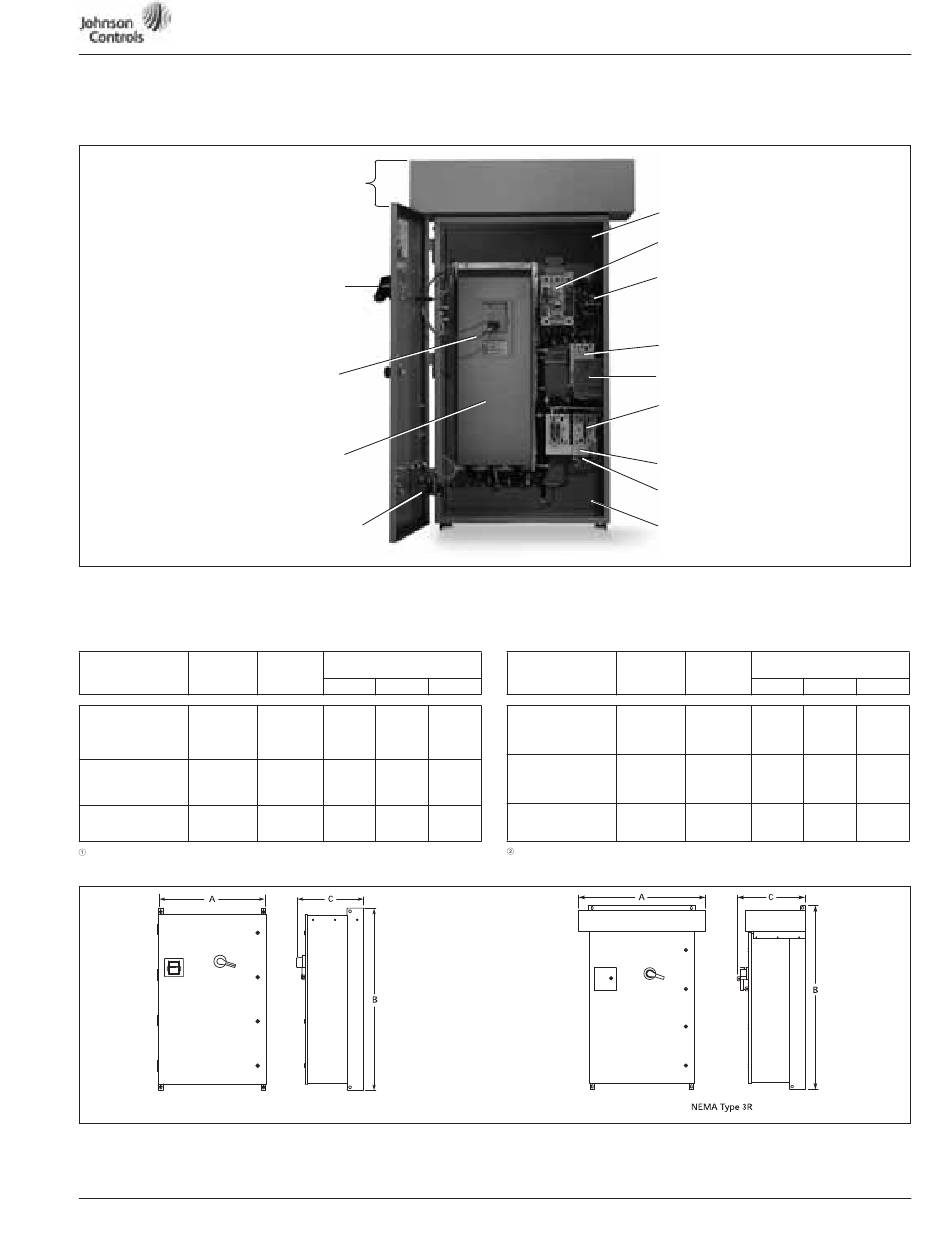

Figure 5-4: Identification of NEMA Type 12 and NEMA Type 3R Components
Enclosure Approximate Dimensions in
Box Inches (mm)
A B C
A 16.92 29.00 18.60
(429.8) (736.6) (472.4)
B 20.92 40.00 19.10
(531.3) (1016.0) (485.1)
C 30.92 52.00 19.10
(785.3) (1320.8) (485.1)

Figure 5-5: VSD Series Enclosed Drive Dimensions

For more information visit: www.johnsoncontrols.com
Power Ground Stud
Circuit Breaker
24V DC Power Supply
Optional 3rd Input Contactor
Space Heater (not on
electrical schematic)
Output & Bypass Contactor
Contactor Overload
24V DC Motor Overload
Terminal Block
Motor Ground Stud
Table 5-8: VSD Series NEMA Type 3R Enclosed IntelliPass Drive
Dimensions
Drive Frame
Horsepower (VT) Size
208V, 1 – 15 hp FR4 – FR6
230V, 1 – 15 hp
480V, 1 – 30 hp
575V, 3 – 30 hp
208V, 20 – 30 hp FR6 – FR7
230V, 20 – 30 hp
480V, 40 – 75 hp
575V, 40 – 50 hp
208V, 40 – 60 hp FR8
230V, 40 – 60 hp
480V, 100 – 150 hp
Floor Stands available on Box C only and can be purchased and shipped separately
as kit.
VSD Series Drives User Manual
Enclosure Approximate Dimensions in
Box Inches (mm)
A B C
A 21.05 33.00 19.57
(534.7) (838.2) (497.0)
B 26.31 46.09 20.07
(668.3) (1170.7) (509.9)
C 37.73 58.09 20.08
(958.3) (1475.5) (510.0)
