Tnc-P Connector Used For Idu If In/Out - NEC iPasolink 200 Manual

CABLE TERMINATION
Procedure 6-2

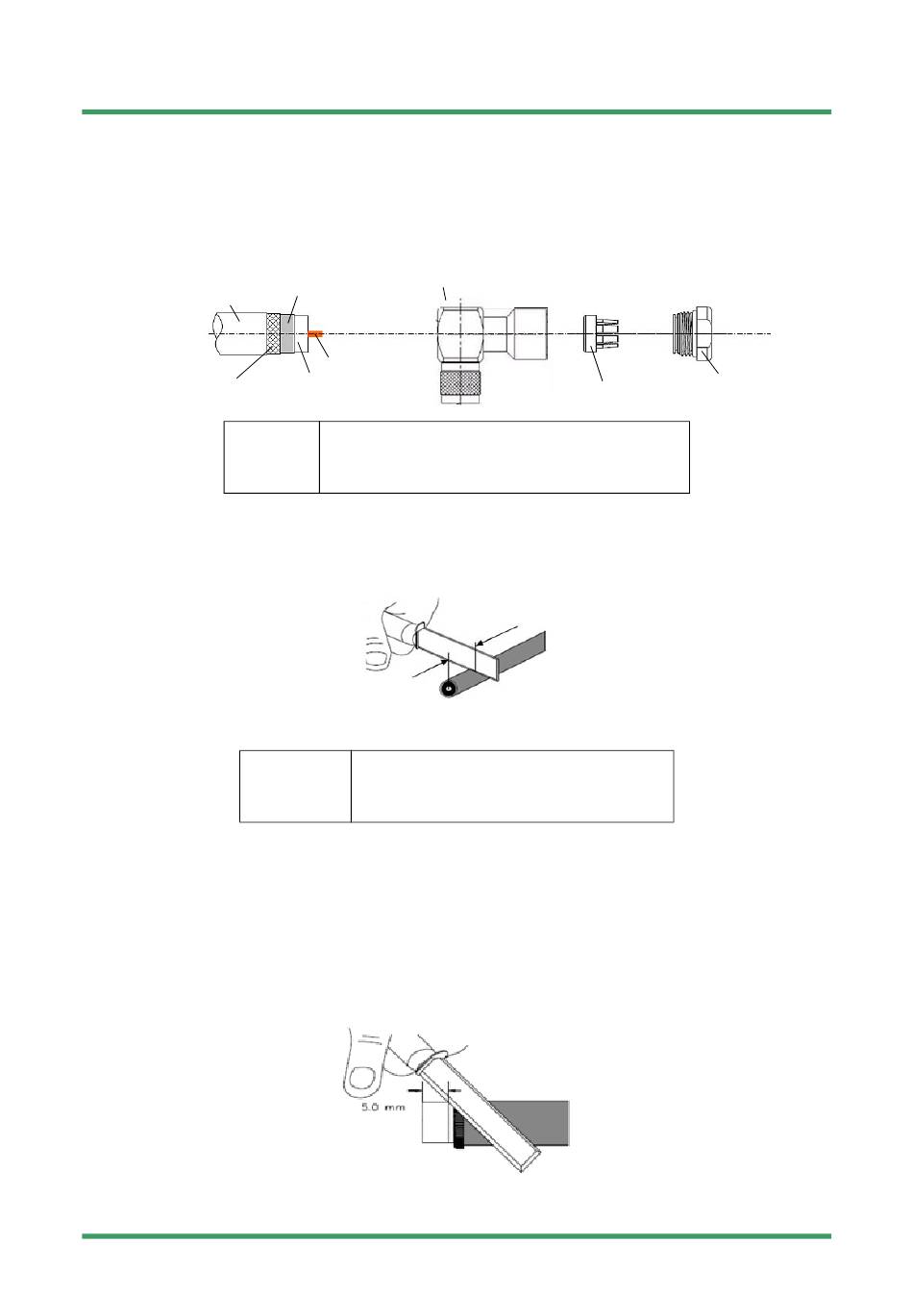

Outlines of parts
Cable jacket
Braided wire
Tools
1 Remove of Jacket of cable
Remove 6.5 mm of Jacket only, exposing braided wire.
Note
Tools
2 The braided wires processing-1
(1) Fold the braided wire around jacket.
(2) Remove 5.0 mm of insulator.
(3) Remove all insulator/tape residue from the center conductor.
Installation
Submission Prohibited
NEC Internal Use Only

TNC-P Connector used for IDU IF IN/OUT

(L-angle: 300PTR-C-NC)
[Applicable cable: 5D-FB-E]
Connector body
Aluminum tape
Center conductor
Insulator
• knife, cutter, nipper, tweezers, file, comb,
measure, clearance gauge, etc.
• spanner, torque spanner; 16 mm, 15 mm
Do not damage the braided wire.
• knife
• cutter
• measure, etc.
Parts A
A
6.5 mm
6-11
Parts B
B
NWD-107460-02E
