6-30
4

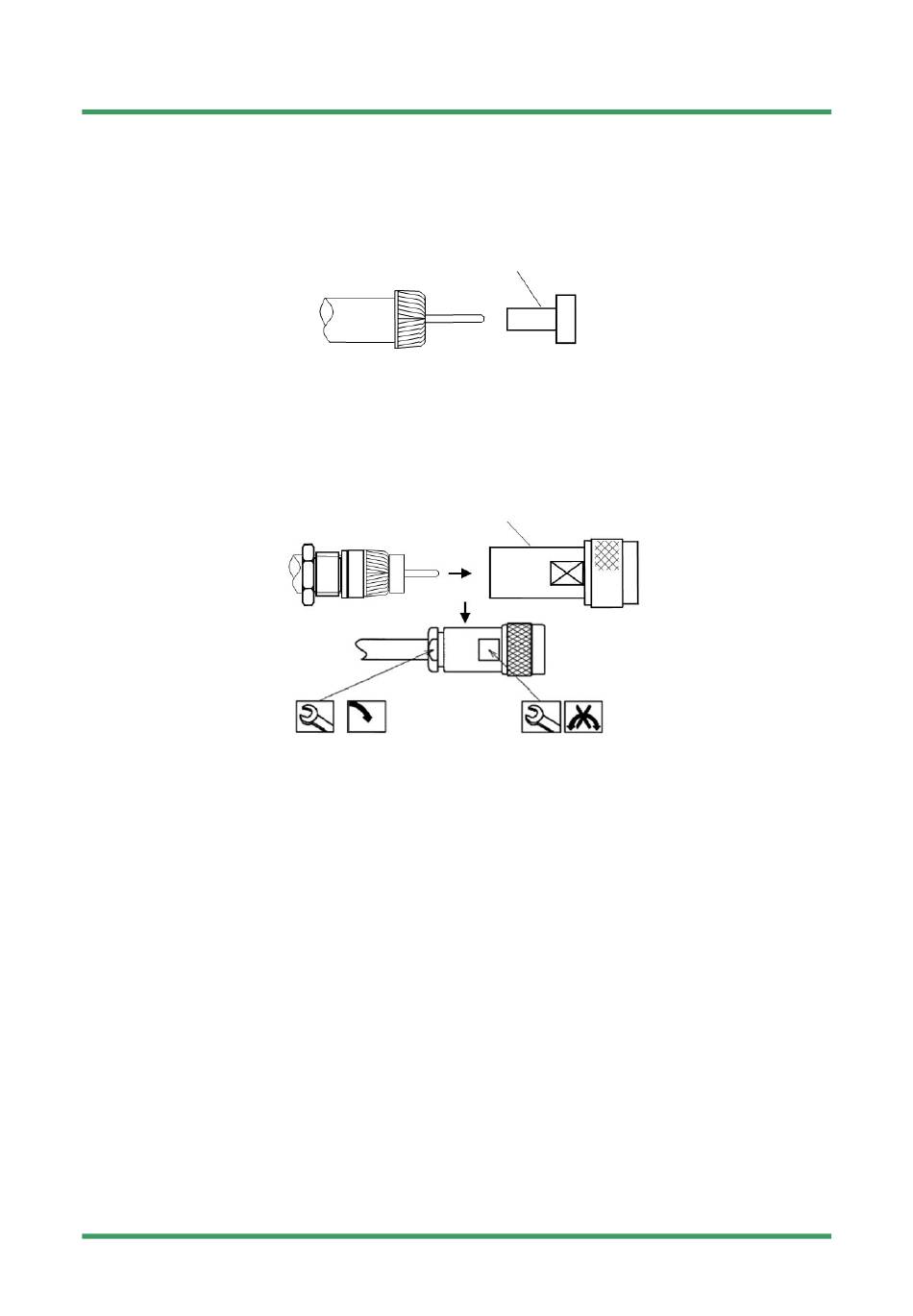

Connector assembly
(1) The clamp2 is inserted between the aluminum tape and the braided wire.
(2) The cable center conductor must be straight and aligned with the connector
Notes
NWD-107460-02E
Submission Prohibited
NEC Internal Use Only
inner contact. Insert the cable into the connector body until stopped; the center
conductor must be inserted into the connector inner contact fingers. Tighten
the connection to the torque value of 9 to 11 N·m.
Connector body
16 mm 9-11 N·m
1
When inserting, do not put the chip which is braided wire inside the
central conductor and the connector body.
2
Do not turn connector body, turn clamp nut attachment.
Clamp2
16 mm
CABLE TERMINATION
