5-54
5.2.3

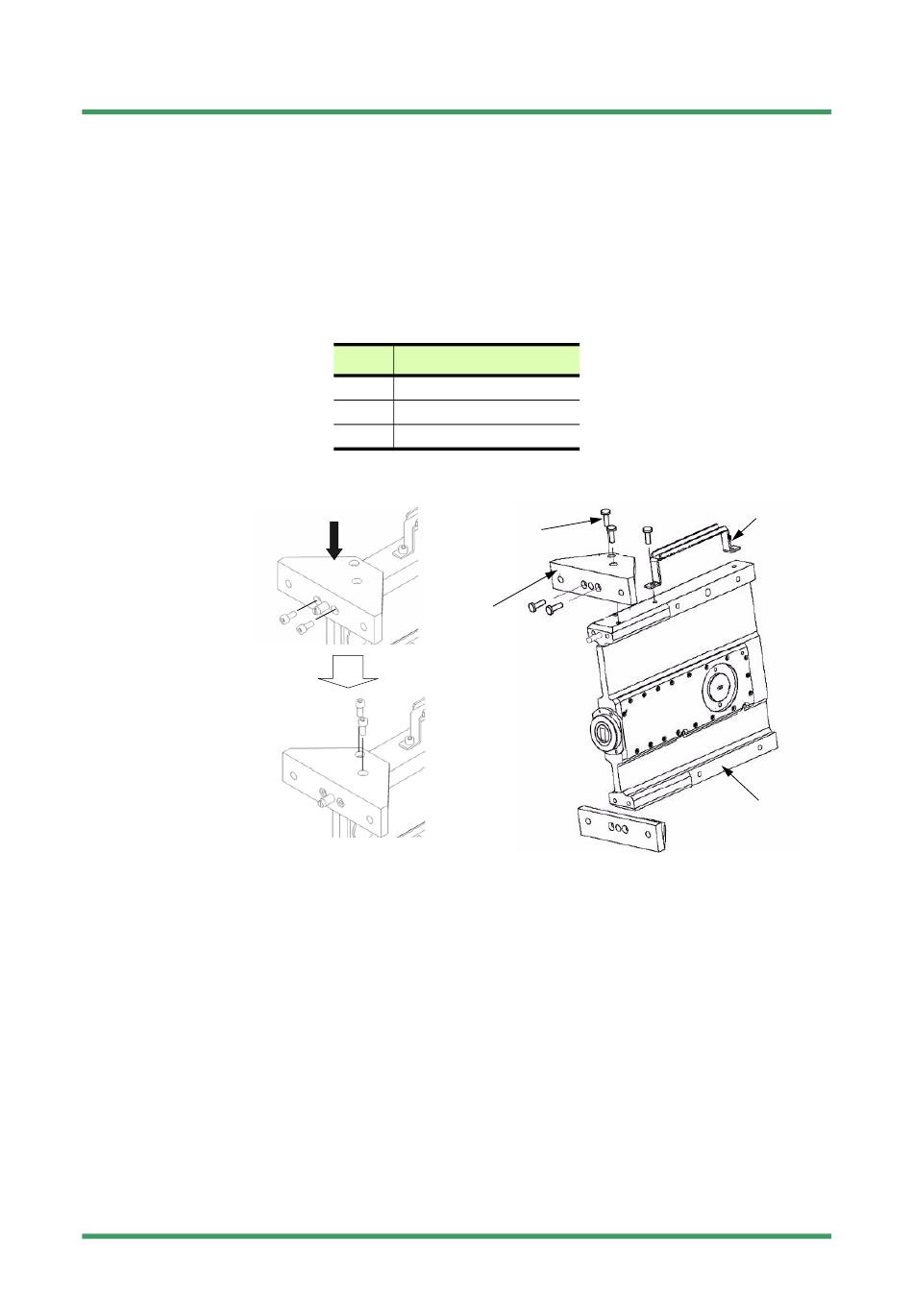

For Waveguide Connection with Hybrid

18/23 GHz Hybrid (FI)

This Hybrid is designed to be connect to waveguide with interface for direct
mounting of ODU. (Waveguide flange type: Hybrid side-PBR220, Waveguide side-
UBR220.)
1 Hybrid assembly,
NWD-107460-02E
Submission Prohibited
NEC Internal Use Only
Tightening Torque
M3 0.6 N·m ±10%
M5 3.0 N·m ±10%
M6 4.0 N·m ±10%
PUSH
Hexagon socket
head cap screw
M5 × 12 (10 ea)
Bracket
ODU MOUNTING
Handle
Hybrid
Installation
