IDU MOUNTING

4.1 SFP Module Installation

The Small Form-factor Pluggable (SFP) is a compact, hot-pluggable transceiver
designed to support for Gigabit Ethernet (GbE) or SDH (STM-1 optional) in the
iPASOLINK.
It offers three options of SFP modules as follows:
1)
2)
3)
The SFP modules also accept LC fiber connectors with Polished Connector (LC-PC)
or Ultra Polished Connector (LC-UPC).
The SFP modules purchasing from NEC are recommendable to use.
Installation
Submission Prohibited
NEC Internal Use Only
Single Mode Fiber (SMF): This SFP complies with GbE along with SDH and
Fiber Channel. The SFP operates with 1310 nm laser transmitter and has a
duplex LC connector.
Multi Mode Fiber (MMF): This SFP complies with 1.25 Gbps 1000 Base-SX
Gigabit Ethernet. The SFP operates with 850 nm laser transmitter and has a
duplex LC connector.
Electrical SFP

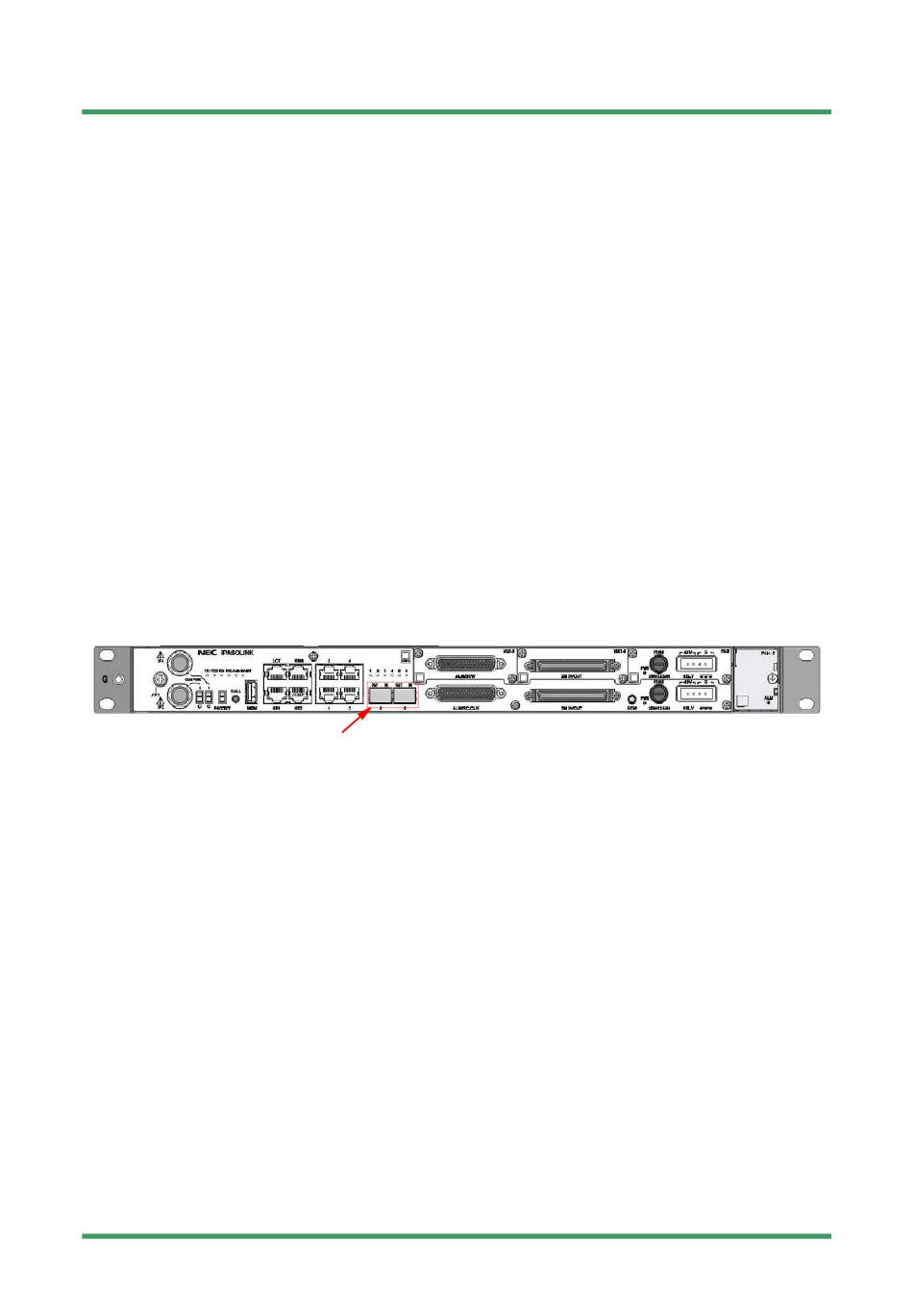

Connectors for the SFP module.

4-3
