Bracket (With Adapter); Holder-2; M8 Hexagon Nut (Ss); M8 Flat Washer (Ss) - NEC iPasolink 200 Manual

ODU MOUNTING
2 Fix the two Holder-1 to the Bracket at four bolts,
3 Mount the Bracket to the pole, point to the opposite station and tighten it with
four Stud bolts,
Flat washer M8 (4 ea)
Hexagon nut M8 (8 ea)
Note Tightening torque is
12 N·m ±10%.
Holder-2 (2 ea)
Installation
Submission Prohibited
NEC Internal Use Only

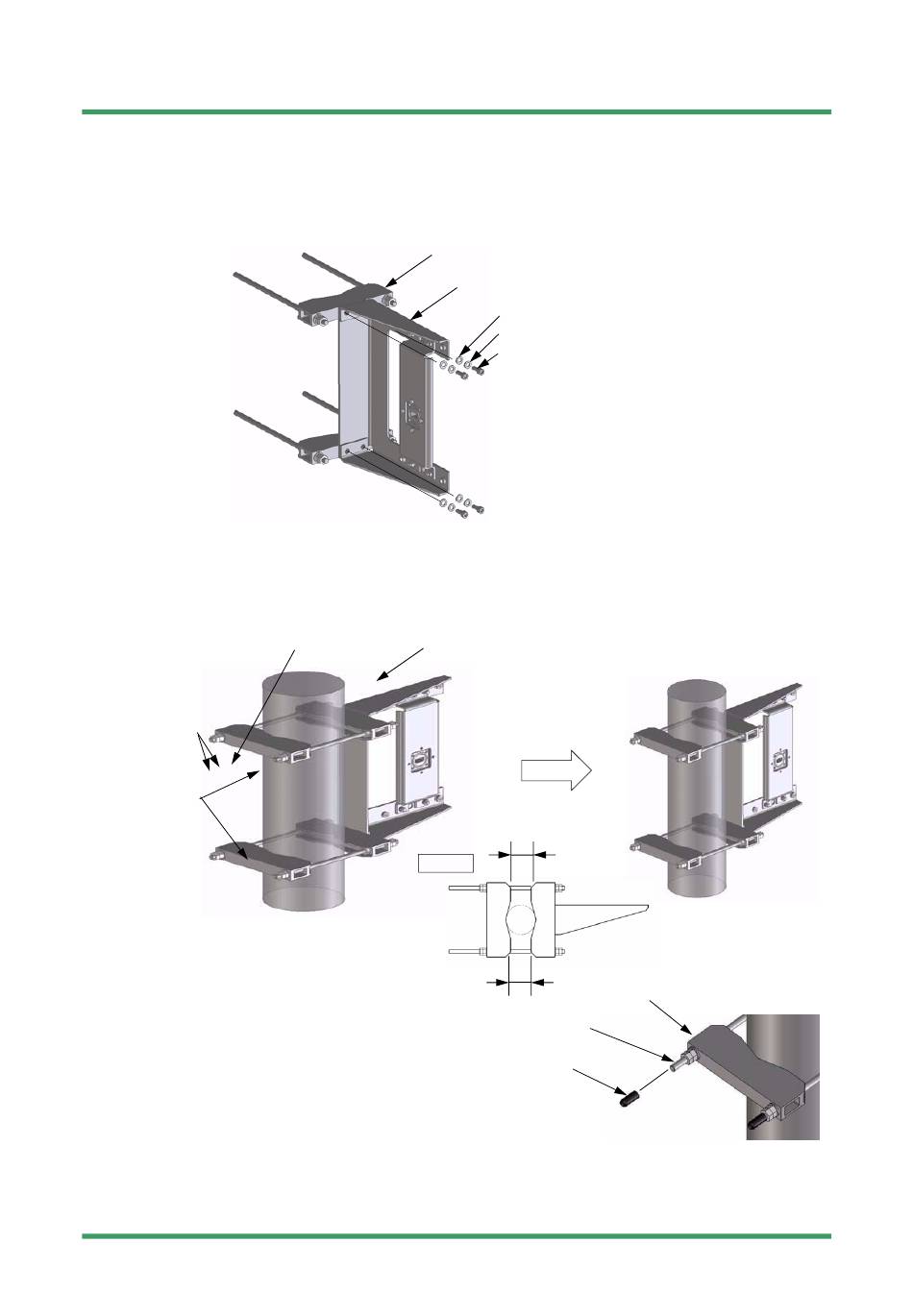

Assembly of the Bracket
Holder-1 Assembly

Bracket (with Adapter)

Installation to the Pole
Pole (φ 48.5 to 114.3 mm)
A = B
Flat Washer M6 (4 ea)
Spring Lock Washer M6 (4 ea)
Hexagon Socket Head Screw M6×16 (4 ea)
Note Tightening torque is
4 N·m ±10%.
A
B
Holder
Bolt end
Cap (4 ea)
