6-48
7

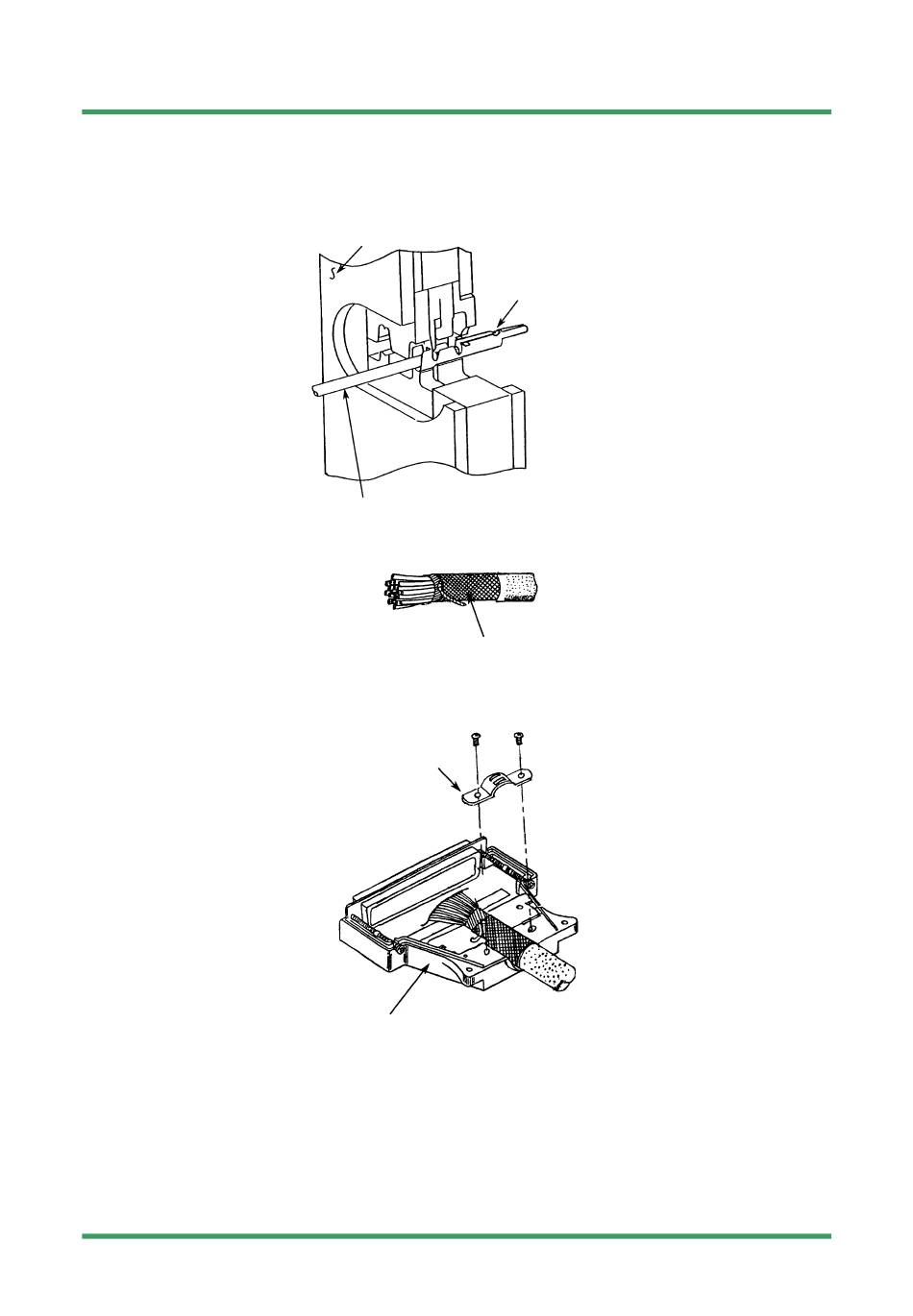

Recheck that the wire position is as shown in step 5 before crimping the socket
contact (see illustration below),
8
Wind the metallic shield tape over the braided shield,
9
Set the cable into the plug case as shown in figure below. Then, fix the cable
using the cable clamper and two screws,
10 Referring to circle A, fix the drain wire with screw,
NWD-107460-02E
Submission Prohibited
NEC Internal Use Only
Wire side
Wire
Metallic shield tape
Cable clamper
Plug case
Socket contact
CABLE TERMINATION
Installation
