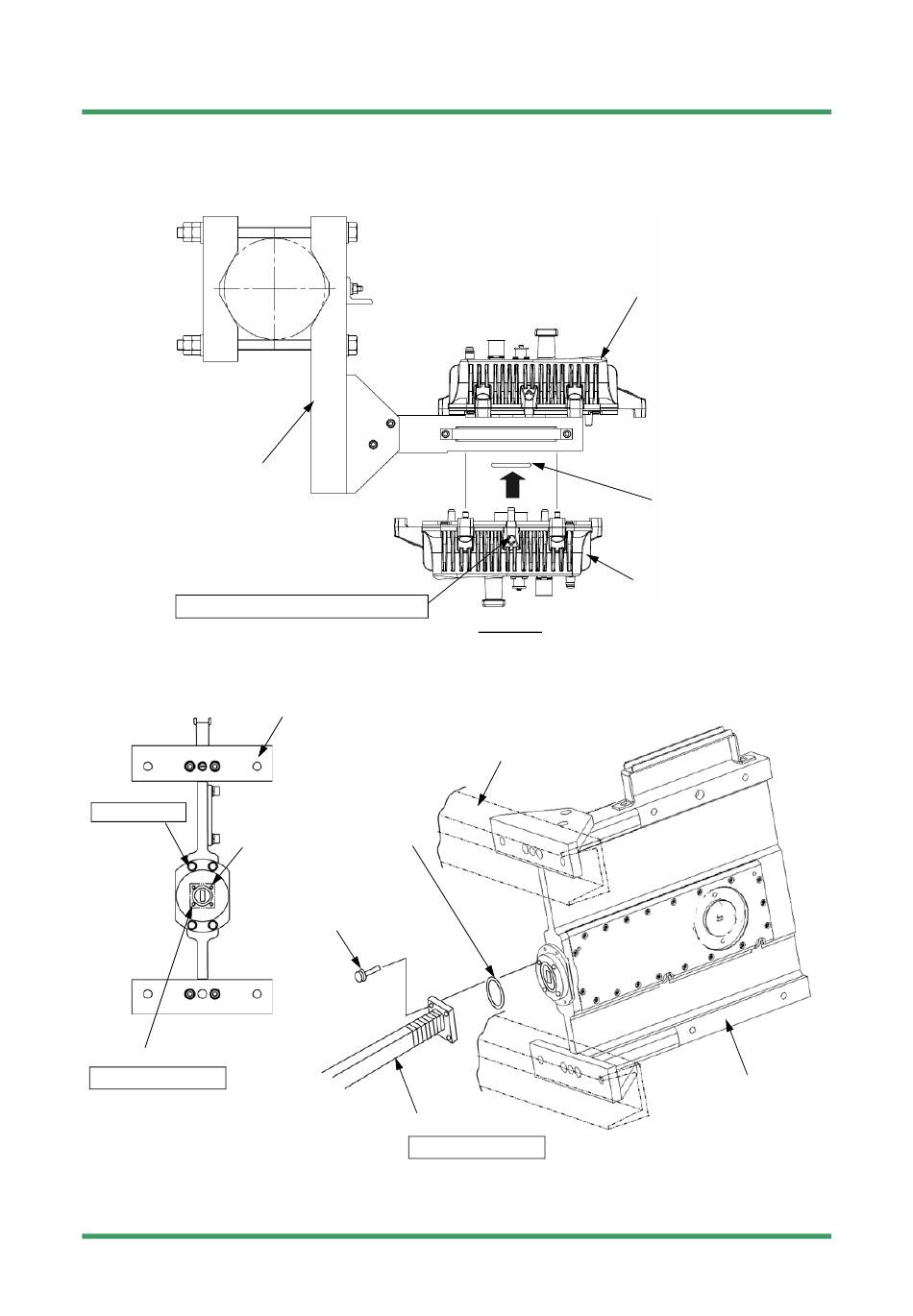

4 Attachment of standby ODU,
Pole mount
ODU should be attached by turning "V" up.
5 Connection of waveguide,
Do not Remove
*
Waveguide flange
Flange type PBR220
Caution*: Please connect the Flexible
Waveguide in the same
direction as Hybrid.
NWD-107460-02E
Submission Prohibited
NEC Internal Use Only
Hybrid
O-ring I/D φ32
(Packing)
Hexagon head screw
with Washer M3×10 (4 ea)
Flexible waveguide
Flange type UBR220
ODU (Main ODU)
ODU (Standby ODU)
Top view
Pole mount
ODU MOUNTING
O-ring I/D φ32
(Packing)
Hybrid
Installation
