CABLE TERMINATION

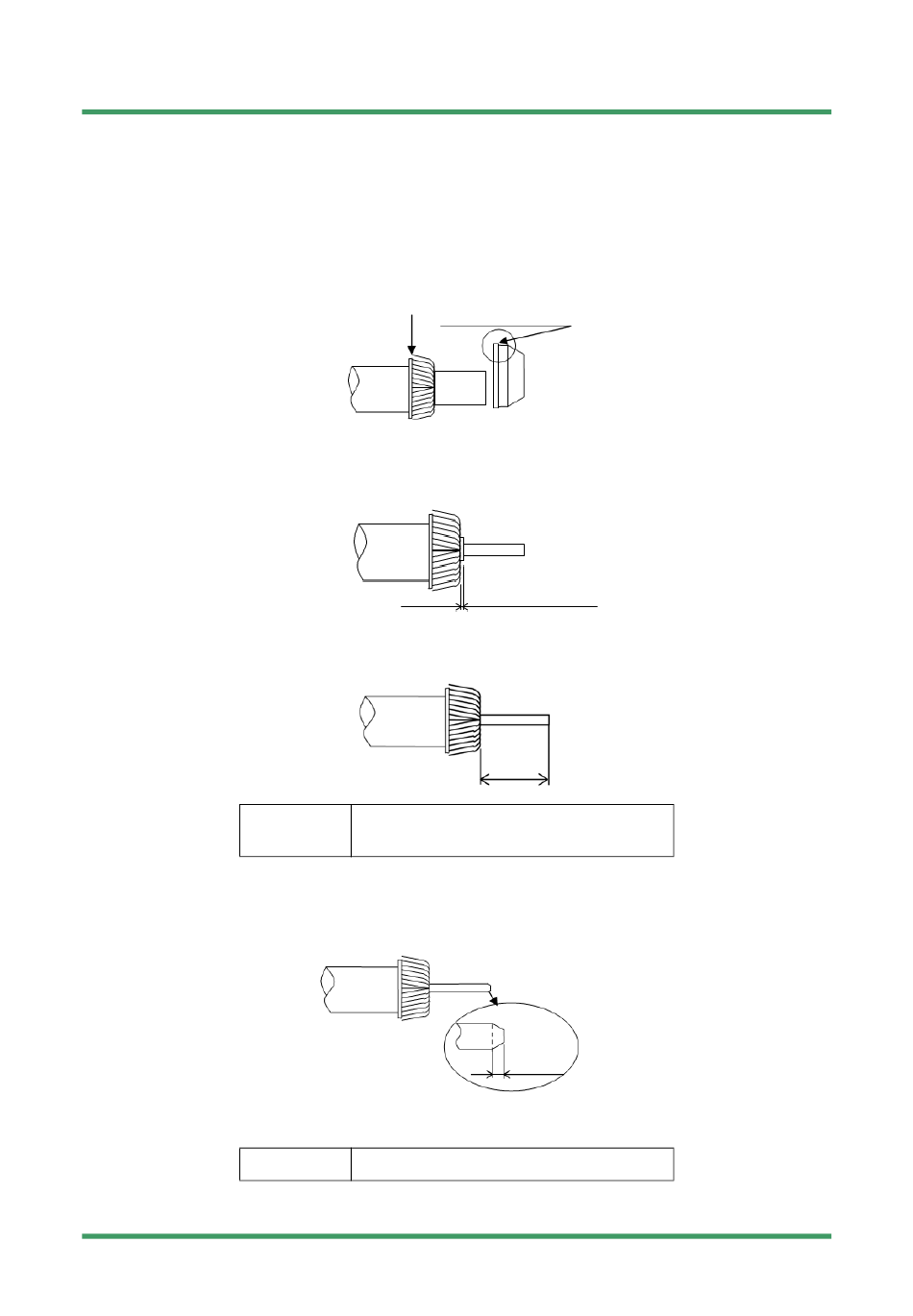

3 Center conductor processing
(1) Braided wire is disentangled.
(2) Remove of insulator and aluminum tape as shown without damaging the center
(3) Remove of the center conductor as shown.
Tools
(4) Chamfer the center conductor.
Note
Tool
Installation
Submission Prohibited
NEC Internal Use Only
Braided wires which became straight wires are turned back to clamp1 side.
The braided wires are cut according to step of clamp1.
conductor.
• cutter
• nipper
Do not damage the center conductor. (burr etc.,)
• file
Step of clamp1
0 to 0.5 mm
6 mm ± 1
1 mm
6-29
NWD-107460-02E
