NEC iPasolink 200 Manual page 122

6-34
Notes

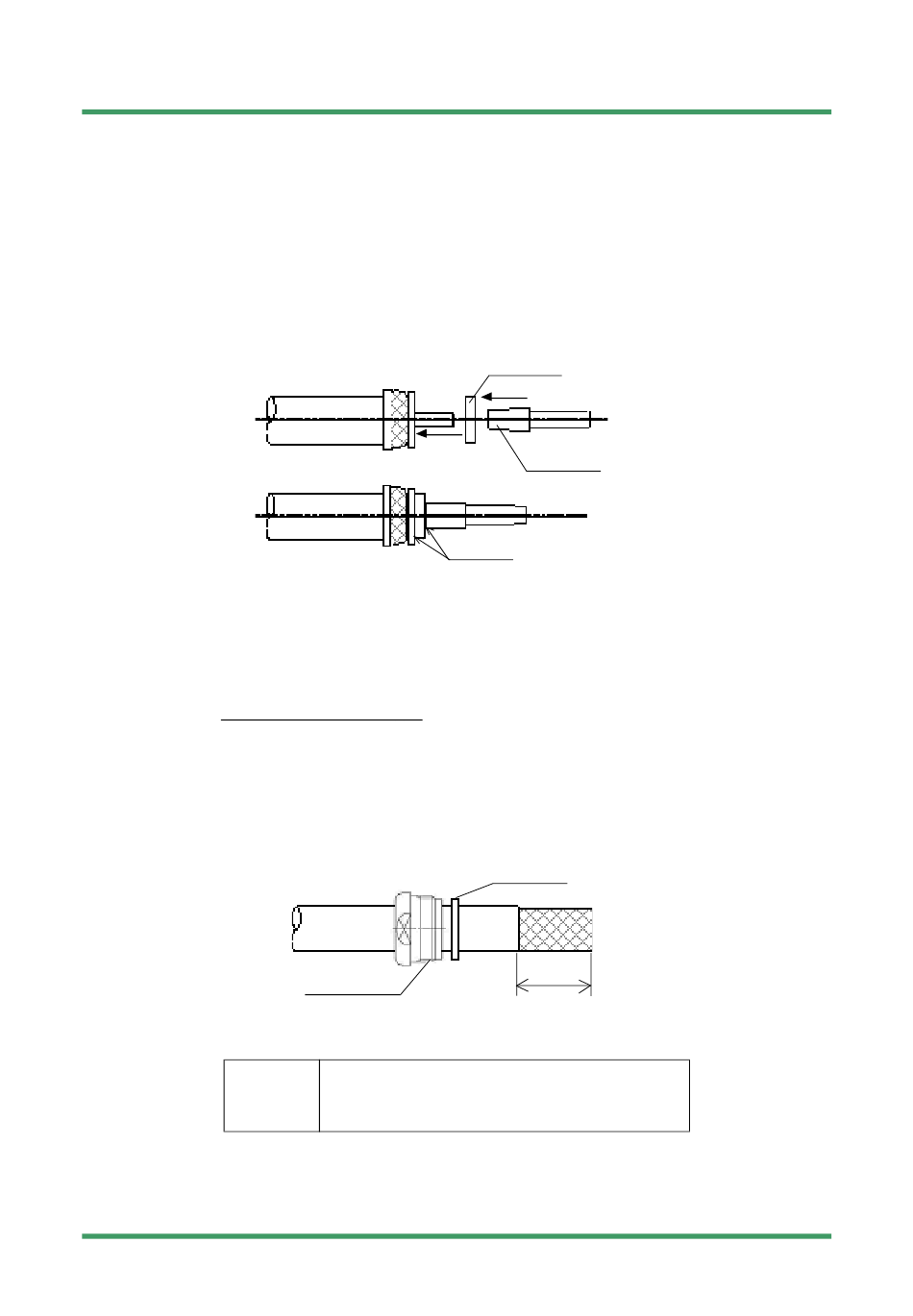

4 Insertion of contact.
(1) A spacer is inserted in a central conductor and contact is inserted.
Note
Refer to [common procedure] cable type A & type B for the next procedure.
In case of cable type B (φB)
1 Insertion of parts and remove of jacket of cable.
(1) The clamp nut, the washer are inserted in the cable.
(2) Remove 13 to 14 mm of jacket only.
Note
Tools
NWD-107460-02E
Submission Prohibited
NEC Internal Use Only
1. Do not damage the braided wire.
2. Do not damage the center conductor. (brr etc.,)
During the contact, the spacer and the insulator there is no gap.
Clamp nut
Do not damage the braided wire.
• knife
• cutter
• measure, etc.
Spacer
Contact
Gap "0"
Washer
13 -14 mm
CABLE TERMINATION
Installation
