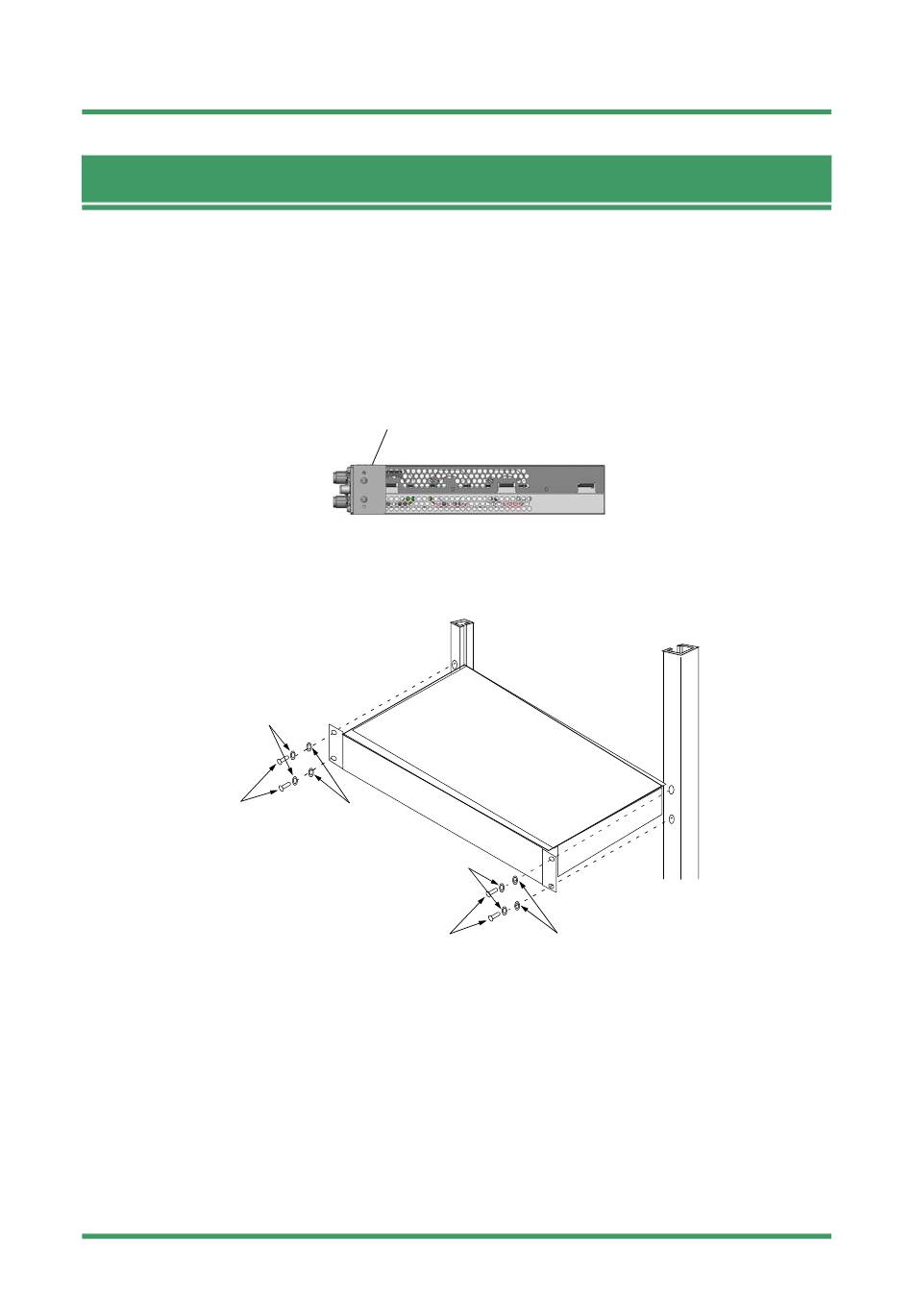

IDU MOUNTING
The installation procedure for the IDU explains in Procedure 4-1. The IDU should be
installed in the radio station.
Procedure 4-1
1
The supporting brackets are attached on front position of the IDU.
2
Align the IDU to the mounting position on the 19-inch rack,
Spring washer
Screw
Installation
Submission Prohibited
NEC Internal Use Only
Mounting Methods of the IDU
Front
position
Flat washer
Spring washer
Screw
4. IDU MOUNTING
Side view
Flat washer
4-1
NWD-107460-02E
