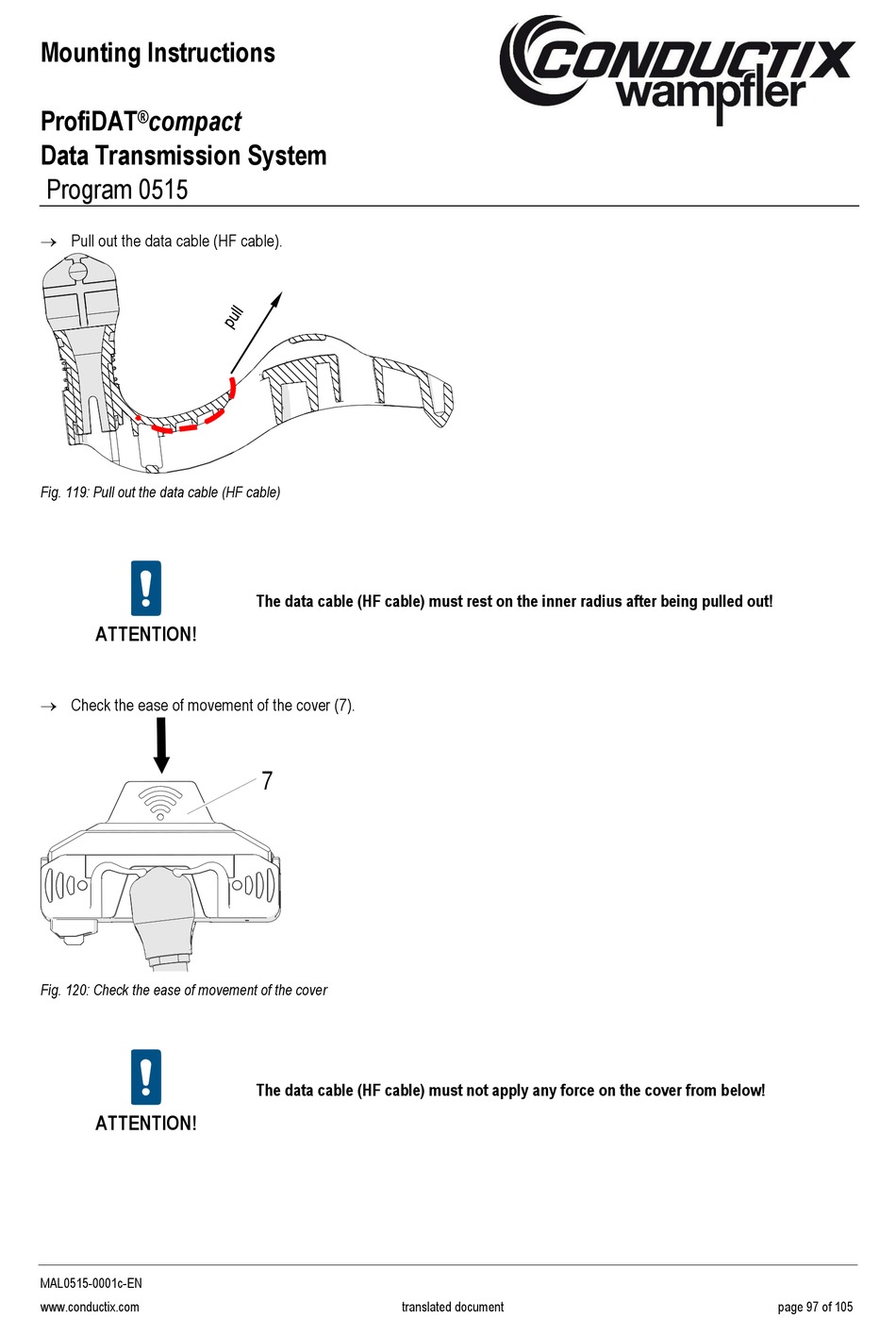

Conductix-Wampfler ProfiDAT compact Mounting Instructions page 97

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
 Pull out the data cable (HF cable).
Fig. 119: Pull out the data cable (HF cable)
ATTENTION!
 Check the ease of movement of the cover (7).
Fig. 120: Check the ease of movement of the cover
ATTENTION!
MAL0515-0001c-EN
www.conductix.com
The data cable (HF cable) must rest on the inner radius after being pulled out!
7
The data cable (HF cable) must not apply any force on the cover from below!
translated document page 97 of 105
