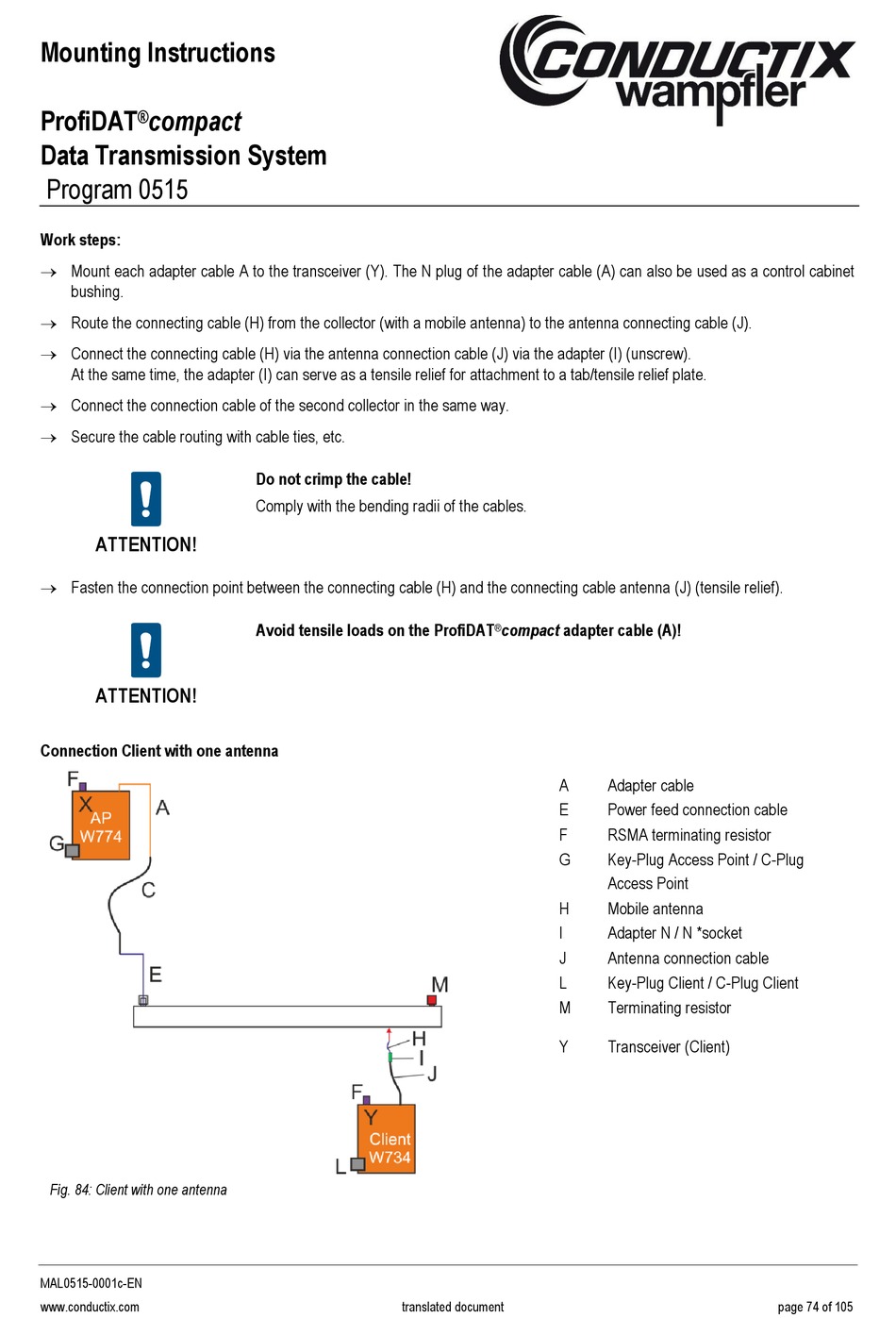

Conductix-Wampfler ProfiDAT compact Mounting Instructions page 74

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Work steps:
 Mount each adapter cable A to the transceiver (Y). The N plug of the adapter cable (A) can also be used as a control cabinet
bushing.
 Route the connecting cable (H) from the collector (with a mobile antenna) to the antenna connecting cable (J).
 Connect the connecting cable (H) via the antenna connection cable (J) via the adapter (I) (unscrew).
At the same time, the adapter (I) can serve as a tensile relief for attachment to a tab/tensile relief plate.
 Connect the connection cable of the second collector in the same way.
 Secure the cable routing with cable ties, etc.
ATTENTION!
 Fasten the connection point between the connecting cable (H) and the connecting cable antenna (J) (tensile relief).
ATTENTION!
Connection Client with one antenna
Fig. 84: Client with one antenna
MAL0515-0001c-EN
www.conductix.com
Do not crimp the cable!
Comply with the bending radii of the cables.
Avoid tensile loads on the ProfiDAT
translated document
compact adapter cable (A)!
®
A Adapter cable
E Power feed connection cable
F RSMA terminating resistor
G Key-Plug Access Point / C-Plug
Access Point
H Mobile antenna
I Adapter N / N *socket
J Antenna connection cable
L Key-Plug Client / C-Plug Client
M Terminating resistor
Y Transceiver (Client)
