Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515

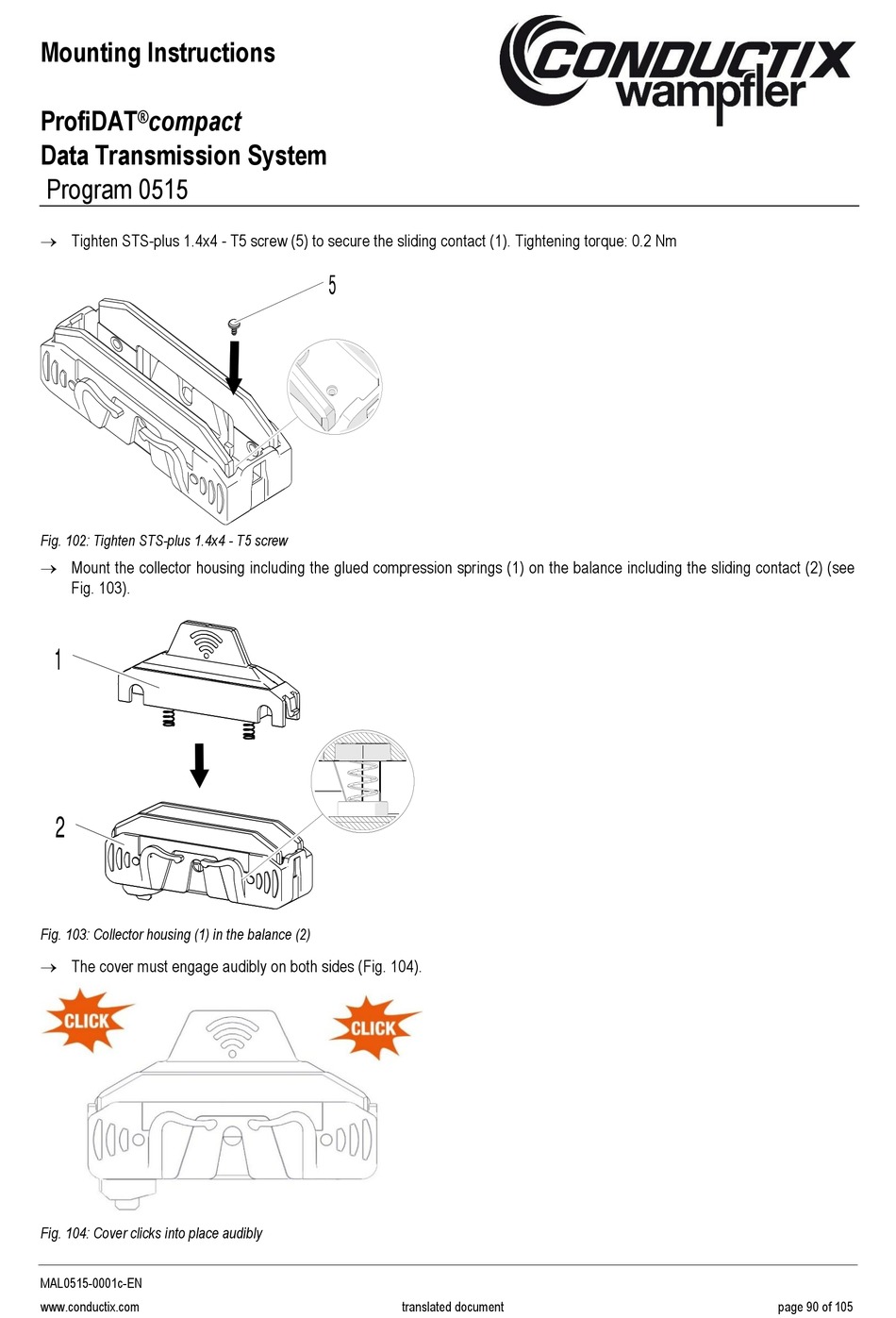

 Tighten STS-plus 1.4x4 - T5 screw (5) to secure the sliding contact (1). Tightening torque: 0.2 Nm
5
Fig. 102: Tighten STS-plus 1.4x4 - T5 screw
 Mount the collector housing including the glued compression springs (1) on the balance including the sliding contact (2) (see
Fig. 103).
1
2
Fig. 103: Collector housing (1) in the balance (2)
 The cover must engage audibly on both sides (Fig. 104).
Fig. 104: Cover clicks into place audibly
MAL0515-0001c-EN
www.conductix.com translated document page 90 of 105
