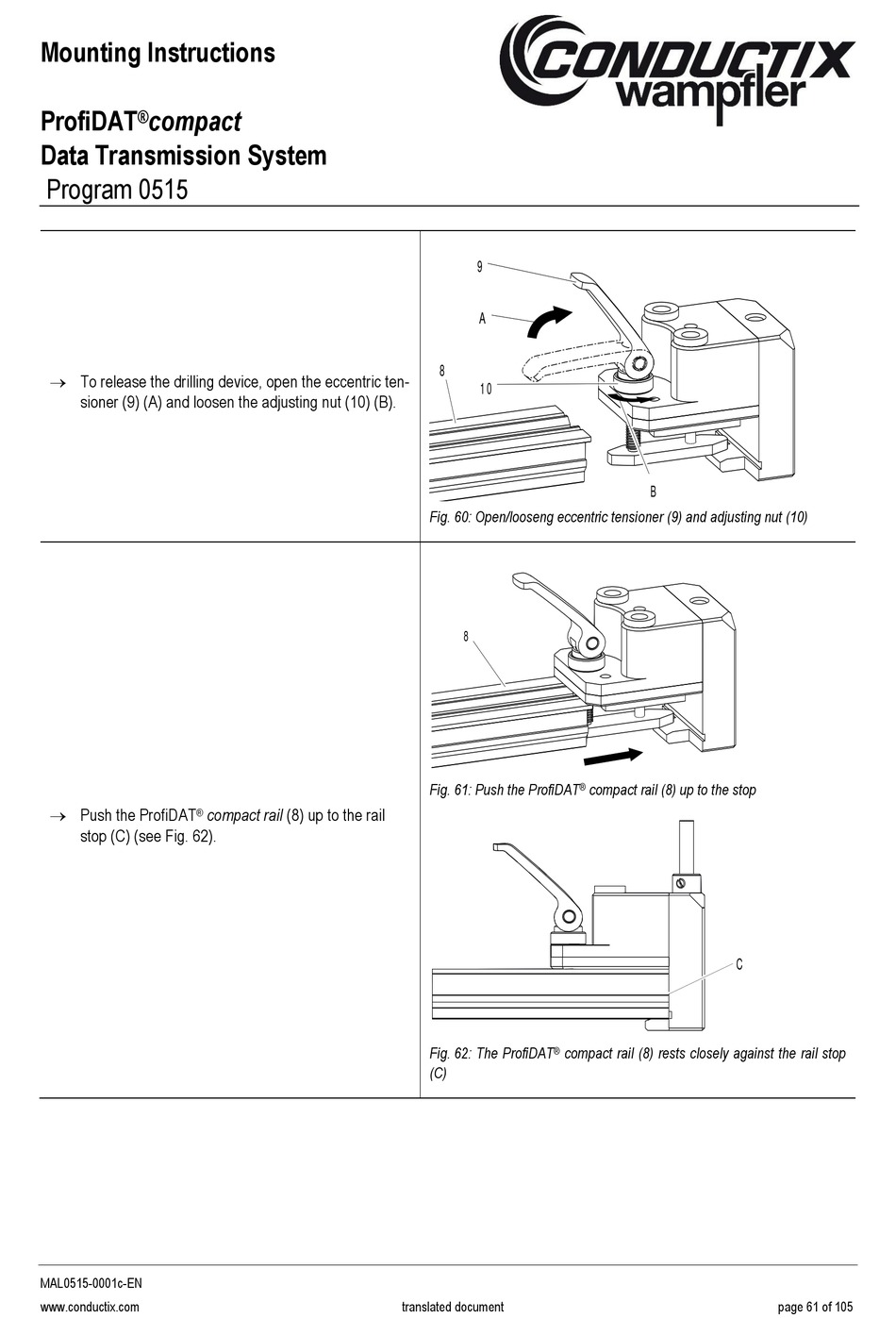

Conductix-Wampfler ProfiDAT compact Mounting Instructions page 61

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
 To release the drilling device, open the eccentric ten-
sioner (9) (A) and loosen the adjusting nut (10) (B).
 Push the ProfiDAT
compact rail (8) up to the rail
®
stop (C) (see Fig. 62).
MAL0515-0001c-EN
www.conductix.com
9
A
8
1 0
Fig. 60: Open/looseng eccentric tensioner (9) and adjusting nut (10)
8
Fig. 61: Push the ProfiDAT
Fig. 62: The ProfiDAT compact rail (8) rests closely against the rail stop
®
(C)
translated document
B
® compact rail (8) up to the stop
C
page 61 of 105
