Conductix-Wampfler ProfiDAT compact Mounting Instructions page 62

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
 In order to fix the ProfiDAT
drilling jig, close the eccentric tensioner (9) (A) and
tighten the adjusting nut (10) (B).
 Drill with a cordless screwdriver (incl. countersink)
until the adjusting ring hits the drilling bush (2) (see
Fig. 65).
MAL0515-0001c-EN
www.conductix.com
compact rail (8) in the
®
translated document
A
9
1 0
8

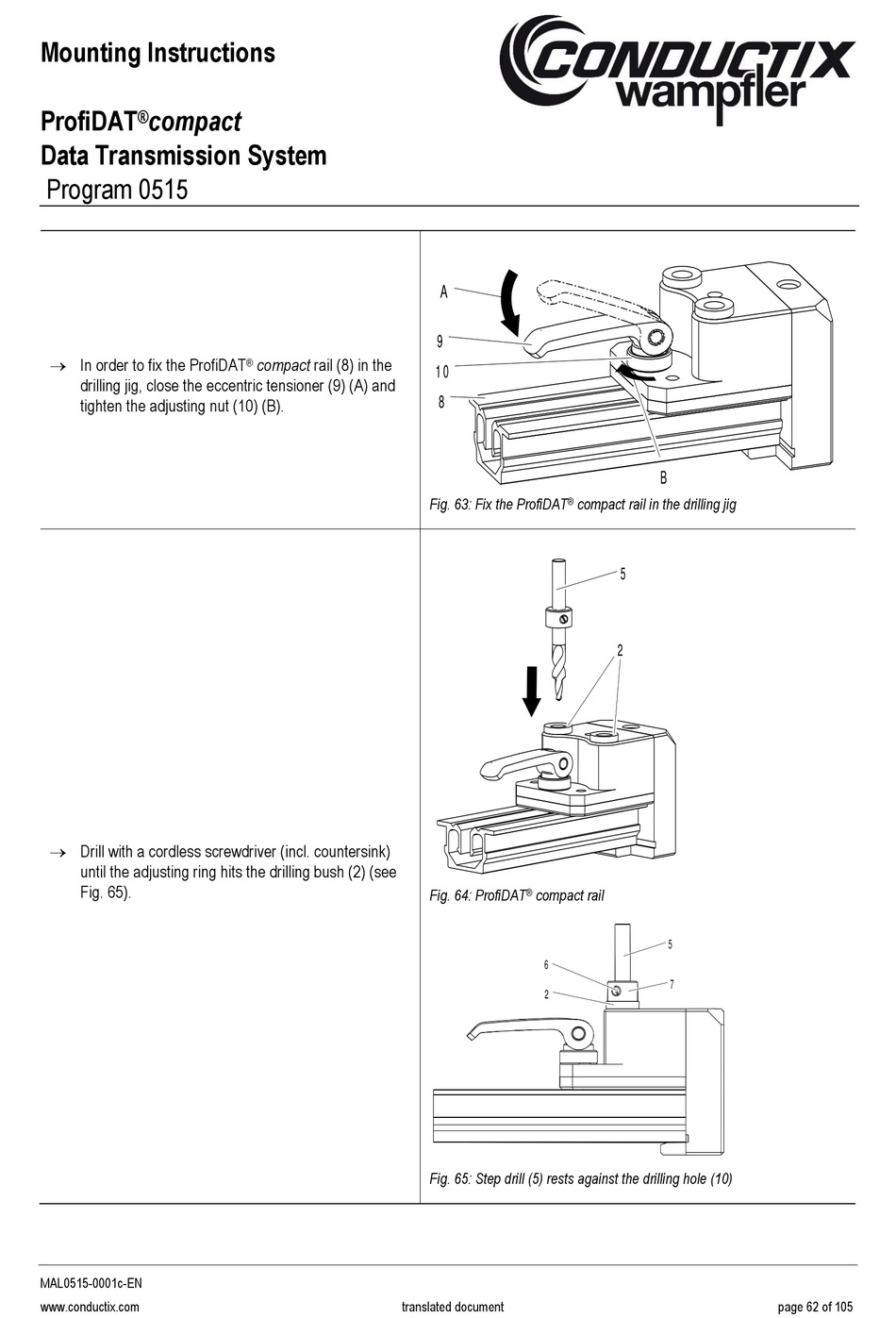

Fig. 63: Fix the ProfiDAT compact rail in the drilling jig
®
Fig. 64: ProfiDAT ® compact rail
6
2
Fig. 65: Step drill (5) rests against the drilling hole (10)
B
5
2
5
7
page 62 of 105
