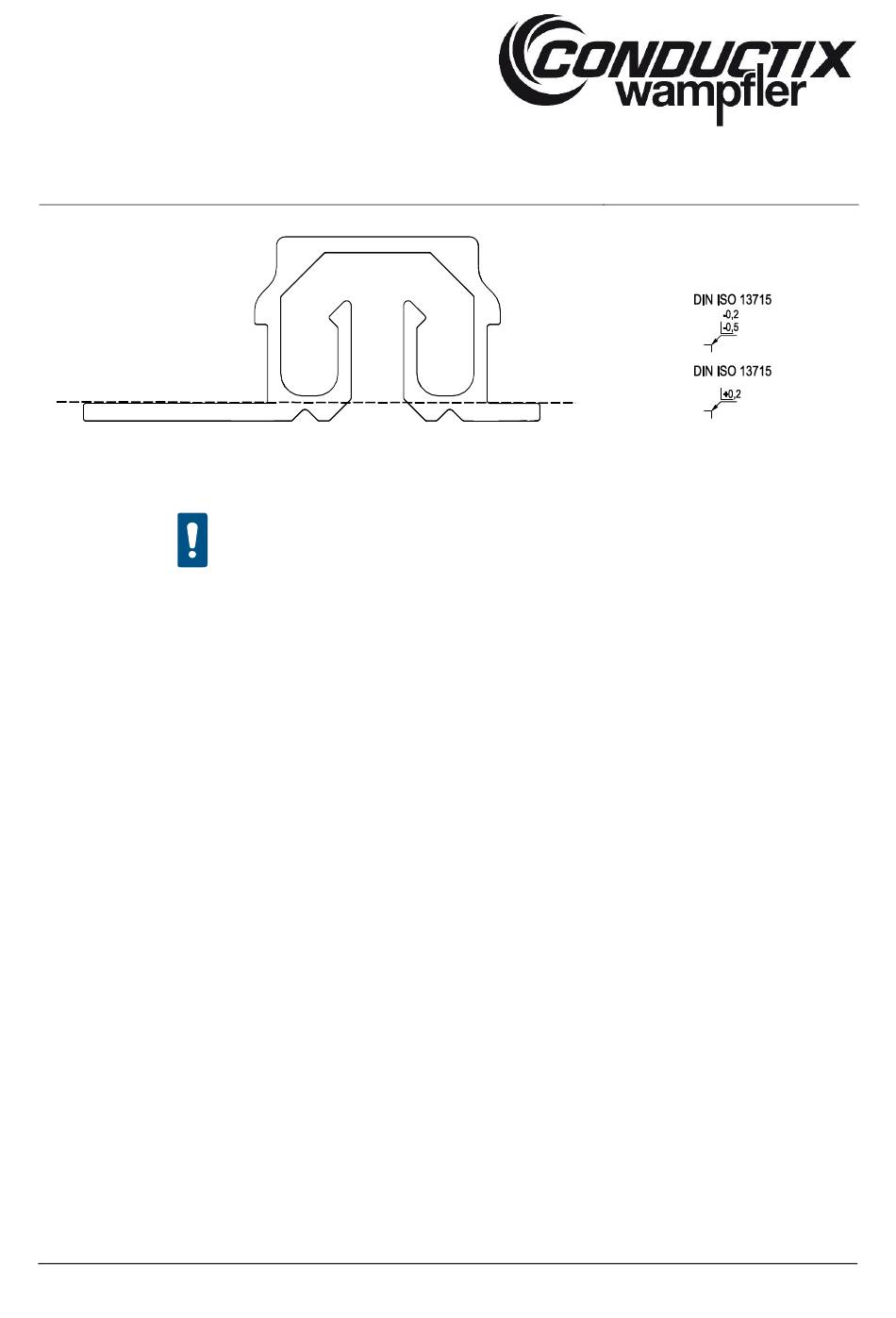

Fig. 53: Deburr ProfiDAT ® compact Rail
ATTENTION!
MAL0515-0001c-EN
www.conductix.com
Sharp edges and/or burrs lead to increased wear of the sliding contacts in
a very short period of time!
With bad saw cuts, the connection points can be affected by a gap or offset,
which can have a negative impact on the quality of the data transmission.
Observe the information in section 6.4.5.
translated document
Area A
B
Area B
