Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515

6.4 Mechanical installation

Personnel:
Installation by technical personnel only

 At least 2 people
6.4.1

Mount hanger clamp

The distance between the hanger clamps may be max. 1m on straight lines or 0.5 m in bends.

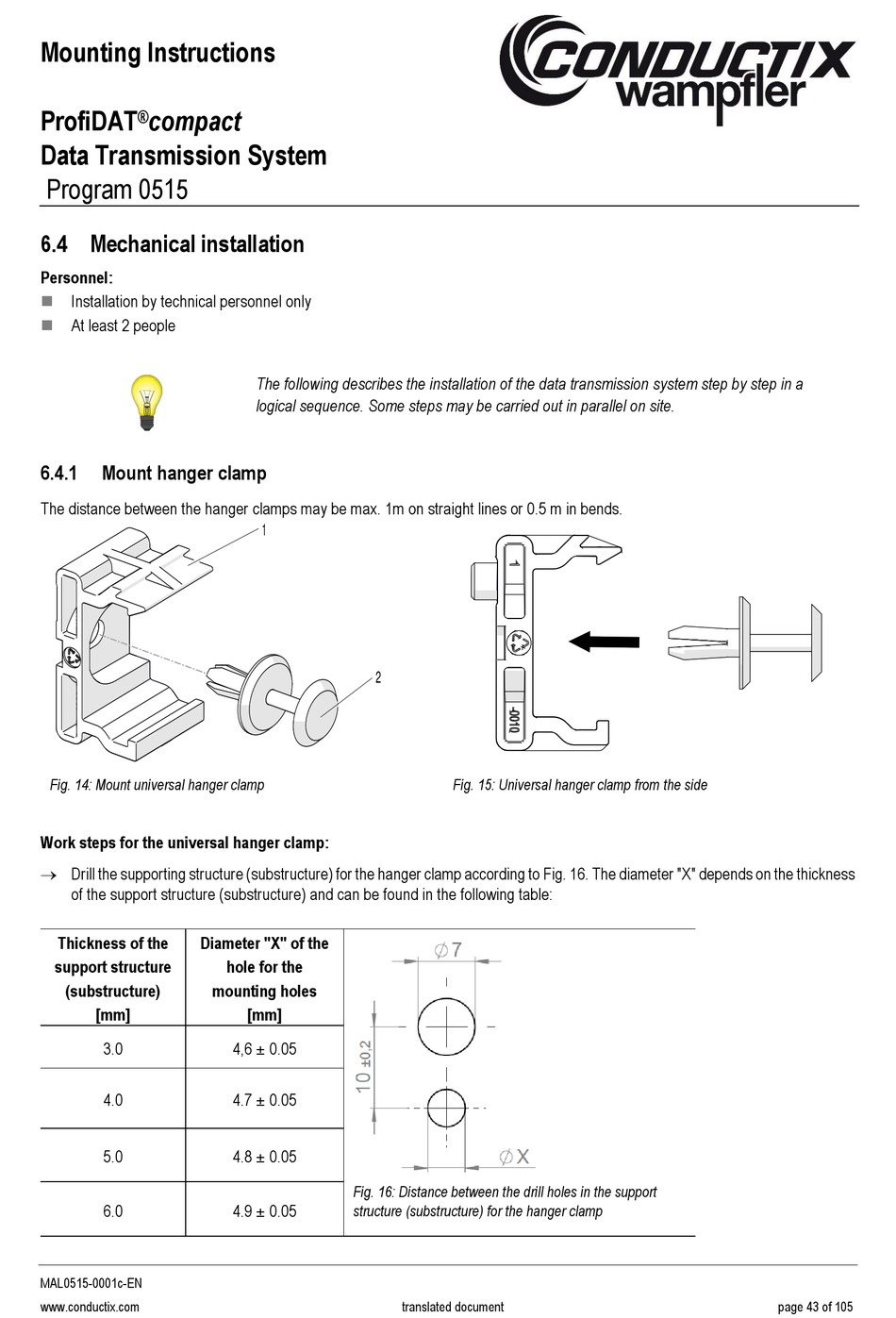

Fig. 14: Mount universal hanger clamp
Work steps for the universal hanger clamp:
 Drill the supporting structure (substructure) for the hanger clamp according to Fig. 16. The diameter "X" depends on the thickness
of the support structure (substructure) and can be found in the following table:
Thickness of the Diameter "X" of the
support structure
(substructure)
[mm]
3.0
4.0
5.0
6.0
MAL0515-0001c-EN
www.conductix.com
The following describes the installation of the data transmission system step by step in a
logical sequence. Some steps may be carried out in parallel on site.
1
2
hole for the
mounting holes
[mm]
4,6 ± 0.05
4.7 ± 0.05
4.8 ± 0.05
Fig. 16: Distance between the drill holes in the support
4.9 ± 0.05
structure (substructure) for the hanger clamp
Fig. 15: Universal hanger clamp from the side
