Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Every 6 months
8.2.1

Documentation

 The results of inspections and the measures taken are to be documented in written reports.
 Conductix-Wampfler must be informed immediately of any defects or malfunctions that occur during the test phase and within
the warranty period.
8.2.2

Maximum wear of the sliding contacts

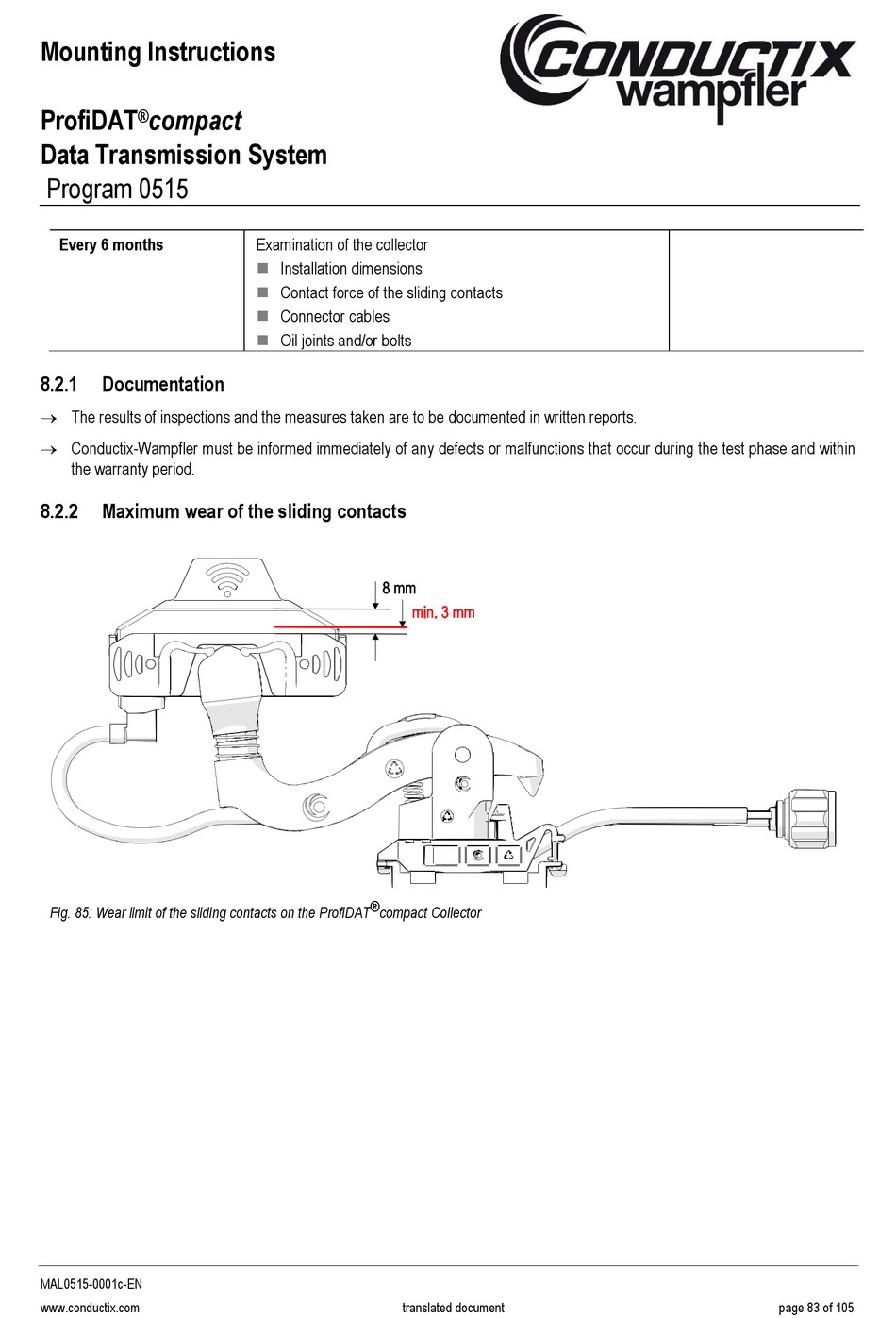

Fig. 85: Wear limit of the sliding contacts on the ProfiDAT ® compact Collector
MAL0515-0001c-EN
www.conductix.com
Examination of the collector
Installation dimensions

Contact force of the sliding contacts

 Connector cables
Oil joints and/or bolts

translated document page 83 of 105
