Mounting Instructions
ProfiDAT
compact
®
Data Transmission System
Program 0515

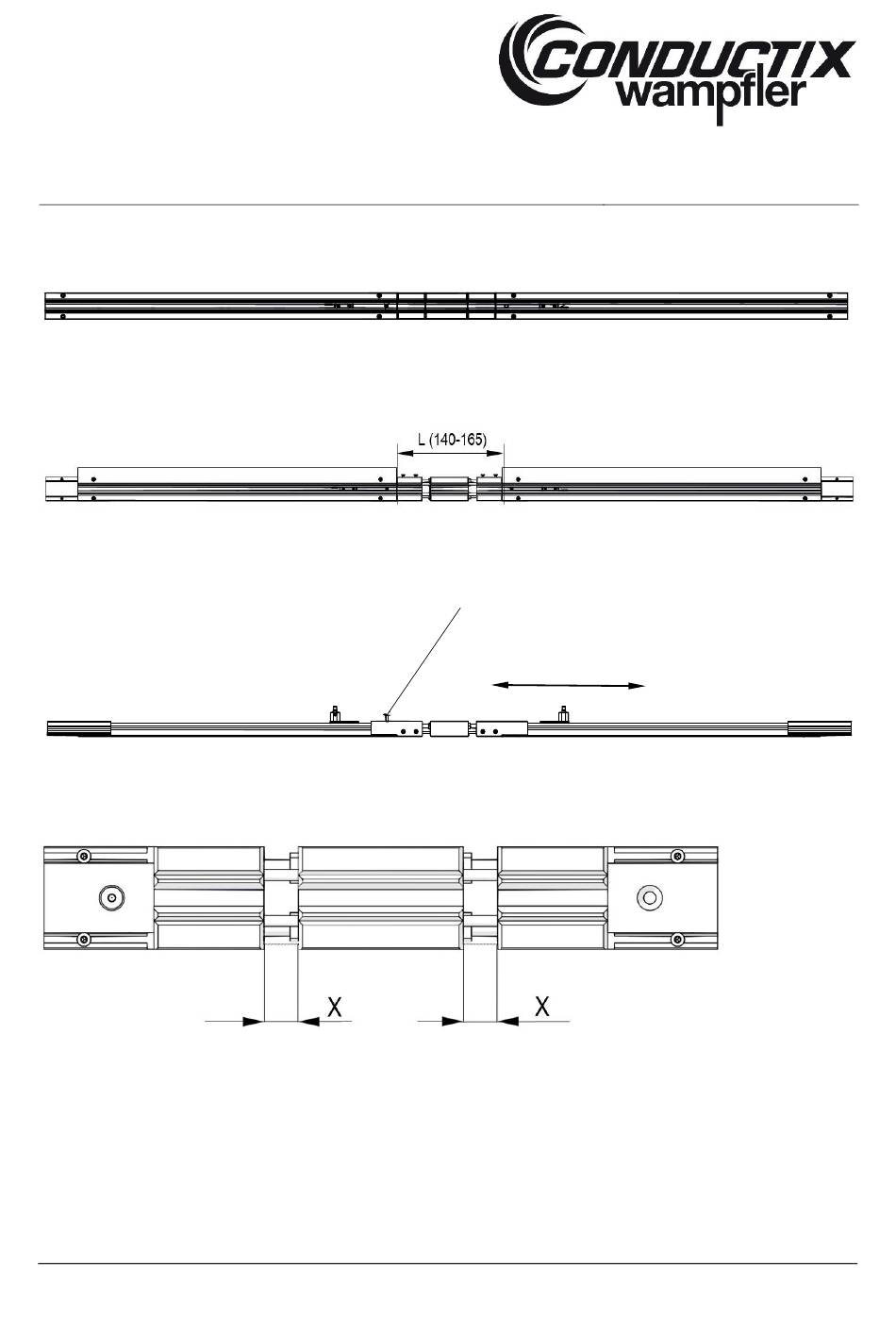

System without a positioning strip
Fig. 38: Line feed without positioning strip
System with positioning strip
Fig. 39: Line feed with positioning strip
L = 140 mm + 2 x 12.5 mm = 165 mm
F
max. 25 mm
Fig. 40: Line feed with positioning unit; F = Anchor point
6.4.3.4
Adjust the expansion unit
Fig. 41: Air gap (X) in the expansion unit
MAL0515-0001c-EN
www.conductix.com
translated document
page 51 of 105
