Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515

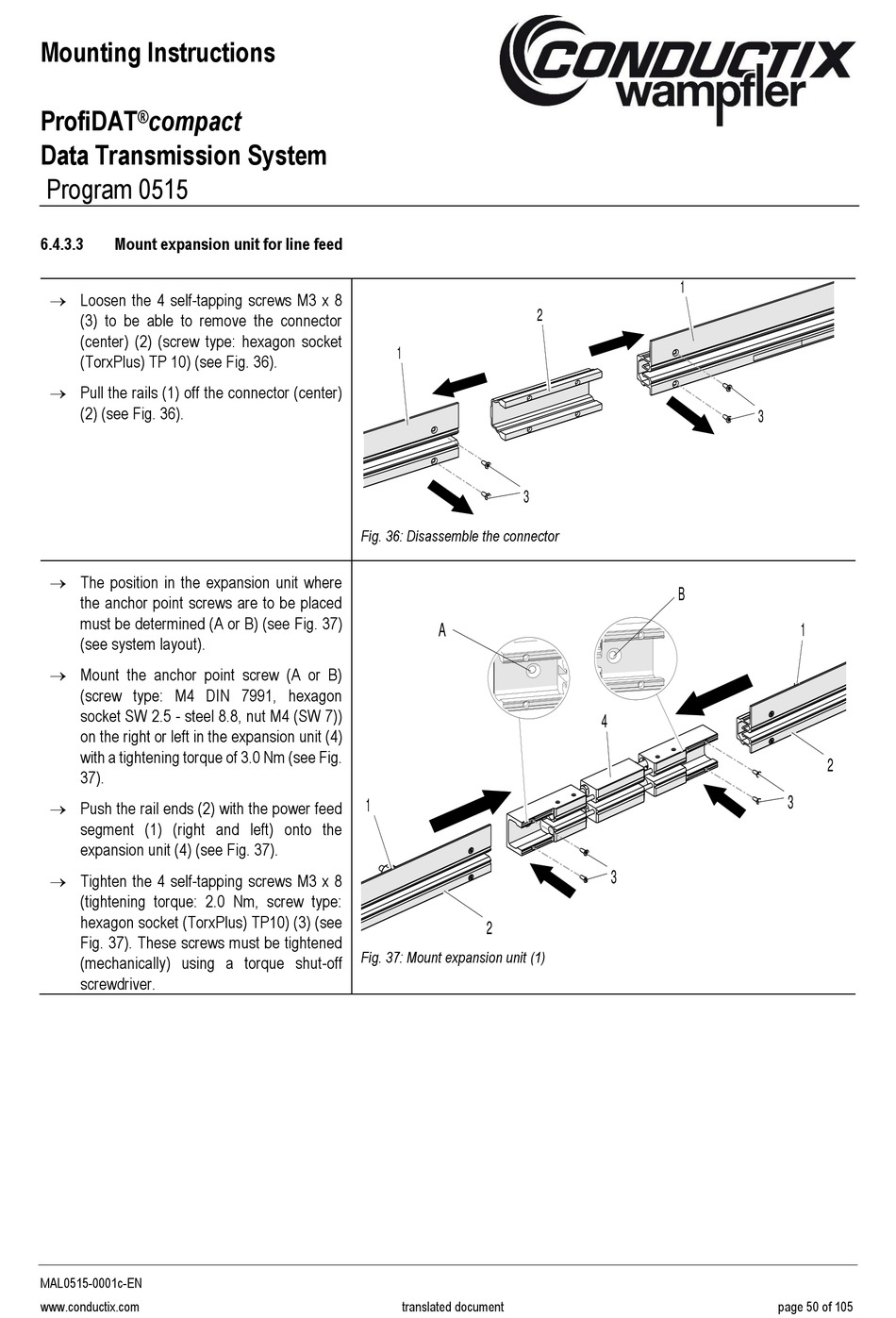

6.4.3.3 Mount expansion unit for line feed
 Loosen the 4 self-tapping screws M3 x 8
(3) to be able to remove the connector
(center) (2) (screw type: hexagon socket
(TorxPlus) TP 10) (see Fig. 36).
 Pull the rails (1) off the connector (center)
(2) (see Fig. 36).
 The position in the expansion unit where
the anchor point screws are to be placed
must be determined (A or B) (see Fig. 37)
(see system layout).
 Mount the anchor point screw (A or B)
(screw type: M4 DIN 7991, hexagon
socket SW 2.5 - steel 8.8, nut M4 (SW 7))
on the right or left in the expansion unit (4)
with a tightening torque of 3.0 Nm (see Fig.
37).
 Push the rail ends (2) with the power feed
segment (1) (right and left) onto the
expansion unit (4) (see Fig. 37).
 Tighten the 4 self-tapping screws M3 x 8
(tightening torque: 2.0 Nm, screw type:
hexagon socket (TorxPlus) TP10) (3) (see
Fig. 37). These screws must be tightened
(mechanically) using a torque shut-off
screwdriver.
MAL0515-0001c-EN
www.conductix.com
1
3
Fig. 36: Disassemble the connector
A
1
2
Fig. 37: Mount expansion unit (1)
translated document
1
2
B
4
3
3
1
2
3
