Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
8.2.3

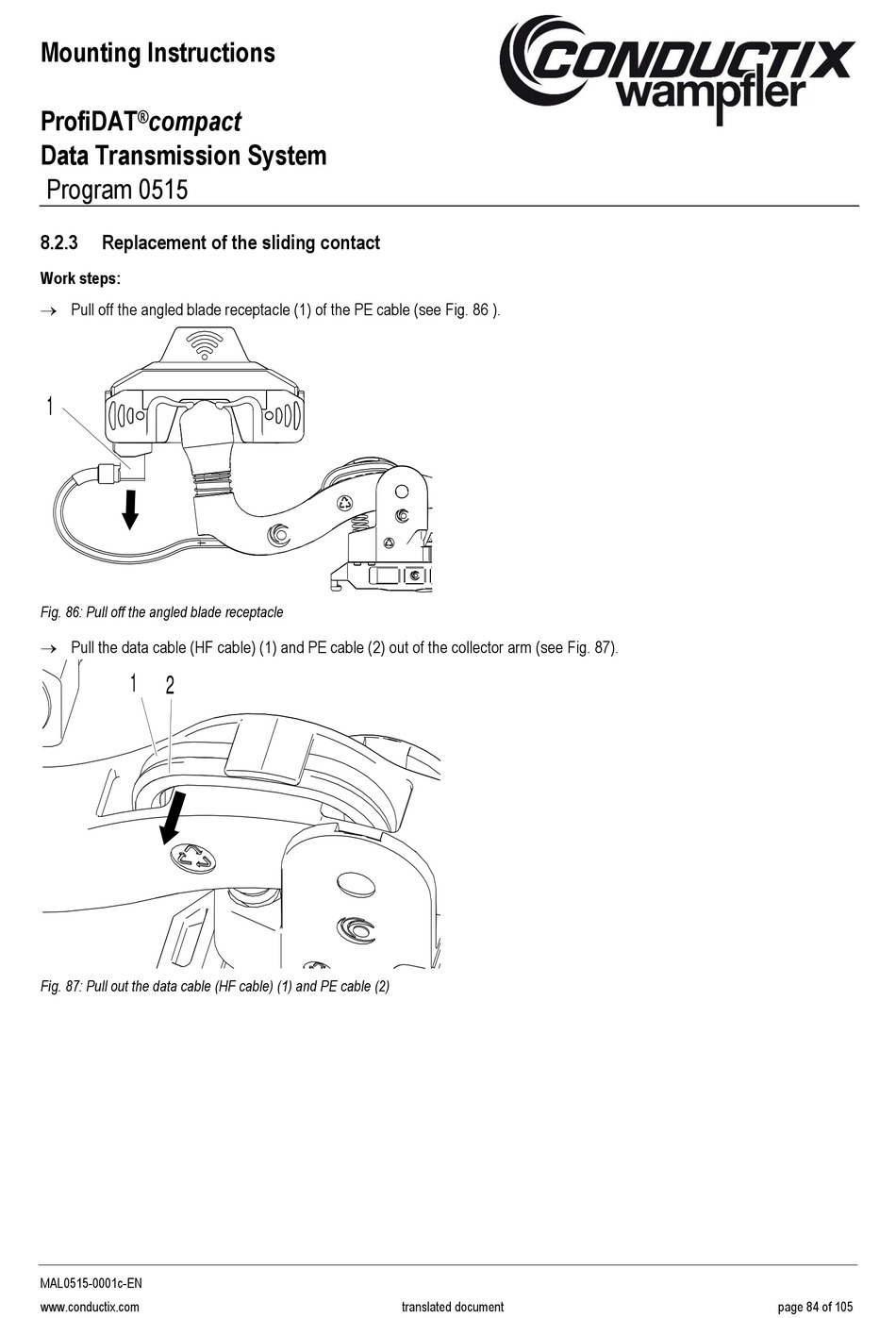

Replacement of the sliding contact

Work steps:
 Pull off the angled blade receptacle (1) of the PE cable (see Fig. 86 ).
1
Fig. 86: Pull off the angled blade receptacle
 Pull the data cable (HF cable) (1) and PE cable (2) out of the collector arm (see Fig. 87).
1
2
Fig. 87: Pull out the data cable (HF cable) (1) and PE cable (2)
MAL0515-0001c-EN
www.conductix.com translated document page 84 of 105
