Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515

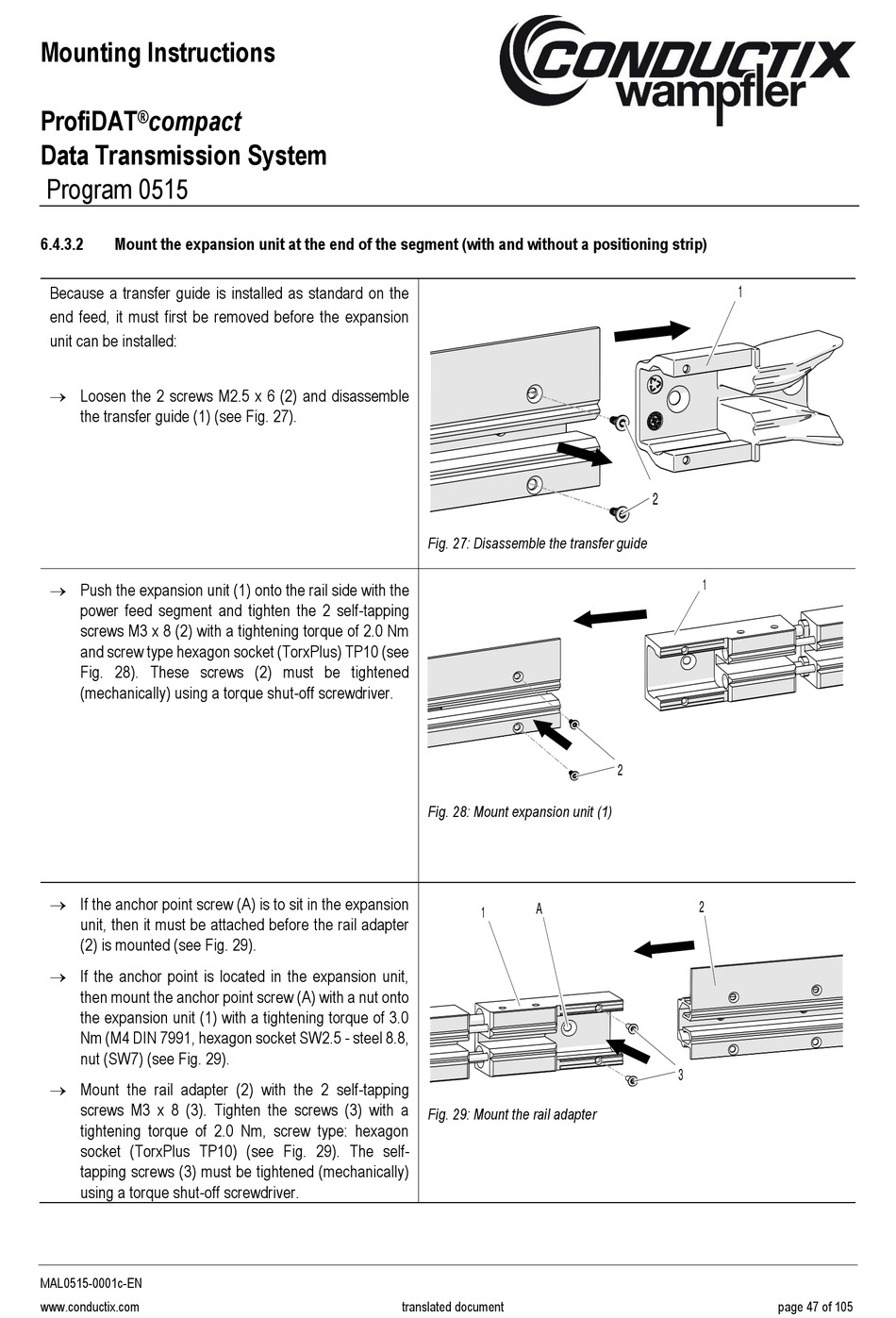

6.4.3.2 Mount the expansion unit at the end of the segment (with and without a positioning strip)
Because a transfer guide is installed as standard on the
end feed, it must first be removed before the expansion
unit can be installed:
 Loosen the 2 screws M2.5 x 6 (2) and disassemble
the transfer guide (1) (see Fig. 27).
 Push the expansion unit (1) onto the rail side with the
power feed segment and tighten the 2 self-tapping
screws M3 x 8 (2) with a tightening torque of 2.0 Nm
and screw type hexagon socket (TorxPlus) TP10 (see
Fig. 28). These screws (2) must be tightened
(mechanically) using a torque shut-off screwdriver.
 If the anchor point screw (A) is to sit in the expansion
unit, then it must be attached before the rail adapter
(2) is mounted (see Fig. 29).
 If the anchor point is located in the expansion unit,
then mount the anchor point screw (A) with a nut onto
the expansion unit (1) with a tightening torque of 3.0
Nm (M4 DIN 7991, hexagon socket SW2.5 - steel 8.8,
nut (SW7) (see Fig. 29).
 Mount the rail adapter (2) with the 2 self-tapping
screws M3 x 8 (3). Tighten the screws (3) with a
tightening torque of 2.0 Nm, screw type: hexagon
socket (TorxPlus TP10) (see Fig. 29). The self-
tapping screws (3) must be tightened (mechanically)
using a torque shut-off screwdriver.
MAL0515-0001c-EN
www.conductix.com
Fig. 27: Disassemble the transfer guide
Fig. 28: Mount expansion unit (1)
A
1
Fig. 29: Mount the rail adapter
translated document
1
2
1
2
2
3
