Mounting Instructions
ProfiDAT
compact
®
Data Transmission System
Program 0515
4 Product Description and Operating Principle
4.1 Overview

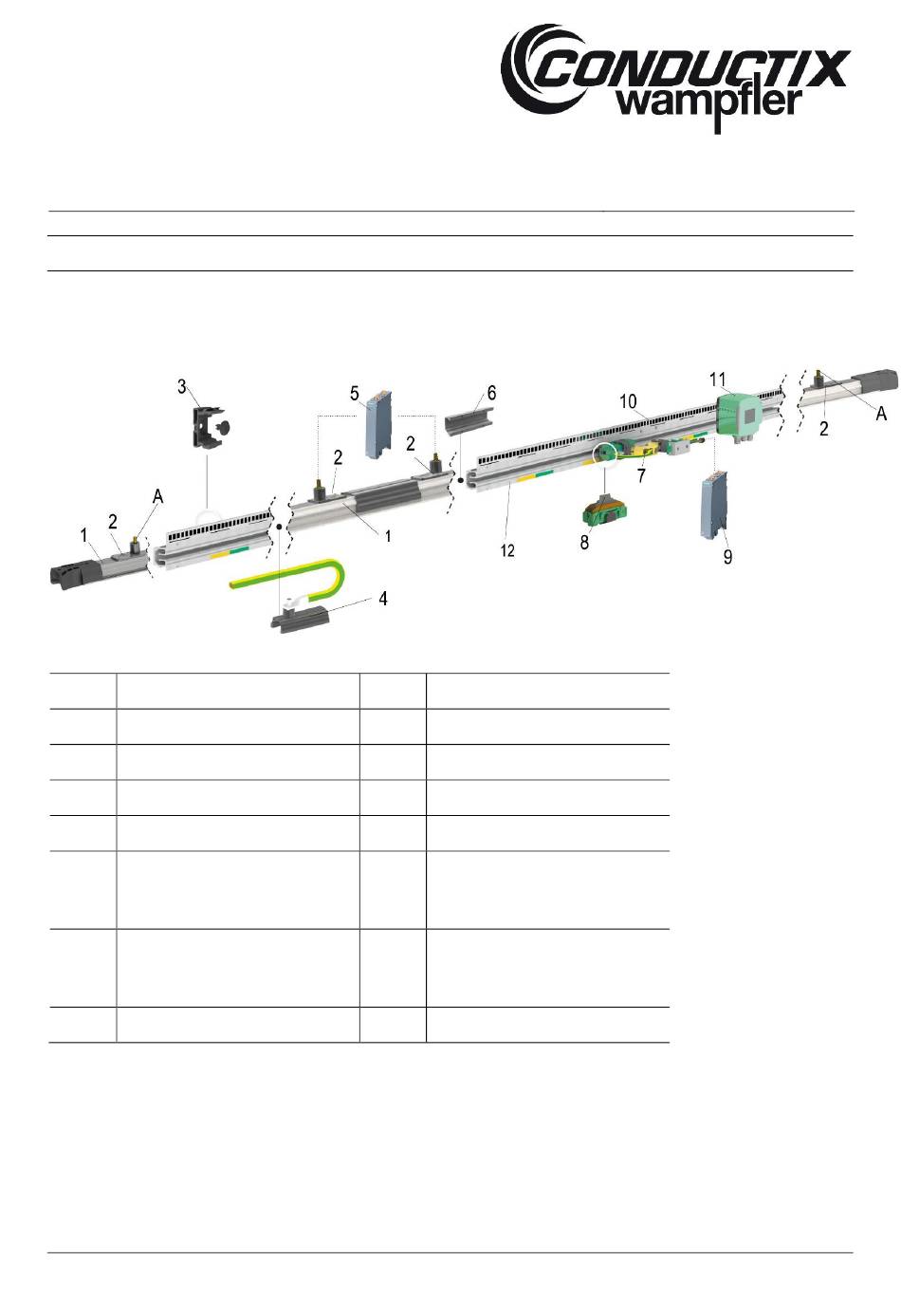

Fig. 1: ProfiDAT
compact components in detail
®
Item
Name
1
Power feed
3
Universal hanger clamp
5
Transceiver (Access Point)
7
Collector
9
Transceiver (Client)
11
Reading head for the positioning
system (see section 6.4.10) Not
included in the scope of delivery
A
Terminating resistor
MAL0515-0001c-EN
www.conductix.com
Item
Name
2
Stationary Antenna
4
PE connector
6
Connector
8
Mobile antenna
10
Code tape for the positioning system
(see section 6.4.10) Not included in
the scope of delivery
12
ProfiDAT
compact Rail
®
translated document
page 29 of 105
