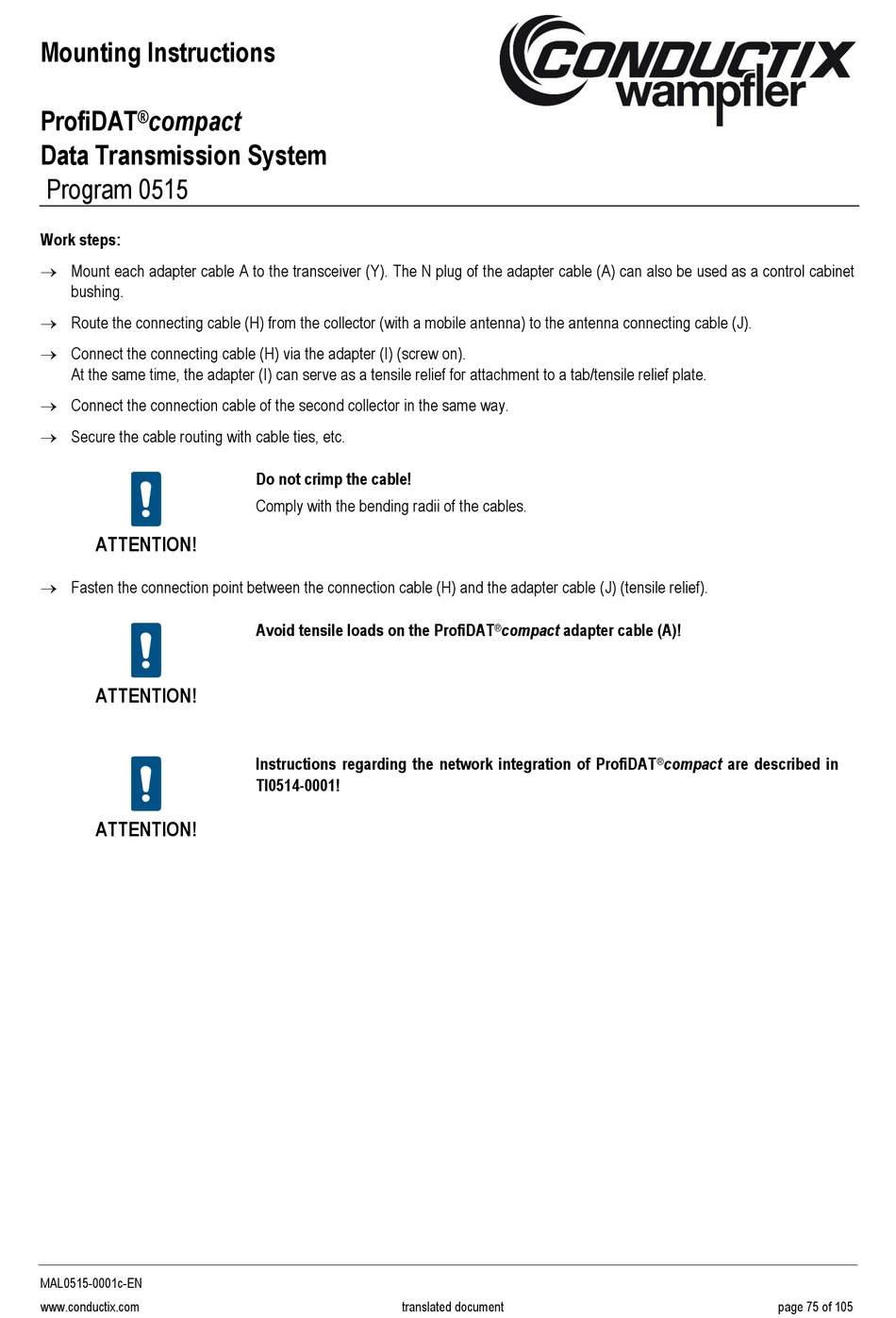

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Work steps:
 Mount each adapter cable A to the transceiver (Y). The N plug of the adapter cable (A) can also be used as a control cabinet
bushing.
 Route the connecting cable (H) from the collector (with a mobile antenna) to the antenna connecting cable (J).
 Connect the connecting cable (H) via the adapter (I) (screw on).
At the same time, the adapter (I) can serve as a tensile relief for attachment to a tab/tensile relief plate.
 Connect the connection cable of the second collector in the same way.
 Secure the cable routing with cable ties, etc.
ATTENTION!
 Fasten the connection point between the connection cable (H) and the adapter cable (J) (tensile relief).
ATTENTION!
ATTENTION!
