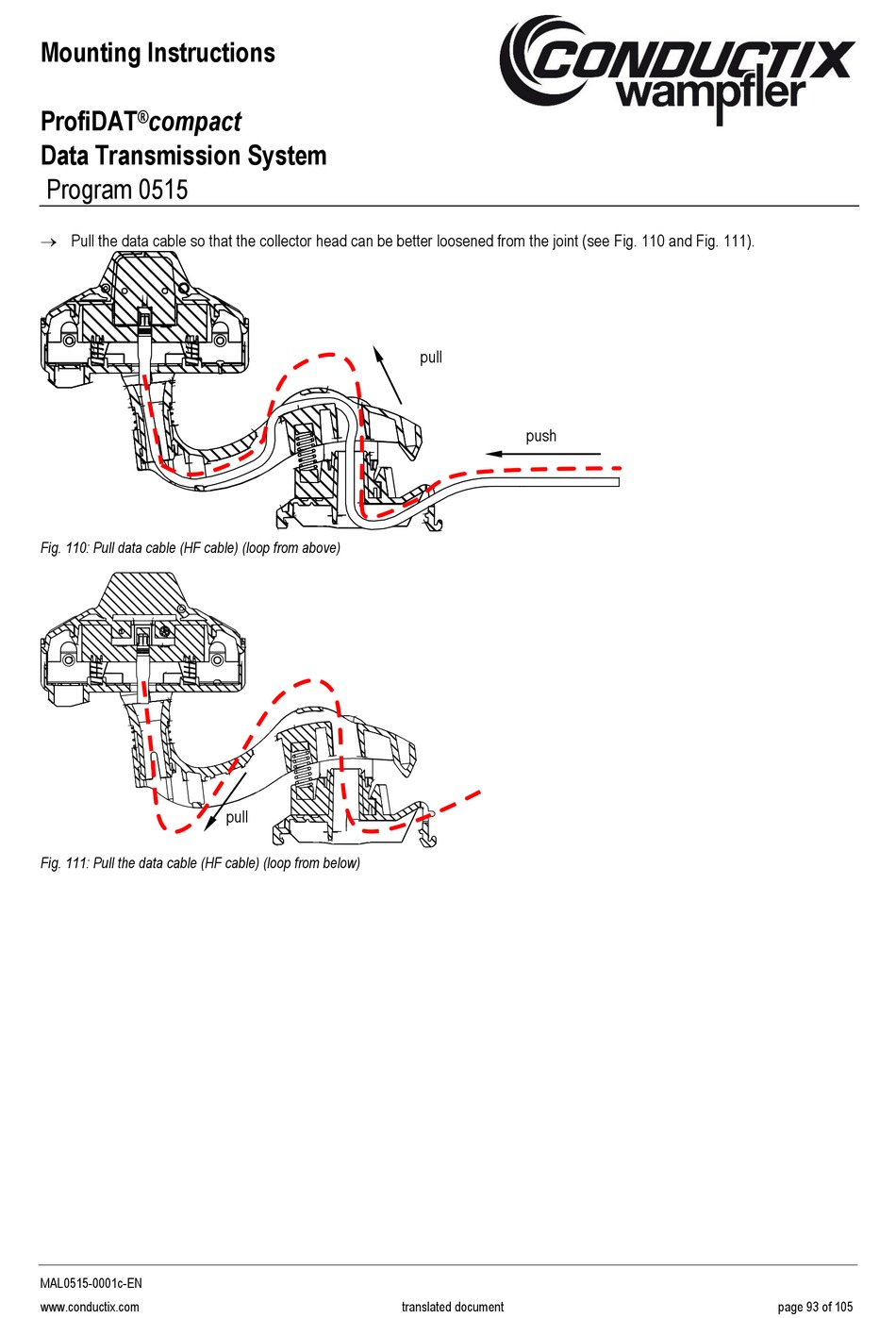

 Pull the data cable so that the collector head can be better loosened from the joint (see Fig. 110 and Fig. 111).
pull
push
Fig. 110: Pull data cable (HF cable) (loop from above)
pull
Fig. 111: Pull the data cable (HF cable) (loop from below)
