Mounting Instructions
ProfiDAT
compact
®
Data Transmission System
Program 0515
6.5.4
Connect the transceiver (Client) to the mobile antenna
The mobile antenna connection cables of the collector are mounted on the transceiver (Client) on the vehicle.
Also observe the information and safety instructions in the manufacturer's documentation when installing the connection cables!

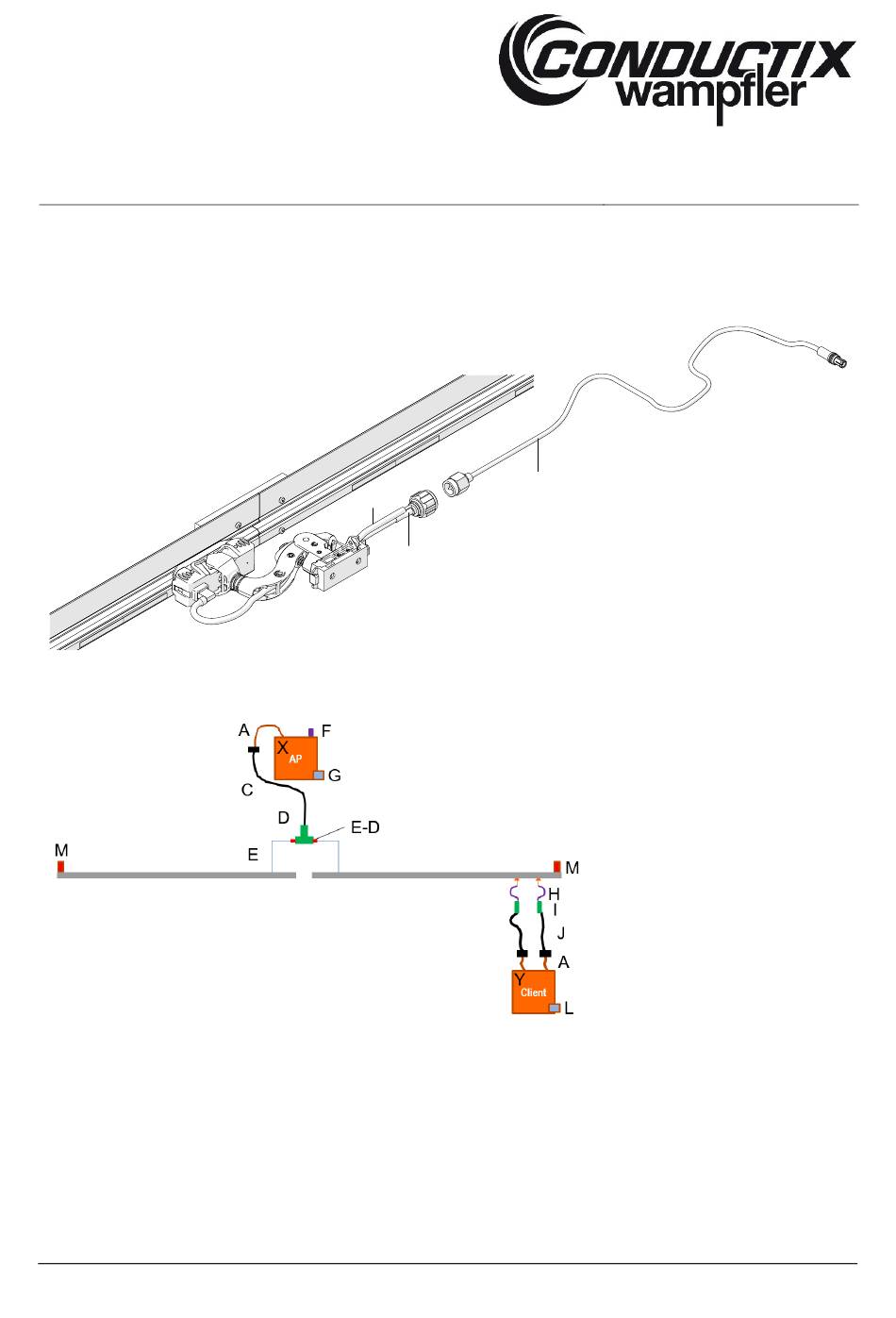

Fig. 82: Connection to mobile antenna
Connection Client with two antennas
Fig. 83: Client with two antennas
MAL0515-0001c-EN
www.conductix.com
J
PE
H
translated document
A
Adapter cable
C
Connection cable
E-D
Adapter N/N connector
F
RSMA terminating resistor
G
Key-Plug Access Point / C-Plug
Access Point
H
Mobile antenna
I
Adapter N / N *socket
J
Antenna connection cable
L
Key-Plug Client / C-Plug Client
M
Terminating resistor
Y
Transceiver (Client)
page 73 of 105
