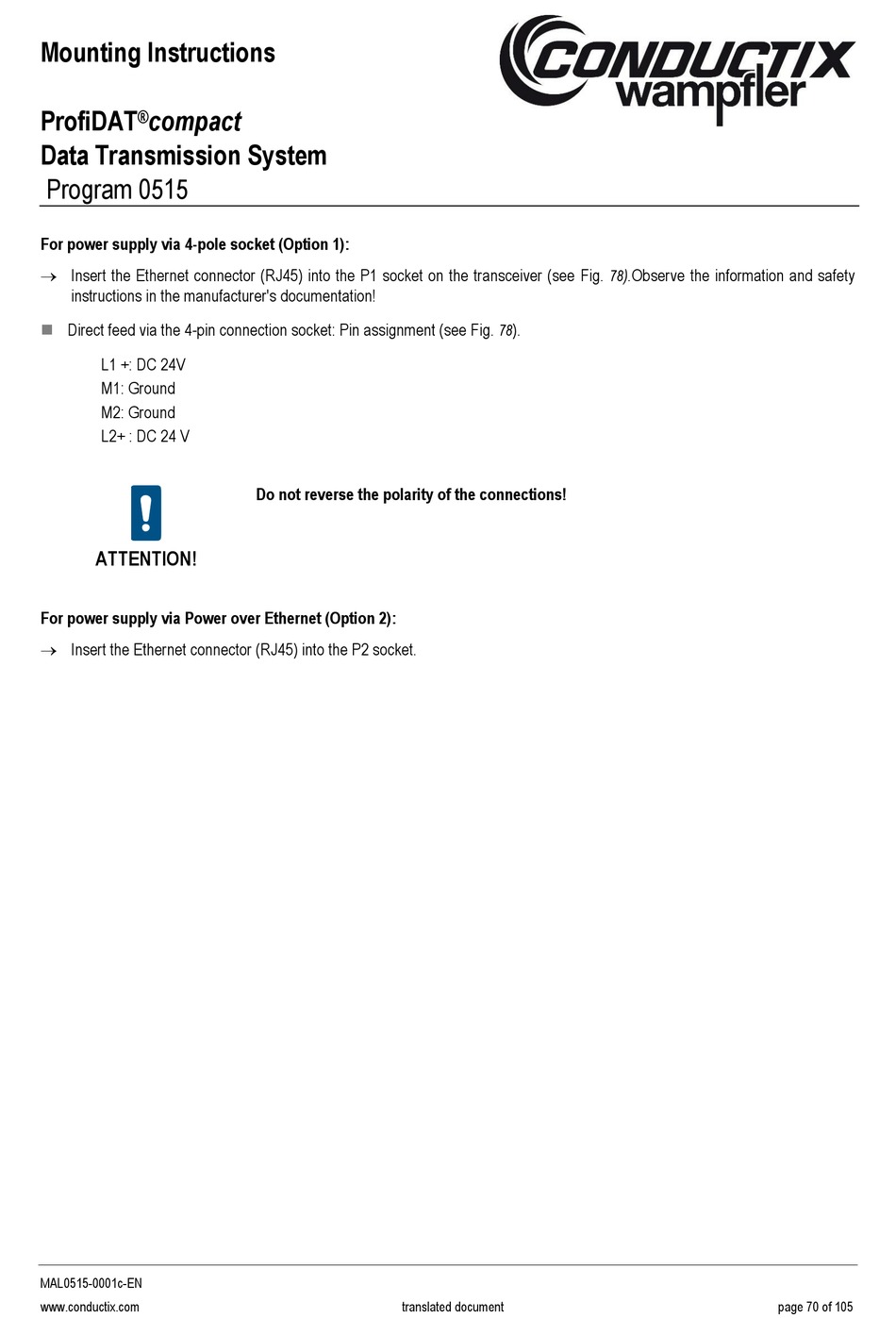

For power supply via 4-pole socket (Option 1):
 Insert the Ethernet connector (RJ45) into the P1 socket on the transceiver (see Fig.
instructions in the manufacturer's documentation!
 Direct feed via the 4-pin connection socket: Pin assignment (see Fig.
L1 +: DC 24V
M1: Ground
M2: Ground
L2+ : DC 24 V
ATTENTION!
For power supply via Power over Ethernet (Option 2):
 Insert the Ethernet connector (RJ45) into the P2 socket.
MAL0515-0001c-EN
www.conductix.com
Do not reverse the polarity of the connections!
translated document
).Observe the information and safety
