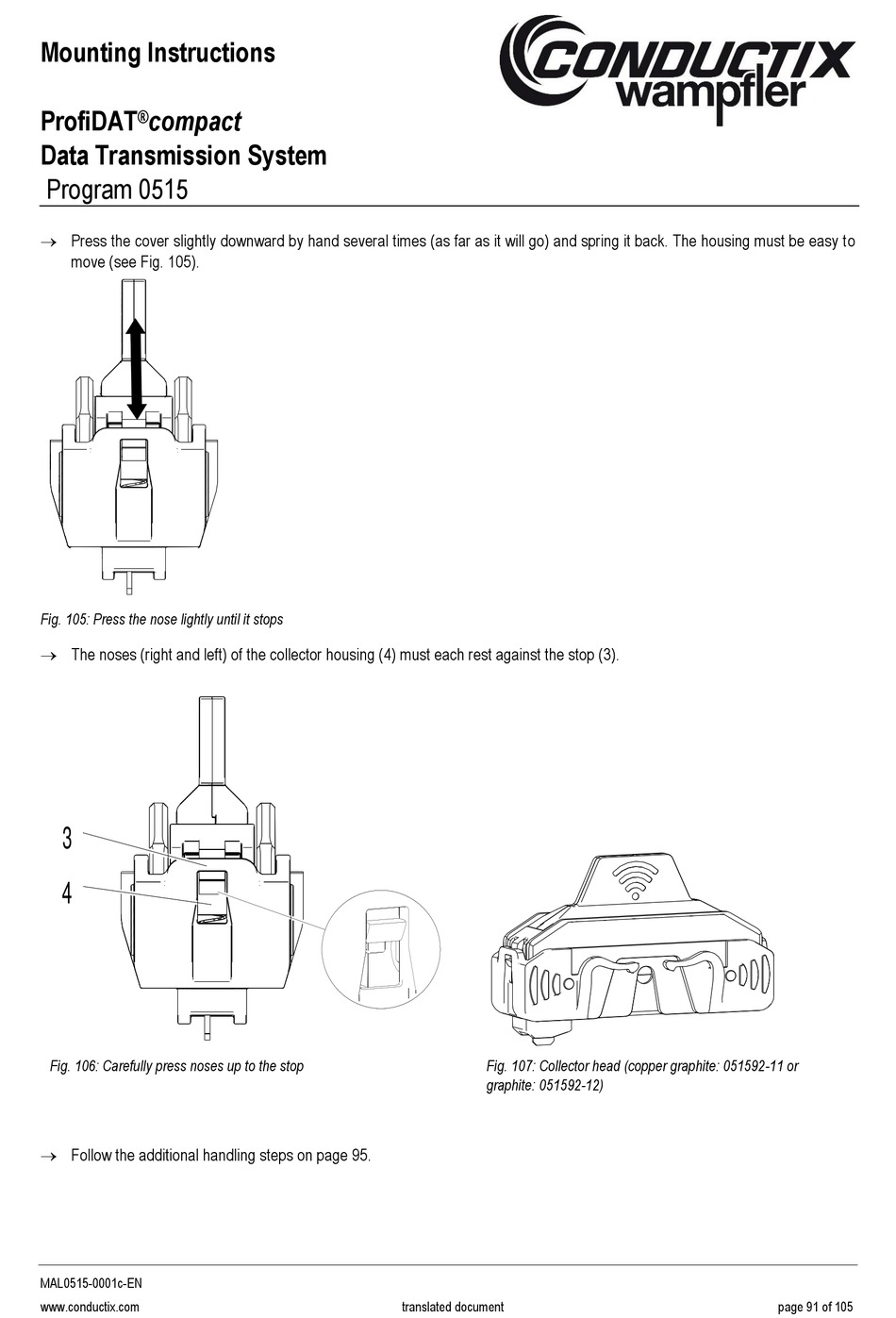

Conductix-Wampfler ProfiDAT compact Mounting Instructions page 91

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
 Press the cover slightly downward by hand several times (as far as it will go) and spring it back. The housing must be easy to
move (see Fig. 105).
Fig. 105: Press the nose lightly until it stops
 The noses (right and left) of the collector housing (4) must each rest against the stop (3).
3
4
Fig. 106: Carefully press noses up to the stop
 Follow the additional handling steps on page 95.
MAL0515-0001c-EN
www.conductix.com
Fig. 107: Collector head (copper graphite: 051592-11 or
graphite: 051592-12)
translated document page 91 of 105
