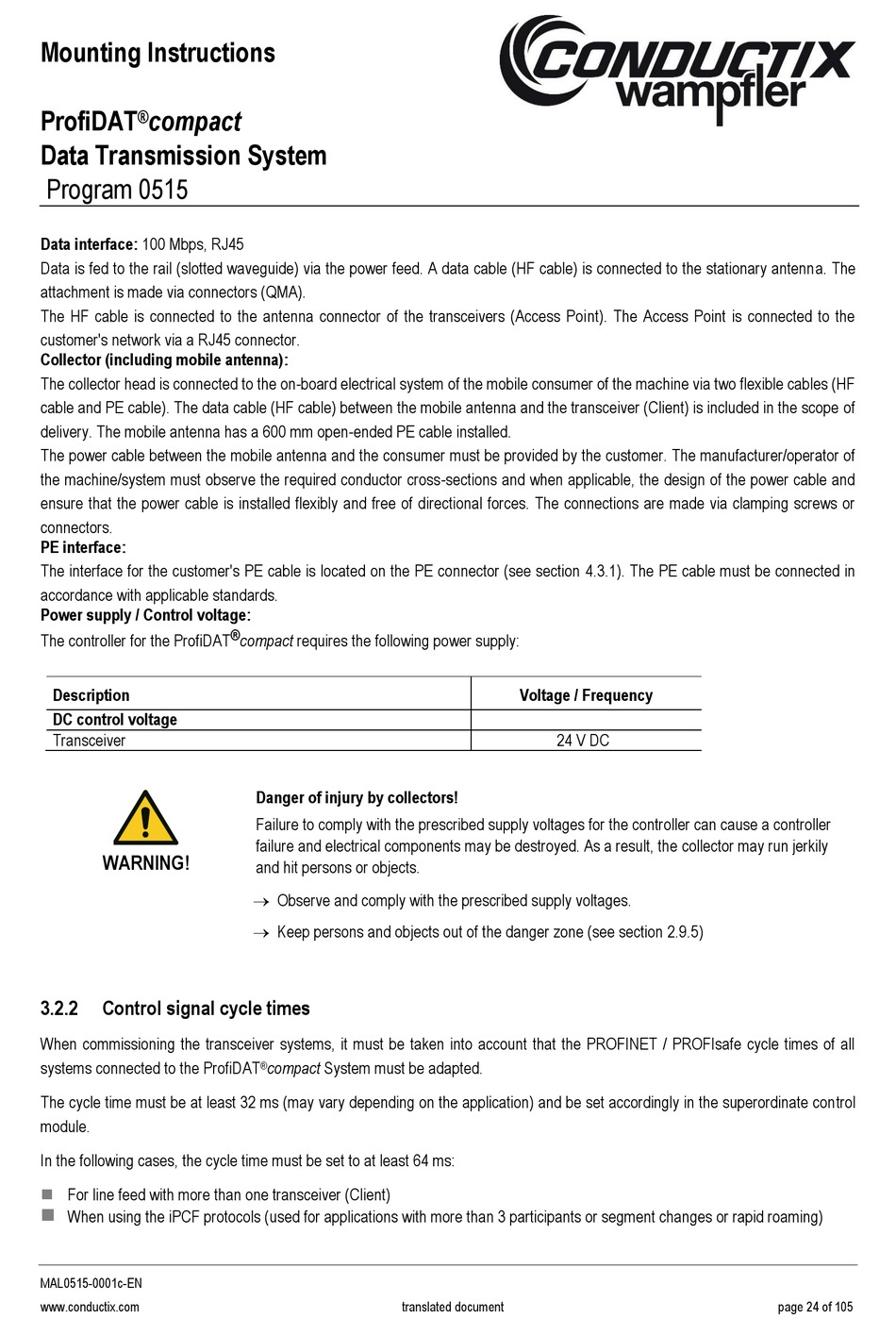

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Data interface: 100 Mbps, RJ45
Data is fed to the rail (slotted waveguide) via the power feed. A data cable (HF cable) is connected to the stationary antenna. The
attachment is made via connectors (QMA).
The HF cable is connected to the antenna connector of the transceivers (Access Point). The Access Point is connected to the
customer's network via a RJ45 connector.
Collector (including mobile antenna):
The collector head is connected to the on-board electrical system of the mobile consumer of the machine via two flexible cables (HF
cable and PE cable). The data cable (HF cable) between the mobile antenna and the transceiver (Client) is included in the scope of
delivery. The mobile antenna has a 600 mm open-ended PE cable installed.
The power cable between the mobile antenna and the consumer must be provided by the customer. The manufacturer/operator of
the machine/system must observe the required conductor cross-sections and when applicable, the design of the power cable and
ensure that the power cable is installed flexibly and free of directional forces. The connections are made via clamping screws or
connectors.
PE interface:
The interface for the customer's PE cable is located on the PE connector (see section 4.3.1). The PE cable must be connected in
accordance with applicable standards.
Power supply / Control voltage:
The controller for the ProfiDAT
Description
DC control voltage
Transceiver
WARNING!
3.2.2

Control signal cycle times

When commissioning the transceiver systems, it must be taken into account that the PROFINET / PROFIsafe cycle times of all
systems connected to the ProfiDAT
The cycle time must be at least 32 ms (may vary depending on the application) and be set accordingly in the superordinate control
module.
In the following cases, the cycle time must be set to at least 64 ms:
For line feed with more than one transceiver (Client)


When using the iPCF protocols (used for applications with more than 3 participants or segment changes or rapid roaming)
MAL0515-0001c-EN
www.conductix.com
®
compact requires the following power supply:
Danger of injury by collectors!
Failure to comply with the prescribed supply voltages for the controller can cause a controller
failure and electrical components may be destroyed. As a result, the collector may run jerkily
and hit persons or objects.
 Observe and comply with the prescribed supply voltages.
 Keep persons and objects out of the danger zone (see section 2.9.5)
compact System must be adapted.
®
Voltage / Frequency
24 V DC
translated document page 24 of 105
