4.3.2

Electrical components

Overview of electrical components

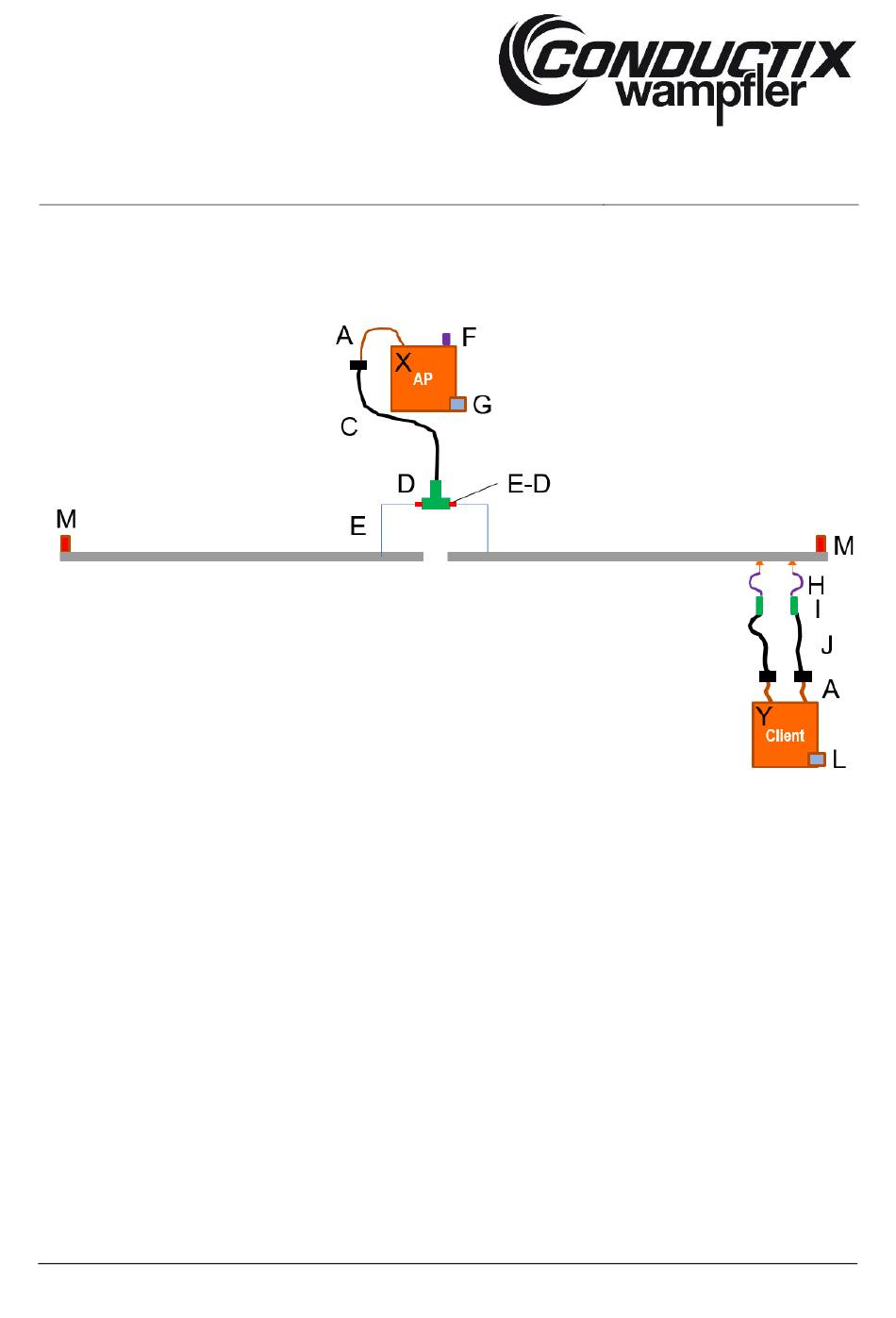

Fig. 11: Overview and arrangement of the electrical components, Example: Client with two antennas
®
A
ProfiDAT compact adapter cable with bushing
C Antenna connection cable
D Splitter
E Power feed connection cable
F RSMA terminating resistor
G Key-Plug Access Point / C-Plug Access Point
E-D Adapter N/connector - N/connector
M Terminating resistor 50 ohms / 6 GHz QMA
®
X
ProfiDAT compact Transceiver with 24 V supply cable, Access Point
®
Y
ProfiDAT compact Transceiver with 24 V supply cable, Client
H Mobile antenna
I Adapter N / N socket
J Antenna connection cable
L Key-Plug Client / C-Plug Client
