Technical Data For The Data Cable (Hf Cables); Operating Conditions - Conductix-Wampfler ProfiDAT compact Mounting Instructions

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515

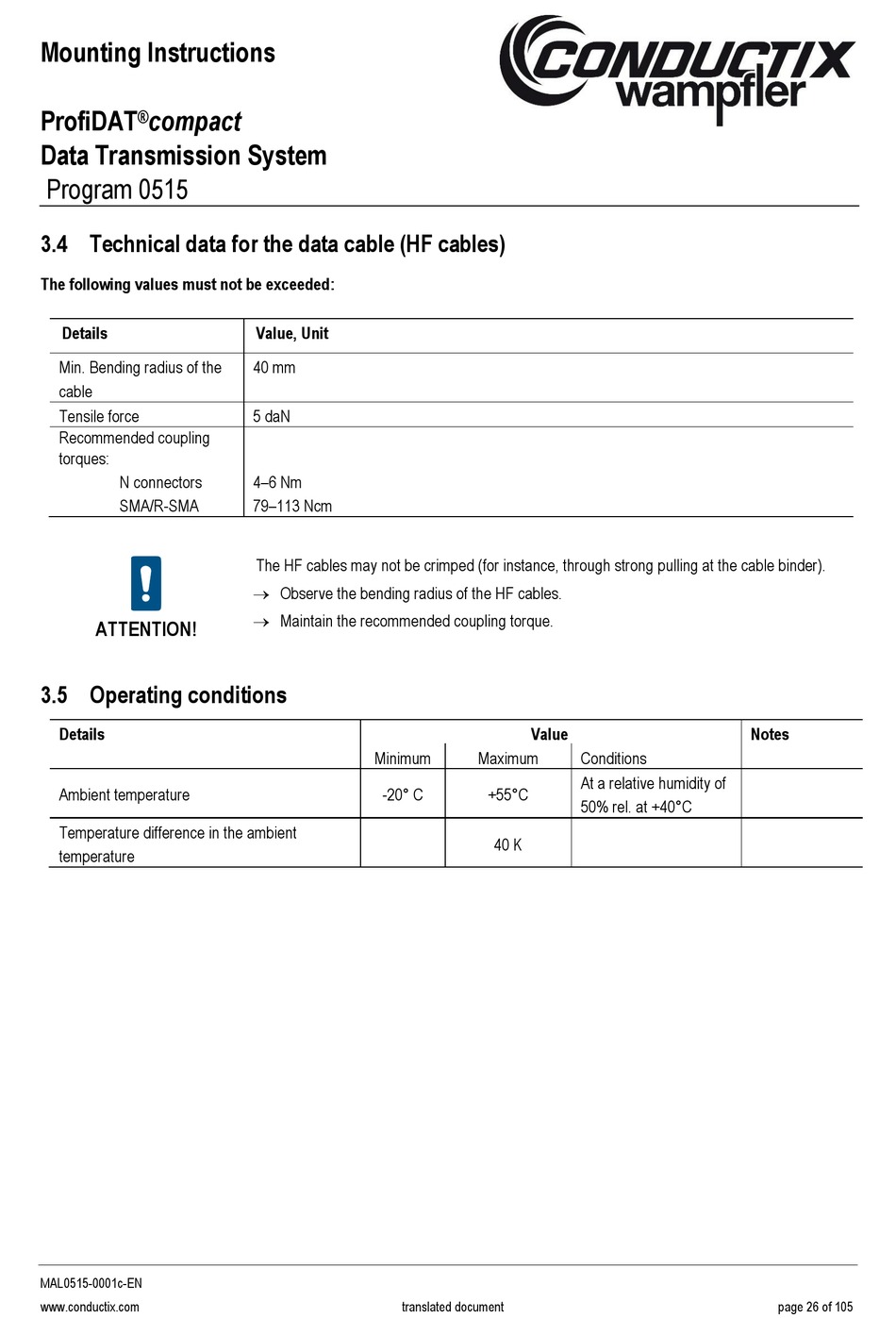

3.4 Technical data for the data cable (HF cables)

The following values must not be exceeded:
Details
Min. Bending radius of the
cable
Tensile force
Recommended coupling
torques:
N connectors
SMA/R-SMA
ATTENTION!

3.5 Operating conditions

Details
Ambient temperature
Temperature difference in the ambient
temperature
MAL0515-0001c-EN
www.conductix.com
Value, Unit
40 mm
5 daN
4–6 Nm
79–113 Ncm
The HF cables may not be crimped (for instance, through strong pulling at the cable binder).
 Observe the bending radius of the HF cables.
 Maintain the recommended coupling torque.
Minimum
-20° C
translated document
Value
Maximum Conditions
At a relative humidity of
+55°C
50% rel. at +40°C
40 K
Notes
page 26 of 105
