Mounting Instructions
ProfiDAT
compact
®
Data Transmission System
Program 0515

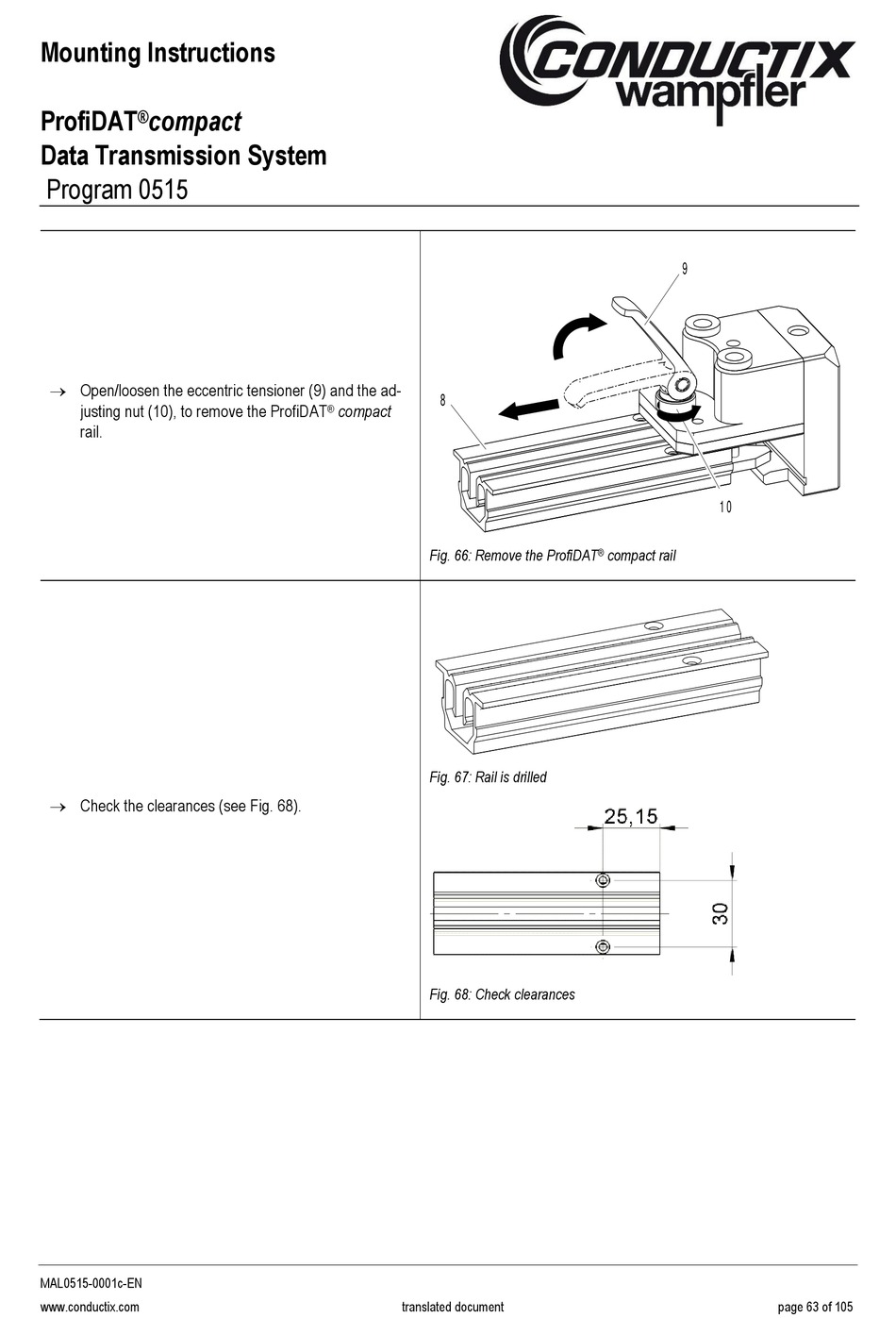

Open/loosen the eccentric tensioner (9) and the ad-
justing nut (10), to remove the ProfiDAT
rail.
Check the clearances (see Fig. 68).
MAL0515-0001c-EN
www.conductix.com
8
compact
®
Fig. 66: Remove the ProfiDAT
Fig. 67: Rail is drilled
Fig. 68: Check clearances
translated document
9
1 0
®
compact rail
page 63 of 105
