m a x . 2 0 m m
Fig. 75: Maximum height of the code tape

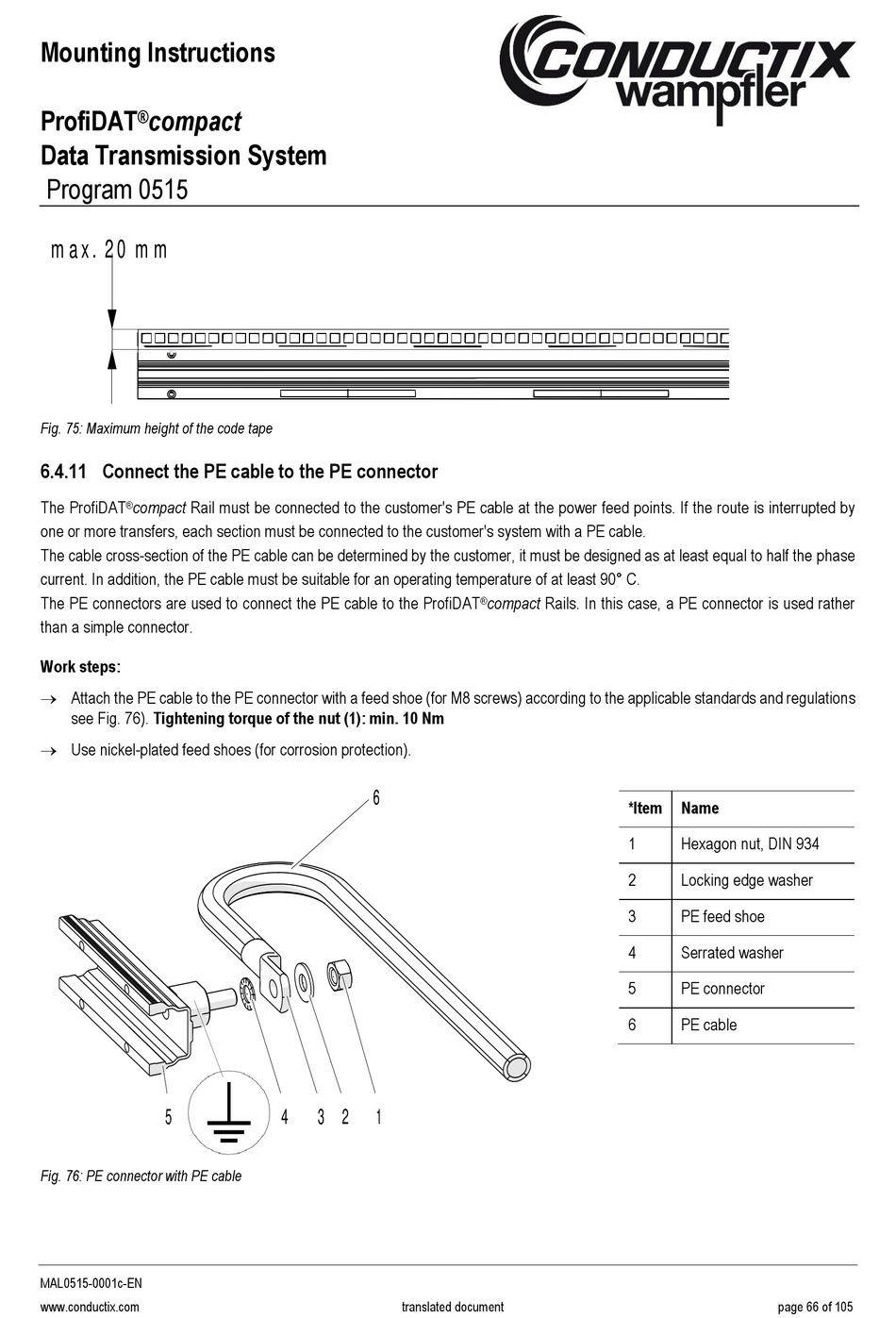

6.4.11 Connect the PE cable to the PE connector

The ProfiDAT compact Rail must be connected to the customer's PE cable at the power feed points. If the route is interrupted by
®
one or more transfers, each section must be connected to the customer's system with a PE cable.
The cable cross-section of the PE cable can be determined by the customer, it must be designed as at least equal to half the phase
current. In addition, the PE cable must be suitable for an operating temperature of at least 90° C.
The PE connectors are used to connect the PE cable to the ProfiDAT
than a simple connector.
Work steps:
 Attach the PE cable to the PE connector with a feed shoe (for M8 screws) according to the applicable standards and regulations
see Fig. 76). Tightening torque of the nut (1): min. 10 Nm
 Use nickel-plated feed shoes (for corrosion protection).
5
Fig. 76: PE connector with PE cable
MAL0515-0001c-EN
www.conductix.com
6
4 3 2 1
translated document
compact Rails. In this case, a PE connector is used rather
®
*Item
1
2
3
4
5
6
Name
Hexagon nut, DIN 934
Locking edge washer
PE feed shoe
Serrated washer
PE connector
PE cable
page 66 of 105
