Step 6:

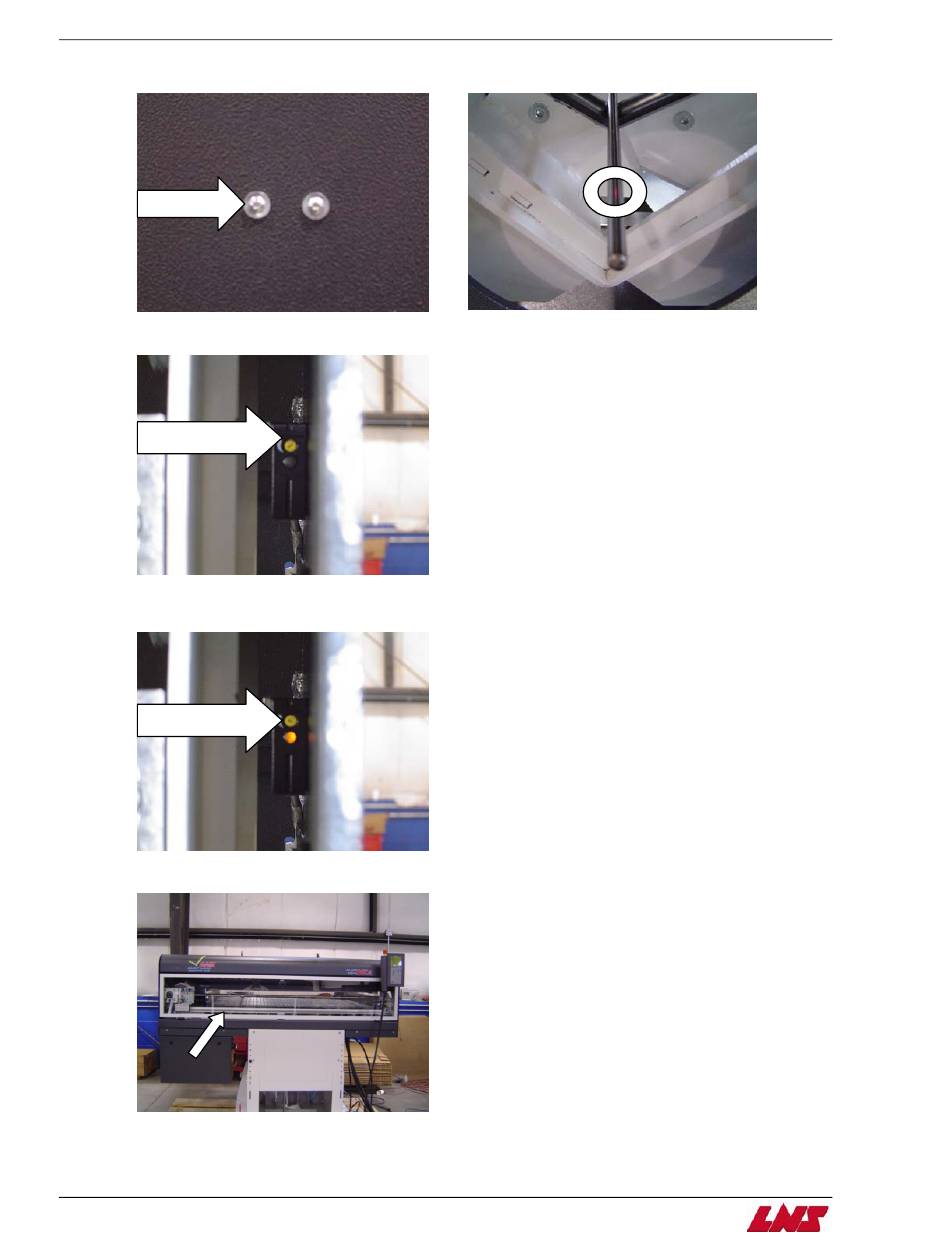

Loosen screws and adjust the cell so that the "red" sensor is reflecting off the center of the bar and tighten the cell down.
Front of bar feed
Step 7:
Turn the gain adjustment CCW to the minimum position.
Turn gain adjustment
off.
Step 8:
From the minimum position slowly turn the gain adjustment
the bar continue to turn the gain CW another ½ turn.
Turn gain adjustment
up until sensor is lit.
S
tep 9:
Remove the material from the v-channel and close the main access cover.
QUICK LOAD SERVO S3
Chapter 3: Procedures
CW until the sensor detects the bar. Once the sensor detects
