Diameter Adjustment Motor Replacement
Procedure:
Conditions:
Bar feed power on.
Bar feed in STOP mode.
Step 1:

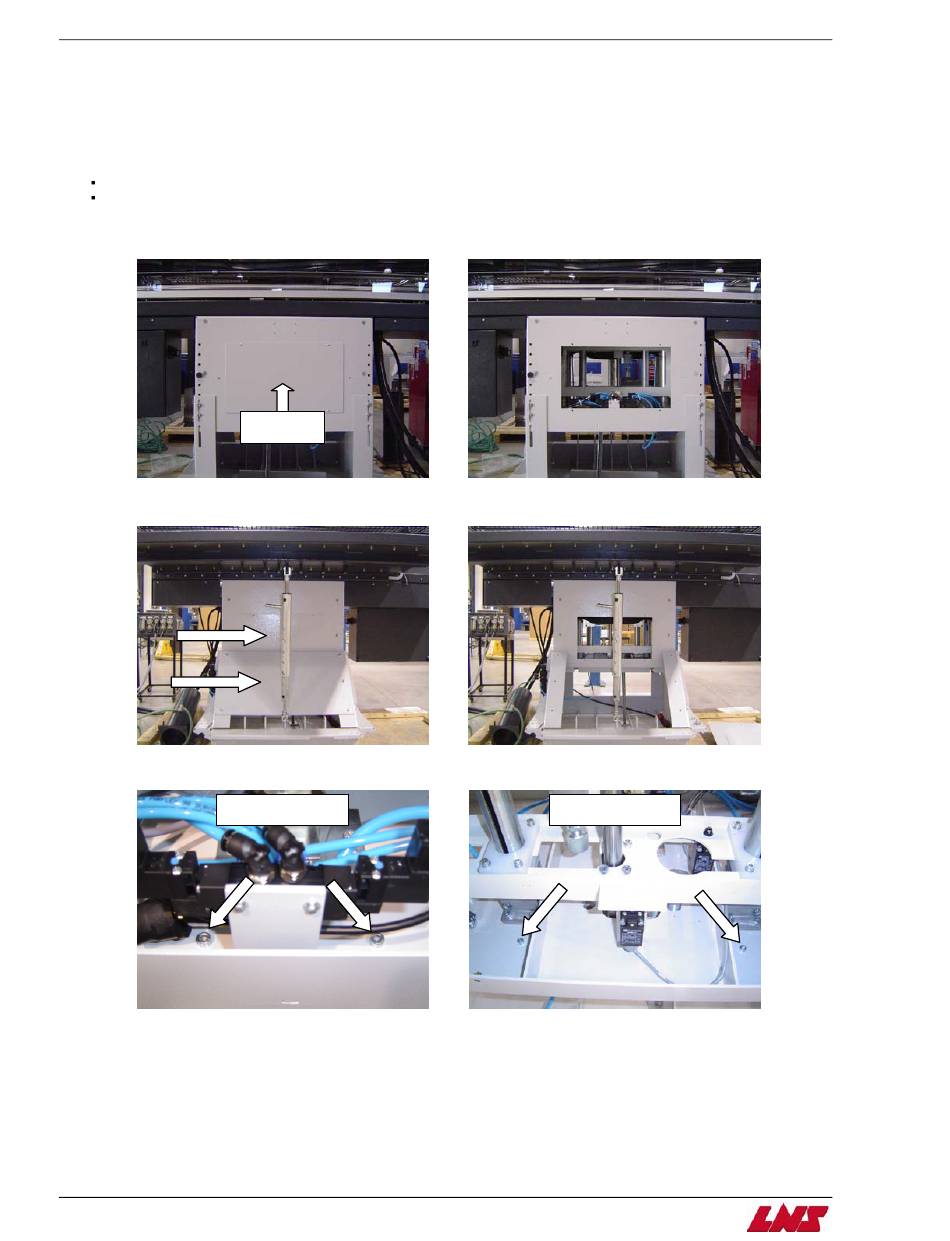

Remove the front panel on the sub-base.
Step 2:
Remove the two rear panels on the sub-base.
Step 3:
Remove the four screws holding on the chain guard cover plate.
View from front panel
QUICK LO AD SERVO S3
Front panel
Chapter 3: Procedures
View from rear panel
