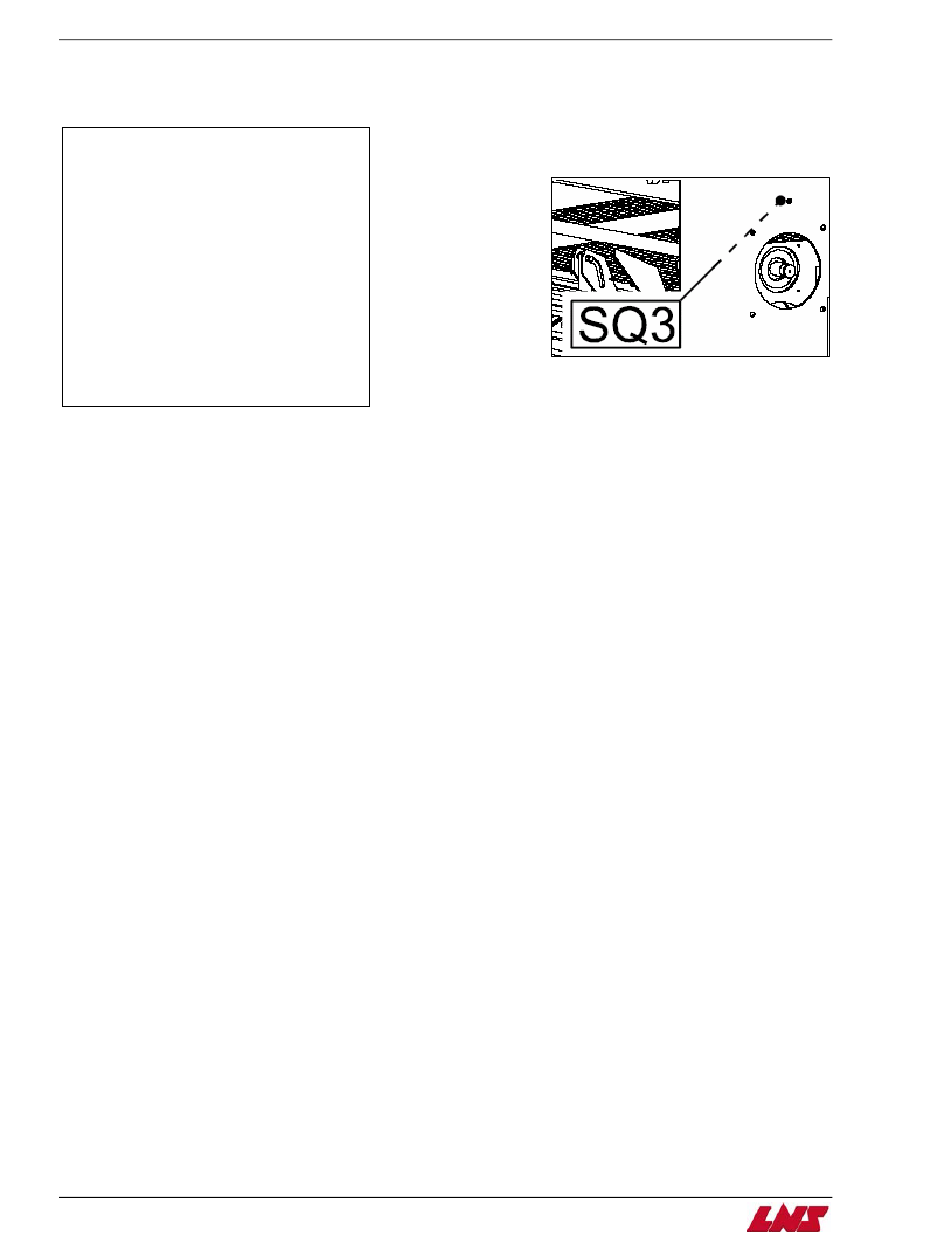

A049 – Measuring Cell SQ@ Is Activated Too Early
MEASURING CELL SQ@
IS ACTIVATED TOO
EARLY!
POSSIBLE CAUSES:
-BAR STOCK EXCEEDS
MAXIMUM SAFETY
LENGTH
-BAR STOCK LIMITERS
NOT IN CORRECT
LOCATION
Description:
The Measuring Cell SQ3 Activated Too Early alarm occurs if input (I1.2 – SQ3) is activated before maximum safety length has been
reached during bar measuring.
Solution:
Press the STOP key on the remote control station to clear the message and reset the alarm.
Press the MENU key.
Press the #5 (Service) key.
Enter the password (2534) to access the Service parameters.
Press the F3 (ENTER) key.
Press the F3 (ENTER) key again for Bar Feeder Setup Parameters.
Press the F4 (PAGE DOWN) key. Maximum Bar Stock Length
The value of this parameter should not exceed the length of the spindle in the lathe. If the value does exceed the length of
the spindle, enter the new value and readjust the mechanical limiter of the loading magazine to the correct distance.
Measure the length of the bar stock being run.
QUICK LOAD SERVO S3
A049
The length should not exceed the value set in this parameter.
Chapter 1: Alarms
