Designation
A
B
C
M1
M2
QS1
SQ1
SQ2
SQ3
SQ4
SQ5
SQ10
SQ11
SQ12

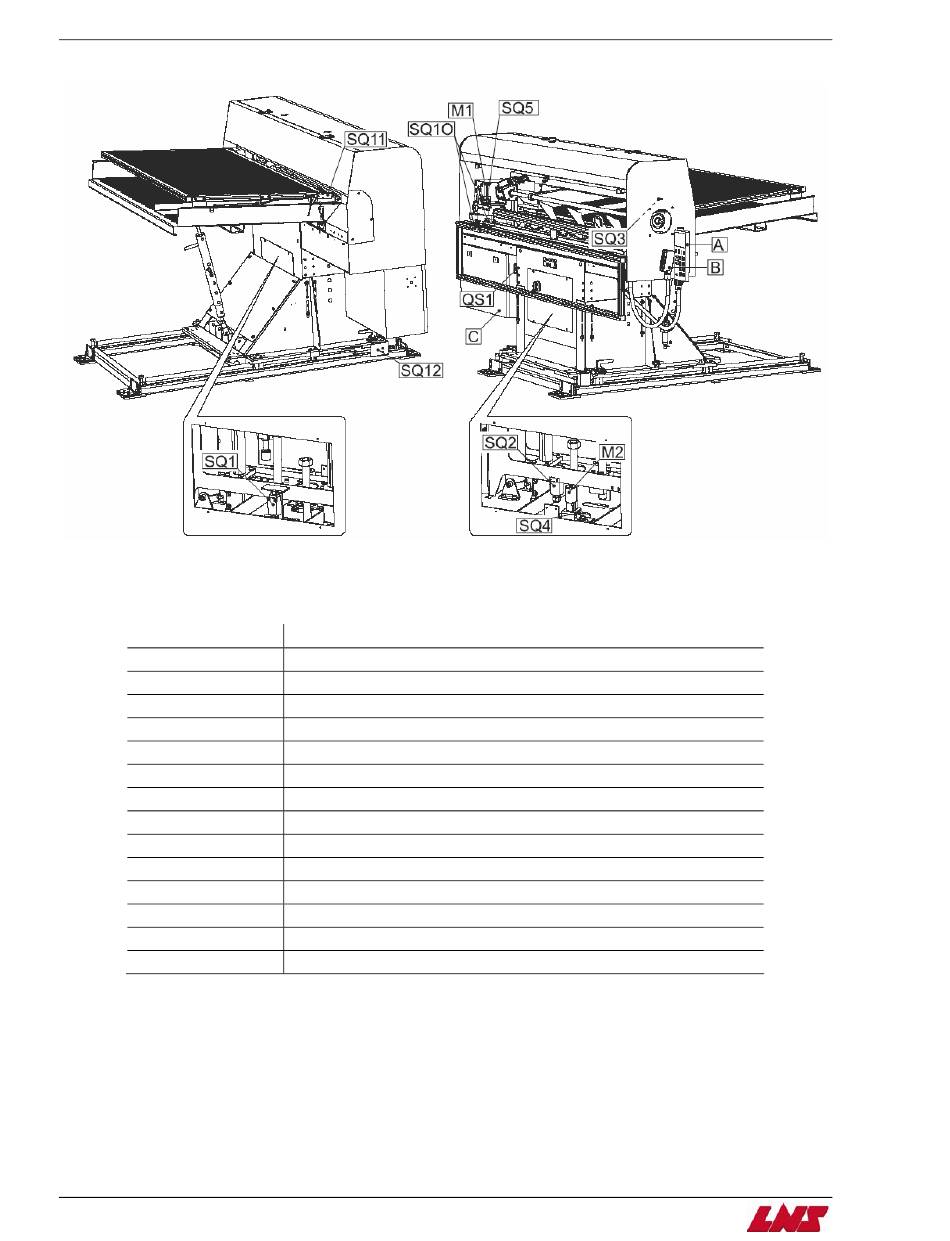

QUICK LOAD SERVO S3
Description
Remote control station
24 pin connector with cover (depending on interface)
Control cabinet
Servo motor
Motor for diameter adjustment
Main disconnect switch
Loading channel upper position switch
Loading channel lower position switch
Measuring cell
Proximity switch for diameter adjustment
Home position proximity switch
Main access cover safety switch
Magazine grid cover safety switch
Retraction system in position switch / key
Chapter 1: Alarms
Advertisement
Table of Contents
Need help?
Do you have a question about the QUICK LOAD SERVO S3 and is the answer not in the manual?
Questions and answers
LNS BARFEEDER sps no response , how do i fix this error
The SPS No Response alarm on the QUICK LOAD SERVO S3 occurs due to a communication problem between the remote control station and the LNS PLC. To fix this error:
1. Check the connectors between the PLC and the remote control station inside the cross piece to ensure they are correctly attached.
2. Verify continuity between the PLC and the remote control station.
These steps help restore proper communication and resolve the error.
