Chapter 3: Procedures

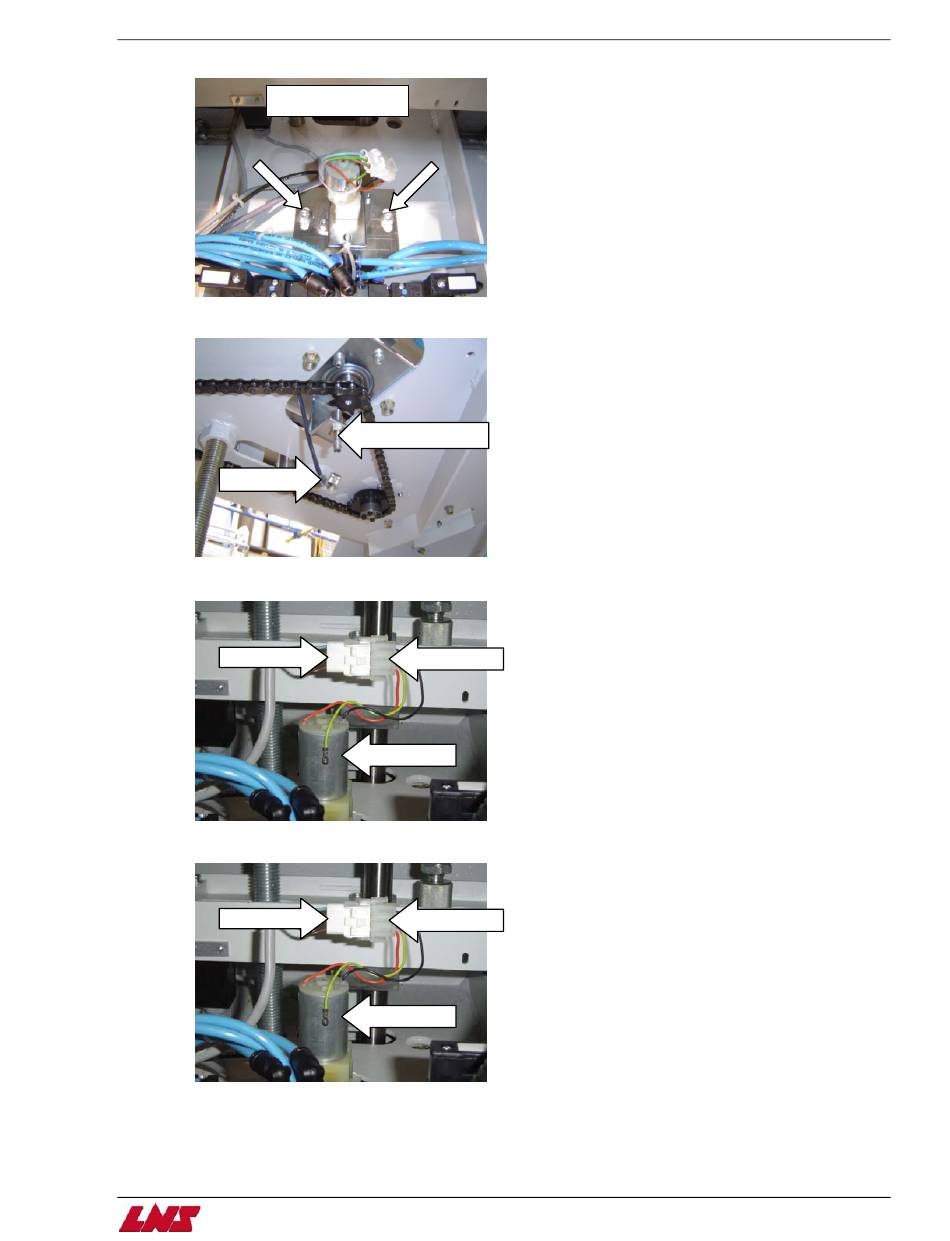

Step 4:
Remove the two screws holding on the adjustment motor.
View from front panel
Step 5:
Disconnect the SQ4 cable from the mounted proximity switch.
SQ4 cable
Step 6:
Disconnect the M2 cable from the XP1 connector and remove t
Cable M2
Step 7:
Insert the new motor and connect the M2 cable to the XP1 connector.
Cable M2
Mounted prox. switch
he bad motor.
XP1 connector
Bad motor
XP1 connector
New motor
3 - 1 5
QUICK LOAD SERVO S3
