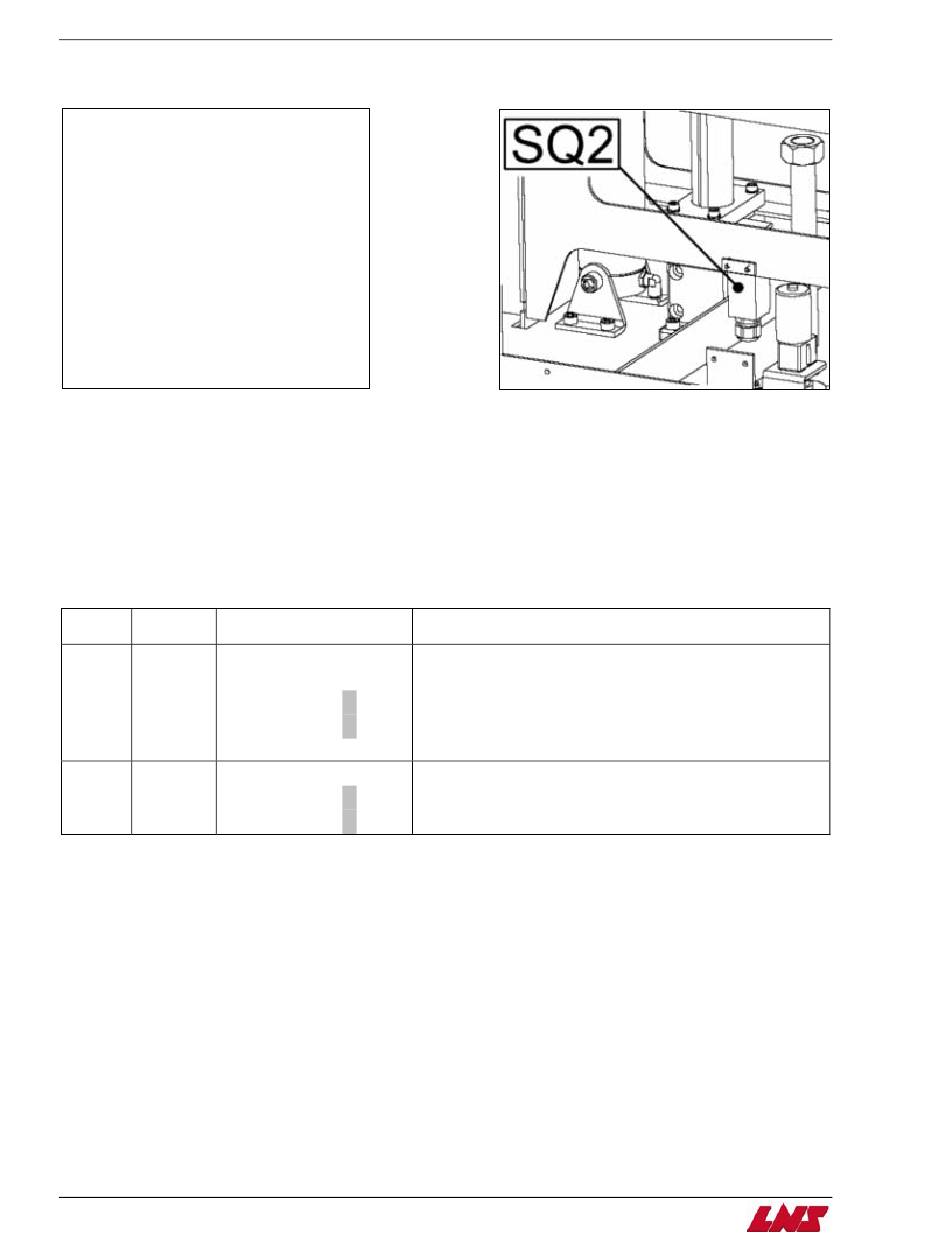

Loading Channel Upper Motion Default
LOADING CHANNEL
UPPER MOTION
DEFAULT!
POSSIBLE CAUSES:
-UPPER POSITION
SWITCH SQ2 DEFECTIVE
OR MIS-ADJUSTED
-MECHANICAL OBSTACLE
-PNEUMATIC PROBLEM
-MOTION INTERRUPT
Description:
The Loading Channel Upper Motion Default alarm occurs if the loading channel moves to the upper position and input (I1.1 – SQ2)
does not turn on within 10 seconds, output (Q4.1 – YV1B) is still active and input (I1.0 – SQ1) is inactive.
Solution:
Press the HELP key on the remote control station. Press the F4 key (Page Down icon) twice.
Case
Input
Remote Pendant
1
Bit 1 = 0
2
Bit 1 = 1
QUICK LOAD SERVO S3
•
•
MODULE 1
•
76543210
10
•
MODULE 1
Alarm needs to be cleared. Press the STOP key on the
76543210
remote control station to clear the message and reset
the alarm.
10
Solution
Check the functionality of the lifting cylinders.
Check for air leaks on the air valve assembly.
Check the adjustment of upper position switch
SQ2.
Check the functionality of upper position switch
SQ2.
Chapter 1: Alarms
