Servo Motor Belt Tension Adjustment
Procedure:
Conditions:
Bar feed power off.
Bar feed in STOP mode.
Step 1:

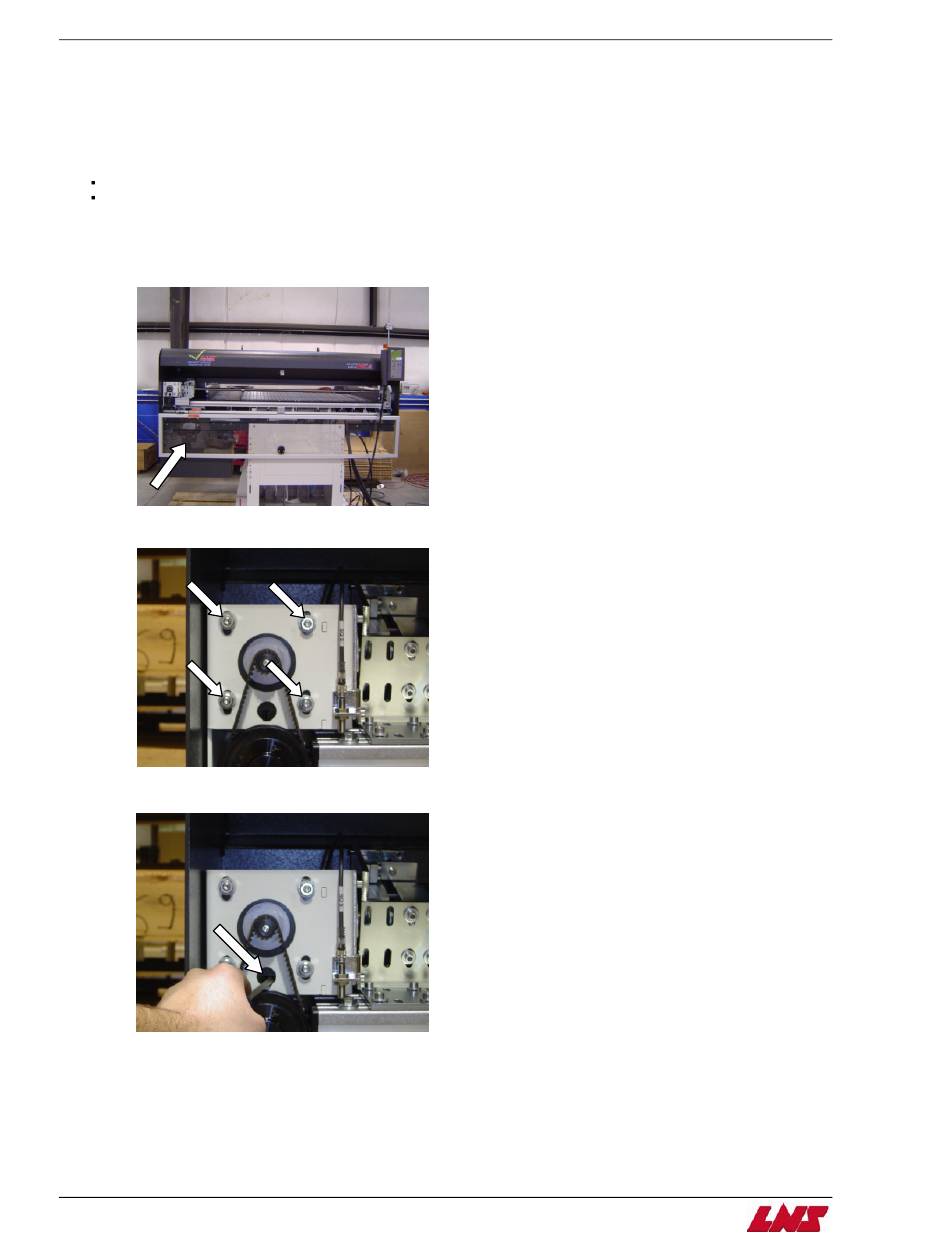

Open the main access cover.
Step 2:
Loosen the four nuts on the motor mount plate.
Step 3:
Using a lever (ex. screwdriver), raise the motor to create tension on
QUICK LOAD SERVO S3
Chapter 3: Procedures
the belt.
