Chapter 3: Procedures
Step 5:

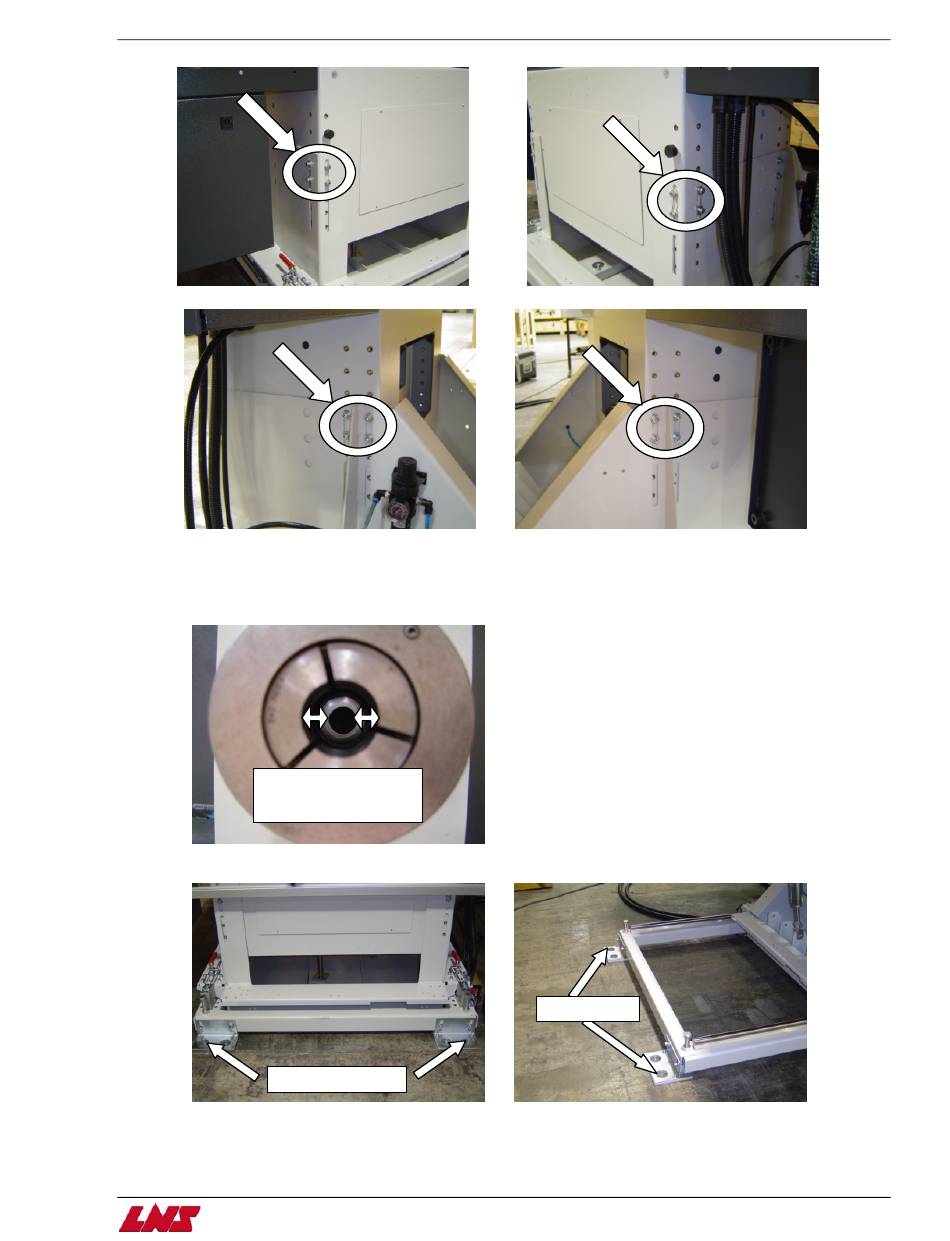

Once the pusher is centered up and down, tighten the 16 screws to secure unit and recheck the level of the unit.
Step 6:
Align the unit side to side by centering the pusher in the back of the spindle and then extending the pusher to the back of
the collet and centering it there. Adjust the rear of the bar feed when centering to the rear of the spindle and the front of the
bar feed when centering to the rear of the collet. Once the pusher is centered at the back of the collet recheck the
alignment at the back of the spindle by pulling the pusher back. Continue until the pusher is centered at the rear of the
spindle and the rear of the collet.
Pusher should be aligned
horizontal to the spindle and
the back of the collet
Step 7:
Once the bar feed has been aligned, anchor it using the ½ inch anchor bolts supplied with the unit.
Anchor here
Anchor here
QUICK LOAD SERVO S3
3 - 5
