Software Update
Restore PLC Program from Memory Card to PLC – v1.17a
*YOU WILL NEED TO RECORD YOUR PARAMETERS BEFORE PERFORMING THIS PROCEDURE.
The current parameter settings will not be saved. The parameters will need to be reprogrammed after the PLC program has been
restored.
Procedure
Step 1: Turn off the power to the bar feed.
Step 2: Make sure the RUN/STOP switch on the PLC is in the RUN position.

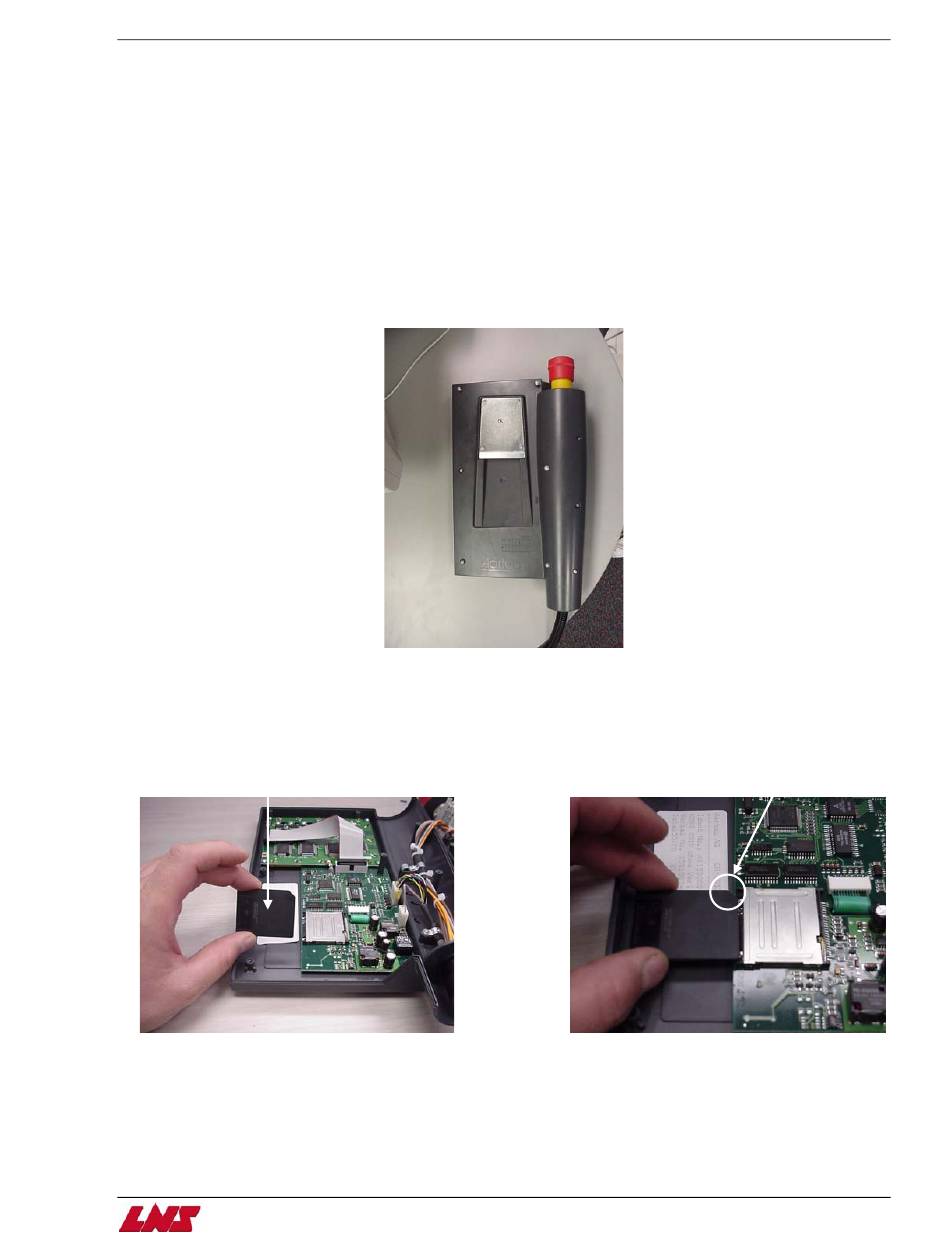

Step 3: Remove the 9 screws on the back of the pendant, and then carefully separate the back half from the front half.
Step 4: Once the 2 halves are separated insert the Smart Media card (solid back side facing up and chamfered edge away from you)
into the slot.
Black side
Chamfered edge
facing up
away from you
