Chapter 3: Procedures

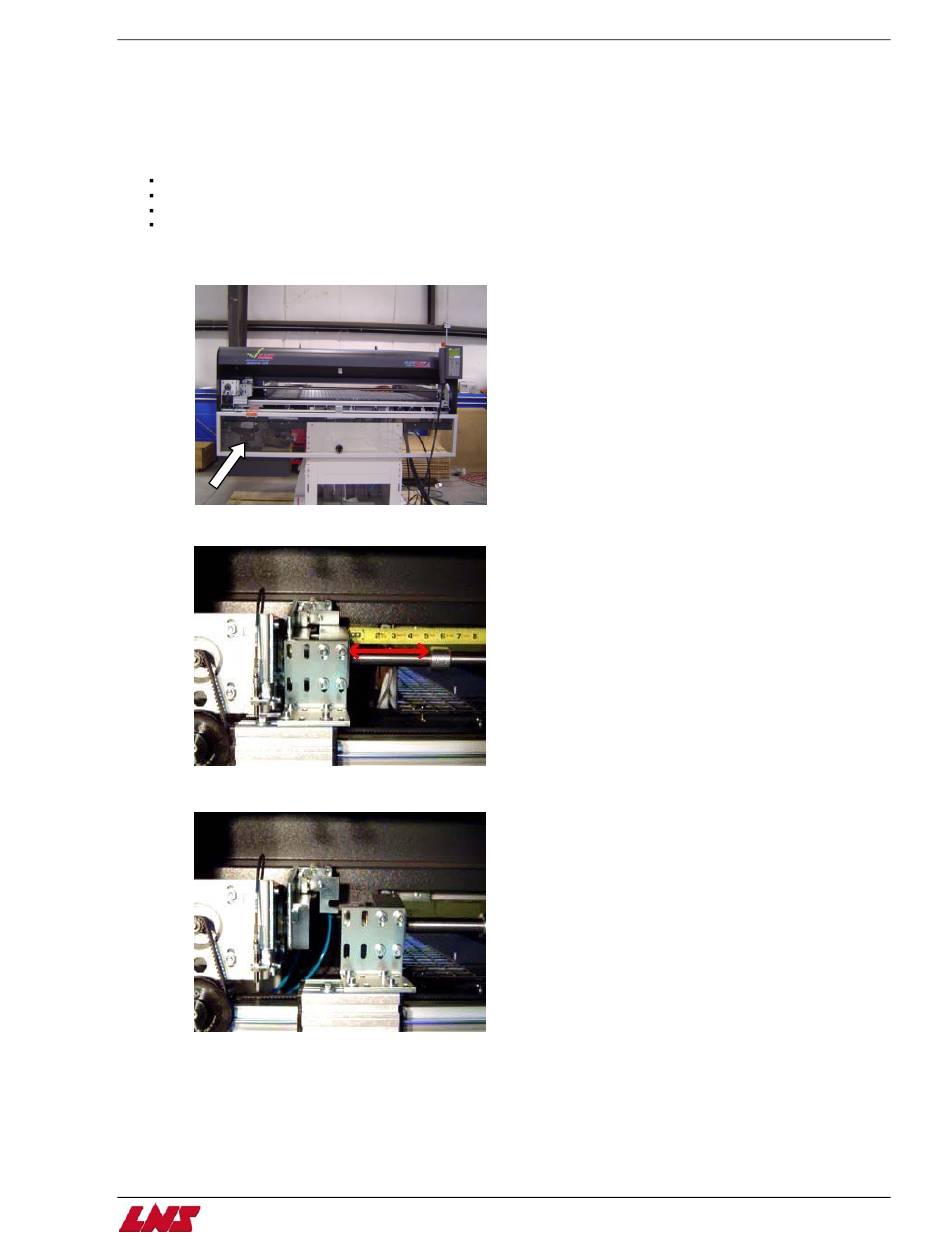

Pusher Changeover
Procedure:
Conditions:
Bar feed power on.
V-channel in the lower position.
Pusher at the mechanical home position against the reference plate.
Bar feed in STOP mode.
Step 1:
Open the main access cover.
Step 2:
Measure the distance of the End-of-Bar bushing.
Step 3:
Pull the carrier away from the home position.
3 - 7
QUICK LOAD SERVO S3
